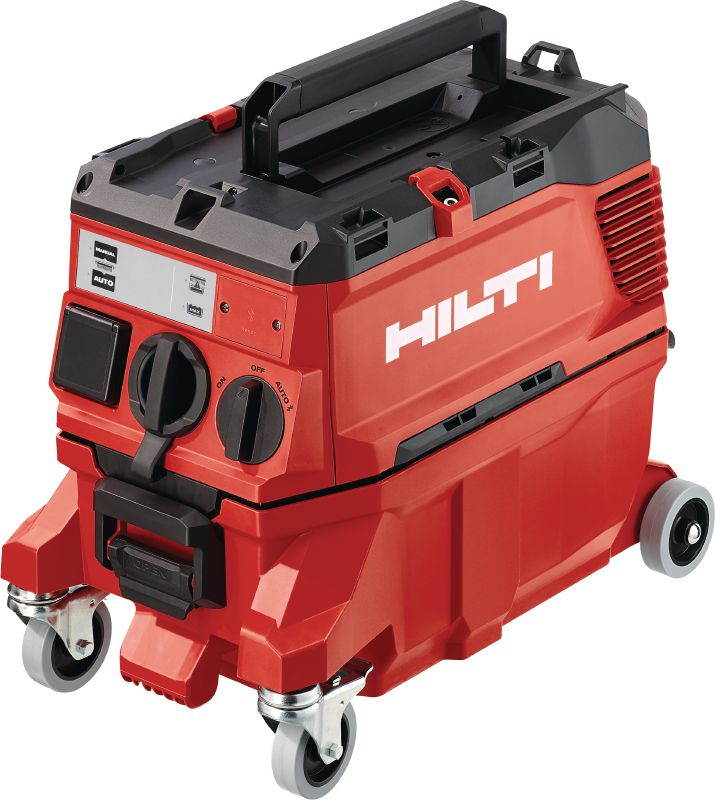

VC 20L-X L-Class dust extractor
Dust extractor VC 20LX 220-240V #2411680
Powerful dust extractor for connection with power tools and jobsite clean ups (wet & dry), 15l tank
- Air Flow Motor Alone: 74 l/s
- Air Flow at Hose End: 39 l/s
- Max. Vacuum: 24.5 kPa
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Air Flow Motor Alone
74 l/s
Air Flow at Hose End
39 l/s
Max. Vacuum
24.5 kPa
Water capacity
9 l
Dust capacity
15 kg
Dust class
L
Application
Cleaning, Drilling and breaking, Wood sawing, Cutting and grinding (light, up to 125 mm / 5 in), Drywall and wood sanding, Wet coring, Socket cutting
Integrated power socket
Yes
Max socket output power
1200 W
Power source
Corded
Rated input power
1200 W
Suction capacity
74 l/s
Supply cord length
7000 mm
Dimensions (LxWxH)
530 x 290 x 415 mm
Weight according to EPTA-Procedure 01/2003 without battery
11 kg
Features & Applications
Features
- Sturdy wet/dry dust extractor – built to handle dust extraction and clean-ups in the toughest jobsite conditions
- Designed for agility – compact and light enough to move easily around all construction sites
- Automatic filter cleaning – adaptive filter cleaning maintains consistent suction performance and activates only when necessary, helping reduce noise and work interruptions
- Increased versatility – simply attach your VC 20L-X vacuum top to a VC continuous bag system for more capacity and faster bag swaps to match your application
- Easy organisation and transport – keep your gear stored with built-in accessories, including bungee cords for hose and power cable storage and an optional soft bag for spare filters and more
Applications
- Dust extraction from grinding, cutting, slitting, drilling and dry-coring tools
- Wet and dry cleaning
- Removing slurry during wet coring applications
- L-Class vacuum – for capturing 99% of dust with a grain size under two microns
