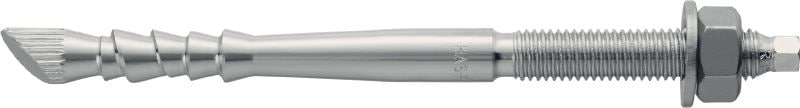

HAS-RTZ Anchor rod

Ultimate-performance anchor rod for adhesive capsules in cracked concrete (A4 stainless steel)

Material, corrosion: Stainless steel, A4
Environmental conditions: Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Base materials: Concrete (cracked), Concrete (non-cracked)

Choose options

Anchor size - D

Anchor length - L

124 mm
251 mm
269 mm

Material composition

Steel, A4 (SS316)

Head configuration

Externally threaded

Pack size

4 pc
5 pc
10 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 162.83

Technical Data

Material, corrosion

Stainless steel, A4

Environmental conditions

Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution

Base materials

Concrete (cracked), Concrete (non-cracked)

PROFIS Software

Yes

Approvals / Test reports

BZS/shock, ETA, Fire

Type of fixing

Pre-fastening

Documents

Features & Applications

Features

High-performance capsule anchor
Minimal sensitivity to cracked concrete (tension zone)
Minimal sensitivity to dynamic loads
Minimal sensitivity to application irregularities
Highly flexible solution

Applications

Suitable for fastenings in cracked concrete in combination with Hilti HVU-TZ capsules

For approval or certificate information, please see individual items.
