HZA-R Tension anchor
New productItem #r3220
Tension anchor (stainless steel and rebar)
- Material, corrosion: Stainless steel, A4
- Drill bit diameter: 32 mm
- Environmental conditions: Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Features
- Reliable design in accordance with the rebar calculation method (DIN 1045-1: 2001-07).
- Reliable installation
- Allows maximum tensile load transfer with minimum spacing and edge distances in cracked and uncracked concrete by creating a rebar splice with the existing reinforcement
- Maximum tensile loads with short spacing and edge distances
Applications
- Building expansion
- Slab and wall extension
- Extension or reinforcement of supporting formwork

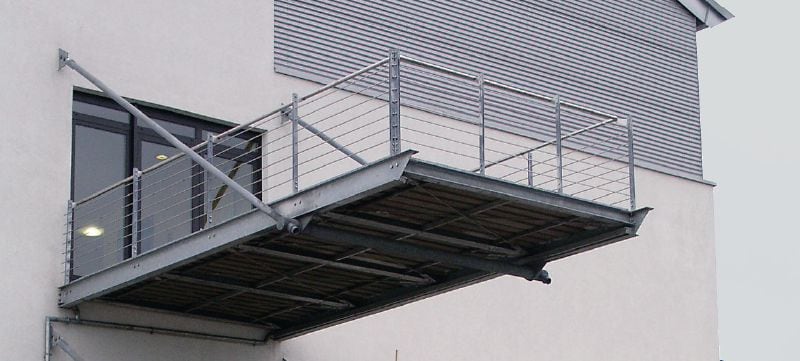

- Connector for balconies and canopies
- Closing temporary openings
For approval or certificate information, please see individual items.
