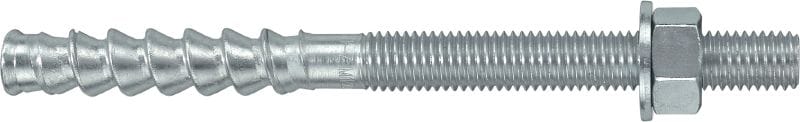

HIT-Z Anchor rod

Ultimate-performance anchor rod for injectable hybrid anchors (carbon steel)

Material composition

Anchor size - D

Anchor length - L

Head configuration

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Environmental conditions

Dry indoor

Base materials

Concrete (cracked), Concrete (non-cracked)

PROFIS Software

Yes

Approvals / Test reports

ETA, ICC-ES report (concrete), Seismic

Cleaning procedures

Non Cleaning

Type of fixing

Pre-fastening, Through-fastening

Suitable for very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
No hole cleaning may be required (above 5°C/ 41°F) with HIT HY 200
More reliable and productive solution thanks to potential elimination of the hole cleaning process
Variable depth of embedment to fully utilize the anchor capacity
Head marking for easy verification of rod length, even after installation

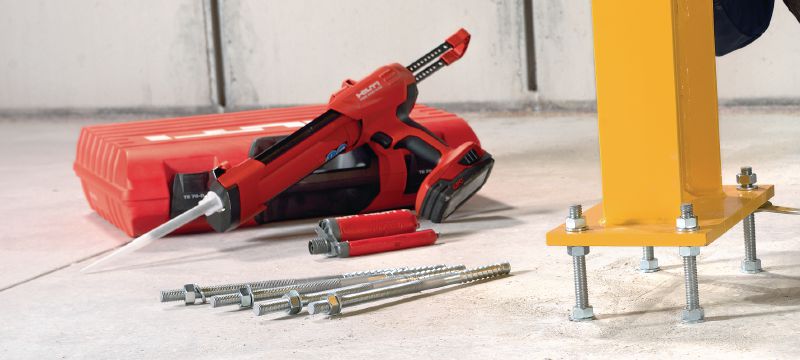

Fastenings in cracked and uncracked concrete made with Hilti HIT-HY 200
Seismic anchoring applications (e.g. bracing of reinforced concrete buildings)

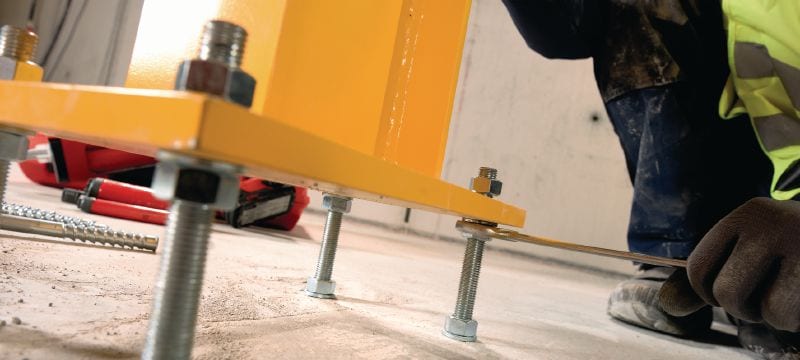

Anchoring structural steel connections (e.g. steel columns, beams)
Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
Anchoring safety barriers, balustrades, fire escape staircases

For approval or certificate information, please see individual items.
