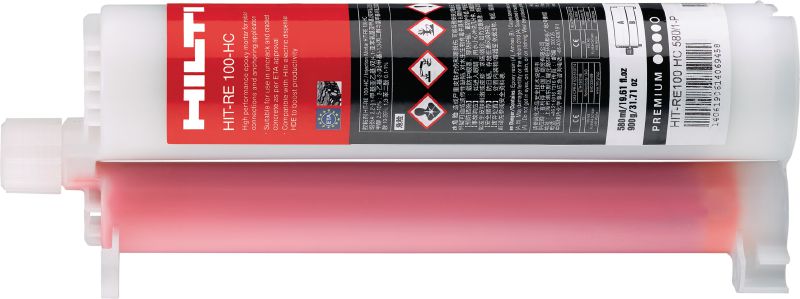

HIT-RE 100-HC Epoxy anchor
High-performance injectable epoxy mortar with ETA approvals for anchoring and rebar connections in concrete
- Base materials: Concrete (cracked), Concrete (non-cracked)
- Base material condition (as per approval): Dry, Wet
- Approvals / Test reports: ETA, Fire
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 21.48
Technical Data
Base materials
Concrete (cracked), Concrete (non-cracked)
Base material condition (as per approval)
Dry, Wet
Approvals / Test reports
ETA, Fire
PROFIS Software
Yes
Anchoring elements
HAS-U threaded rods
Cleaning procedures
Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Manual Cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 70 °C
Free of styrene
Yes
Documents
Features & Applications
Features
- Formulated to minimize waste – more economical due to the large cartridge size and fewer discarded pulls required to prime dispenser
- Engineered for higher performance in cracked and uncracked concrete

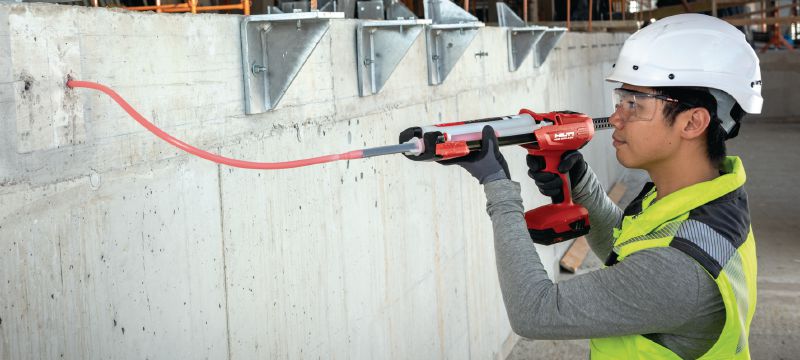

- Compatible with Hilti cordless dispenser to help boost jobsite productivity
- Extended working time allows great flexibility in installation
- Extensive range of accessories available (e.g. piston plugs, brushes and overhead wedges) to support different installation
Applications

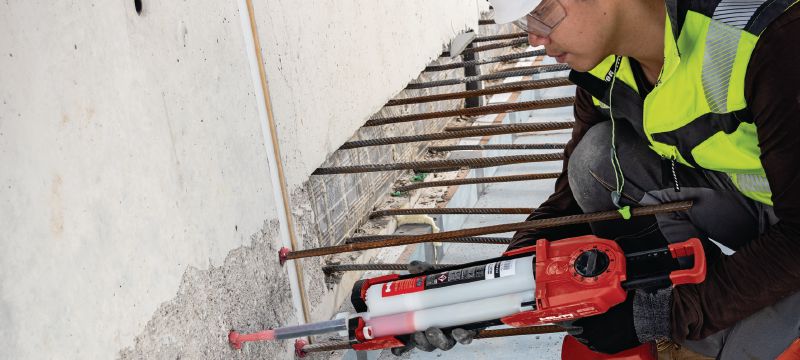

- Rebar doweling / connection of secondary post-installed rebars
- Substitution of misplaced / missing rebar
- Building retrofitting and rehabilitation
- Adding additional floor slabs
- Anchoring structural steel connections (e.g. steel columns, beams)
For approval or certificate information, please see individual items.
