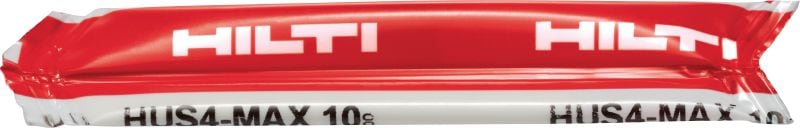

HUS4-MAX Hybrid Screw Anchor Capsule

Capsule for use with screw anchors for secondary steel base plate

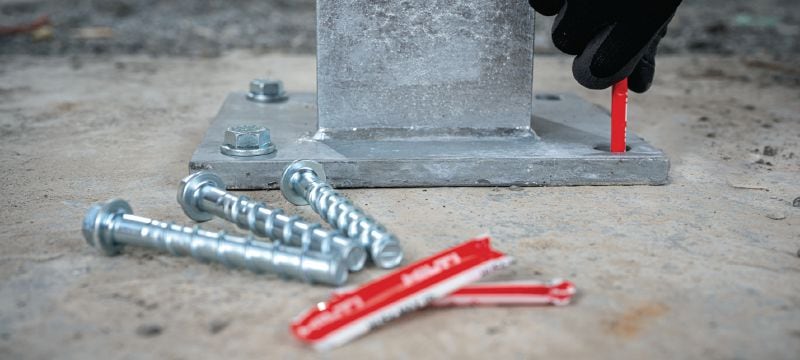

Hybrid screw anchor anchor setting application.

Ultimate-performance foil capsule for fast and economical heavy-duty anchoring in concrete using HUS4 screw anchors

Environmental conditions: Outdoor
Approvals / Test reports: ETA, Fire, Seismic
Seismic loading: Yes

Choose options

Anchor size - D

10 mm
12 mm
14 mm

Pack size

32 pc
50 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Environmental conditions

Outdoor

Approvals / Test reports

ETA, Fire, Seismic

Seismic loading

Yes

Base materials

Concrete (non-cracked)

Base material condition (as per approval)

Dry

Installation direction

All

Drilling method

Rotary

Tested/approved for diamond drilling

SAFEset

Yes

Cleaning procedures

Manual Cleaning

Installation tools

TE 6-22 Cordless rotary hammer, SIW 6-22 ½” Cordless impact wrench

Removable

Yes

In-service temperature – range

-40 - 120 °C

Storage and transportation temperature range

5 - 25 °C

PROFIS Software

Yes

Documents

Features & Applications

Features

Up to 4x faster than conventional injectable mortars – two-step installation with no cleaning, shallower embedment, smaller diameters and immediate loading help you save time on every single fastening
Easier and faster to install compared to traditional chemical anchors – HUS4-MAX achieves the tension resistance of traditional chemical anchors, without cleaning requirements
Extensive applications covered combined with HUS4 screws – ETA (EAD 332795) with seismic C1 and C2 (with carbon steel HUS4 screws) and cracked and uncracked concrete and fire resistance for all steel types
Screw anchor can be adjusted or removed even if the capsule was used

Applications

Structural baseplates to concrete using HUS4 screw anchors (size 10-16)
Safety relevant and designed secondary steel, platforms, staircases, balconies and industrial equipment to concrete using HUS4 screw anchors

For approval or certificate information, please see individual items.
