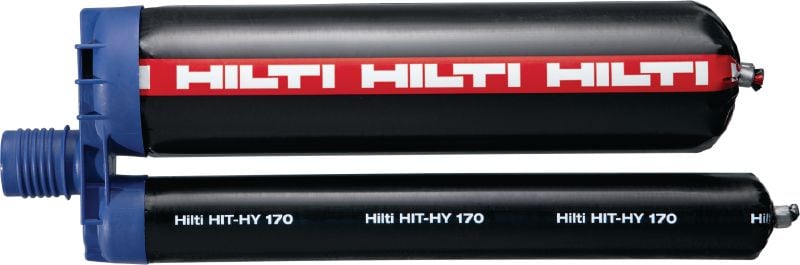

HIT-HY 170 Adhesive anchor
New product
Premium
Item #r4077113
High-performance injectable hybrid mortar with everyday approvals for anchoring in concrete and masonry
- Base materials: Concrete (cracked), Concrete (lightweight), Concrete (uncracked), Masonry (hollow), Masonry (solid)
- Base material condition: Dry, Wet
- Approvals / Test reports: ETA, Seismic
Features & Applications
Features & Applications
Features
- Suitable for use in masonry materials, for post-installed rebar, in cracked and uncracked concrete with anchor rods in accordance with ETA report
- Automatic hole cleaning with TE-CD and TE-YD hollow drill bits in combination with Hilti vacuum cleaners
- Extensive range of accessories available (e.g. sleeves, cordless electric dispenser)
- Wide working concrete temperature range from -5°C to +40°C (except in solid brick)
- Working time optimized for anchoring applications in concrete and masonry
Applications

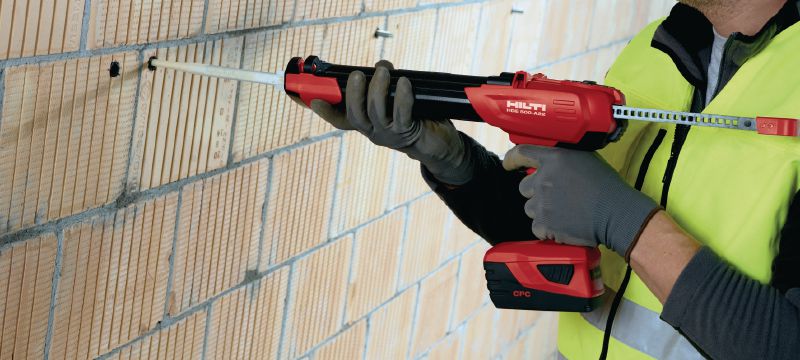

- Fastenings in hollow and solid masonry
- Light- and medium-duty anchoring applications such as window bars, sanitary equipment, awnings, air conditioning systems, lights
- Anchoring light structural steel connections such as steel columns and beams
- Anchoring secondary steel elements

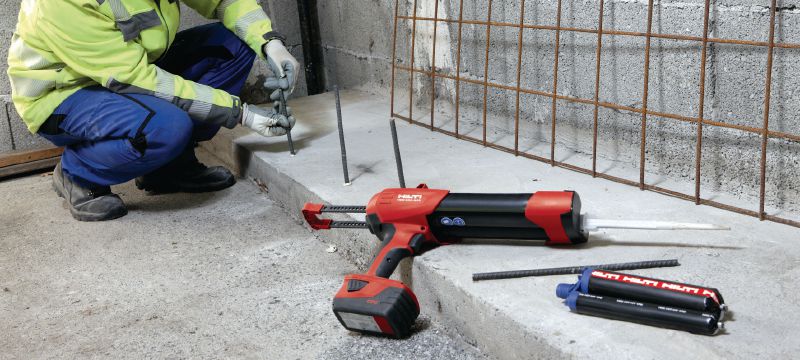

- Connection of secondary post-installed rebar
For approval or certificate information, please see individual items.
