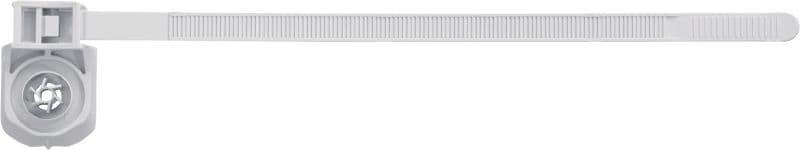

X-ECT MX Cable tie mount

Cable tie holder X-ECT MX #285709

adapted

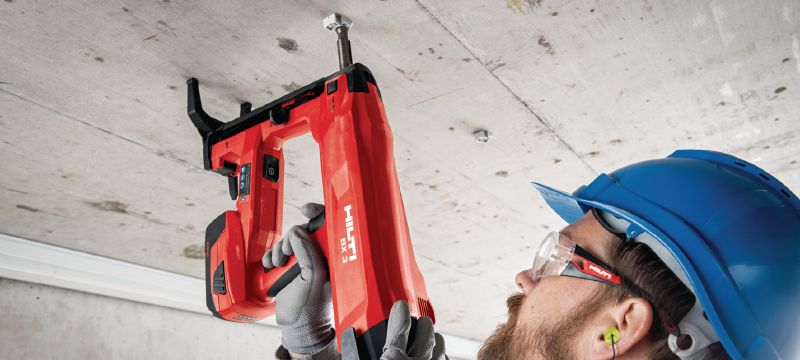

Fasten X-ECT MX with second generation of battery actuated tool BX 3-ME-A22 02 for mechanical and electrical applications
43459.tif
43458.tif
43457.tif
43456.tif
adapted
Fasten X-ECT MX with second generation of battery actuated tool BX 3-ME-A22 02 for mechanical and electrical applications
43459.tif
43458.tif
43457.tif
43456.tif

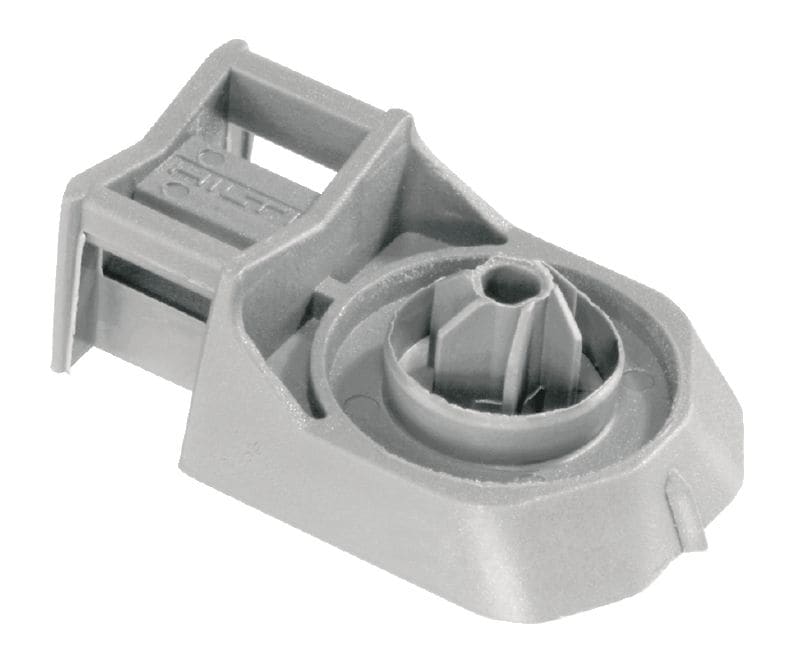

Plastic cable/conduit tie holder for use with collated nails

  • Application: Conduits, Electrical applications, Bunched cables, Single cables
  • Material: Polyamide (PA), Halogen-free, Silicone-free, Flame-retardant according to EN 60695-2-11 at 650°C, Flame-retardant according to IEC 60695-2-11 at 650°C, Flame-retardant according to VDE 0471 part 2-11 at 650°C, UV-resistant (fair)
  • For use with (tools): BX 3-ME-22, BX 3-ME-A22, DX 351 MX, DX 460 MX, DX 5 MX, GX 120-ME, GX 3-ME
premium

Customers also searched for mechanical anchors, gas actuated or straps.

Choose options

Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

BD 1,977.20

BD 19.77 / 1 each

Technical Data

Application
Conduits, Electrical applications, Bunched cables, Single cables
Material
Polyamide (PA), Halogen-free, Silicone-free, Flame-retardant according to EN 60695-2-11 at 650°C, Flame-retardant according to IEC 60695-2-11 at 650°C, Flame-retardant according to VDE 0471 part 2-11 at 650°C, UV-resistant (fair)
For use with (tools)
BX 3-ME-22, BX 3-ME-A22, DX 351 MX, DX 460 MX, DX 5 MX, GX 120-ME, GX 3-ME
Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick), Steel
Approvals
CSTB, ETA, UL
Environmental Conditions
Dry indoor
Width
24.9 mm
Product Class
Premium

Documents

Features & Applications

Features

  • Friction-fit in the nose of BX/GX/DX nailers for easy handling
  • The most time and cost-efficient method of installing cables and conduits
  • UL listed, plenum rated
  • Fire-retardant version available
  • The cable tie can also be assembled prior to fastening

Applications

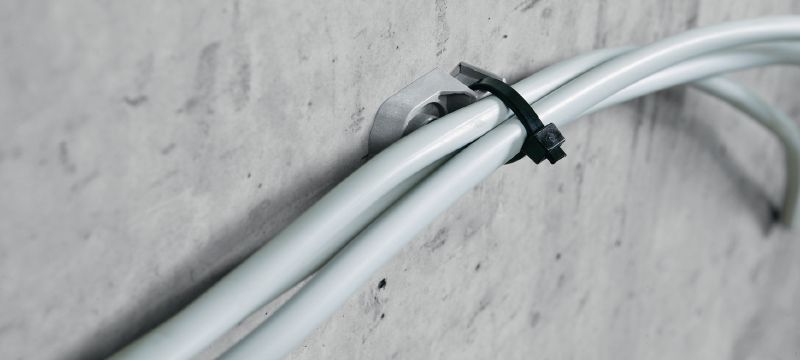

  • Fastening electrical cables

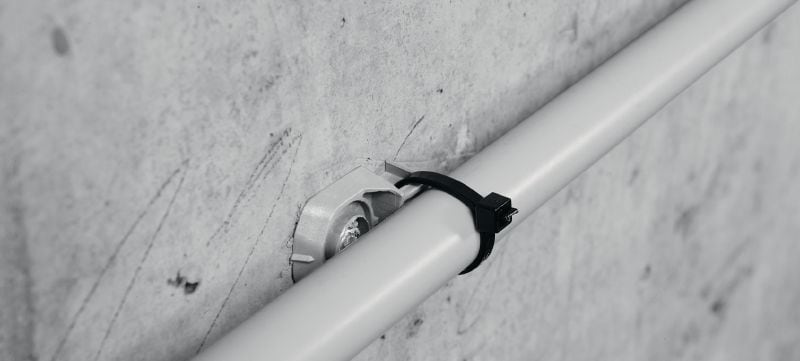

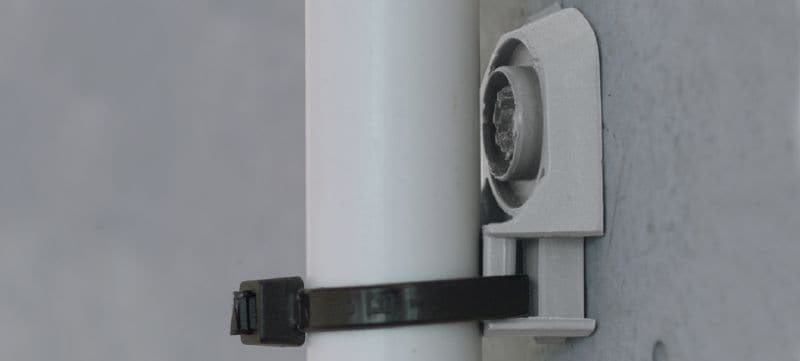

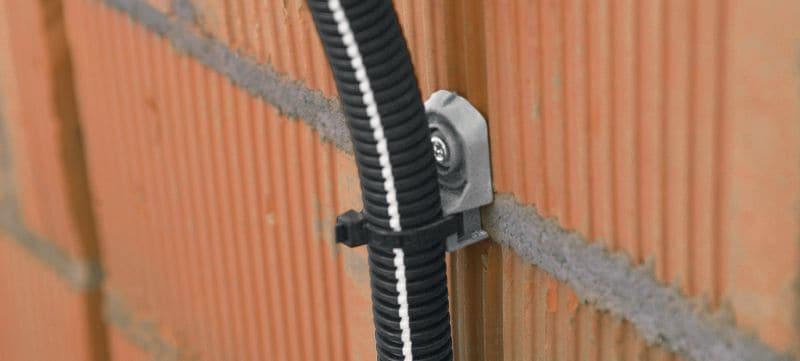

  • Fastening conduits
  • Fastening water and heating pipes
  • Universal holder for all types of cable ties up to 9 mm wide
  • Typical spacing between fastening elements ranges from 50-100 cm – load and cable stiffness must be taken into account
