HFB-R Wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
HFB mushroom head
HFB mushroom head
HFB - fire board anchor
HFB - fire mesh clip
HFB - fire board anchor, HFB - board removal

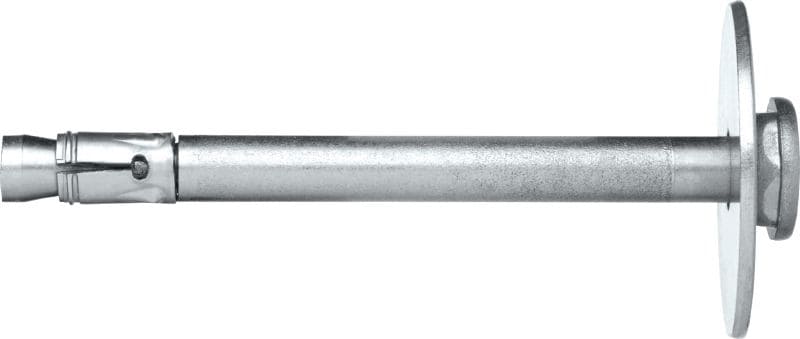

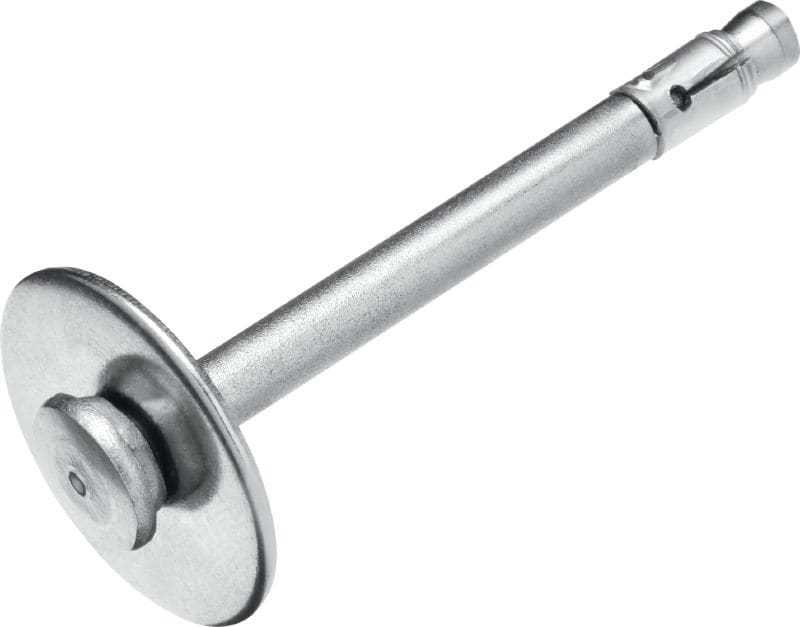

High-performance wedge anchor for fastening fire protection boards to concrete

  • Head configuration: Flat head
  • Environmental conditions: Highly corrosive special applications, Outdoor, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
  • Approvals / Test reports: ETA, Fire, Seismic

Choose options

Anchor size - D
  • 6
Anchor length - L
  • 55 mm
  • 75 mm
  • 105 mm
Pack size
  • 50 pc
  • 75 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Head configuration
Flat head
Environmental conditions
Highly corrosive special applications, Outdoor, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Approvals / Test reports
ETA, Fire, Seismic
Material, corrosion
Stainless steel, A4

Documents

pdf EFECTIS EFR-Reports HFB-R, English [ 7 MB ]

Features & Applications

Features

  • Faster and more reliable fire board anchor for cracked concrete
  • Pre-assembled washer
  • Short embedment depth of 25 mm, 30 mm and 35 mm
  • No torque needed to set the anchor
  • Removable

Applications

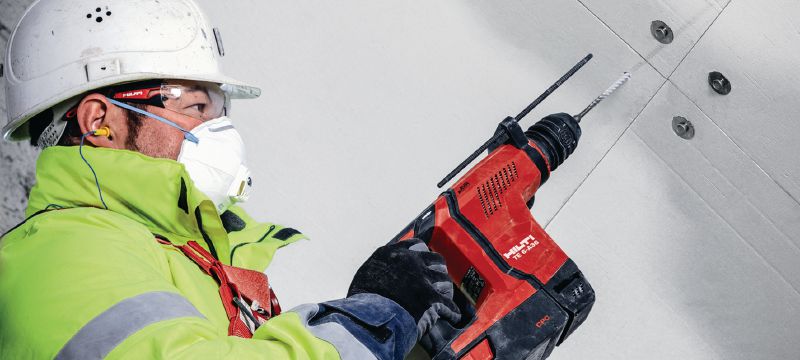

  • Installing fire protection boards in tunnels

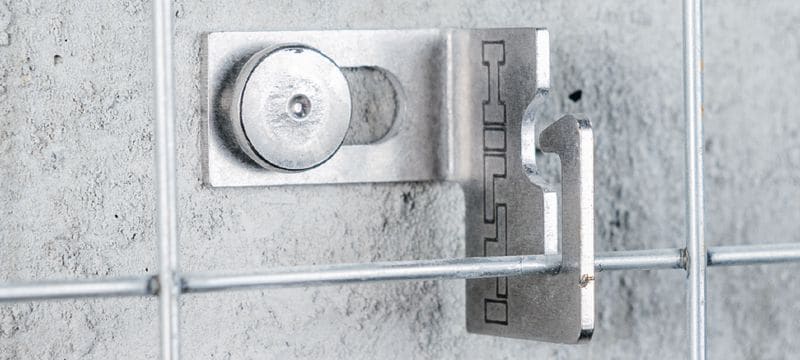

  • Fastening wire mesh for sprayed mortar in tunnels
  • Other light-duty applications

For approval or certificate information, please see individual items.
