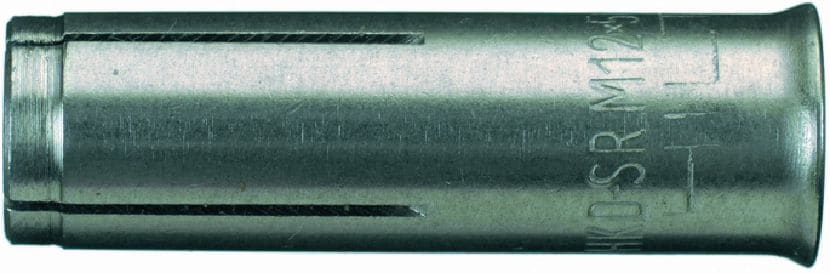

HKD-SR SS316 Drop-in anchor
Corrosion-resistant, tool-set drop-in anchor for outdoor use (stainless steel)
- Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor (more than 1km to coast)
- Approvals / Test reports: ETA, Fire
- Material, corrosion: Stainless steel, A4
Choose options
Internal thread size
- 6 mm
- 8 mm
- 10 mm
- 12 mm
- 16 mm
Anchor length - L
- 25 mm
- 30 mm
- 40 mm
- 50 mm
- 65 mm
Anchor size - D
- M6
- M8
- M10
- M12
- M16
Pack size
- 25 pc
- 50 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 140.85
Technical Data
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor (more than 1km to coast)
Approvals / Test reports
ETA, Fire
Material, corrosion
Stainless steel, A4
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS Software
Yes
Documents
Features & Applications
Features
- Wide variety of sizes available – you can use the same drop-in anchor type for a wide variety of fixtures
- Visual check for correct setting when used with the Hilti setting tool
- Features a lip for flush setting regardless of hole depth
- Stainless steel drop-in anchor for increased corrosion protection
Applications

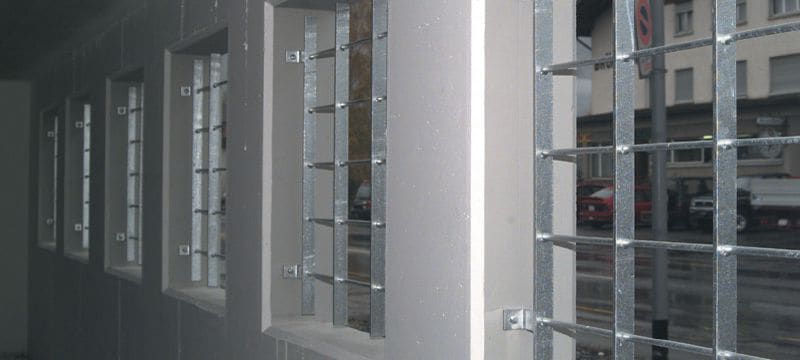

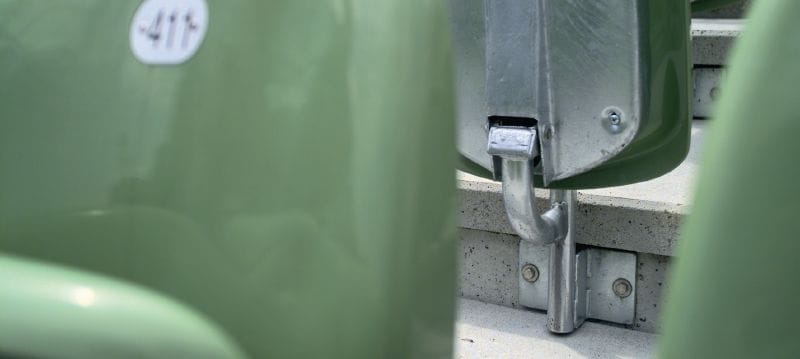

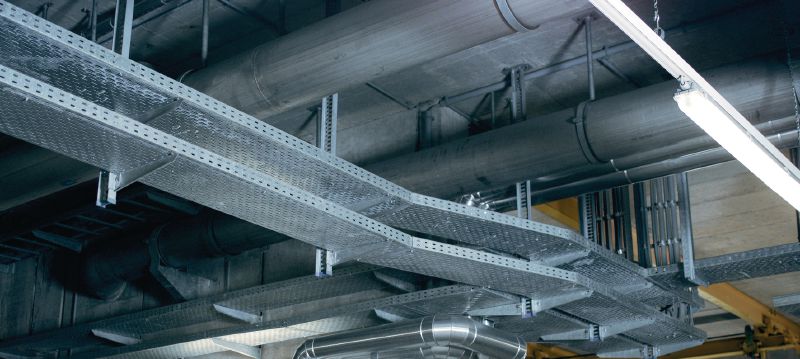

- Medium-duty loads with anchor bolts and threaded rods, e.g. suspension systems for pipes, air ducts, sprinkler systems, etc.
- Redundant applications in cracked concrete or single-point applications in uncracked concrete
For approval or certificate information, please see individual items.
