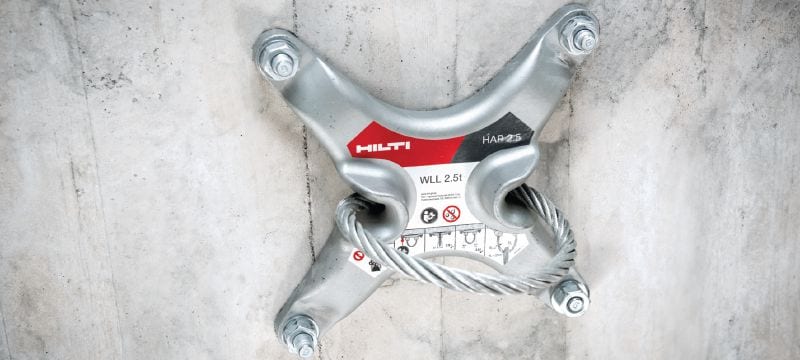

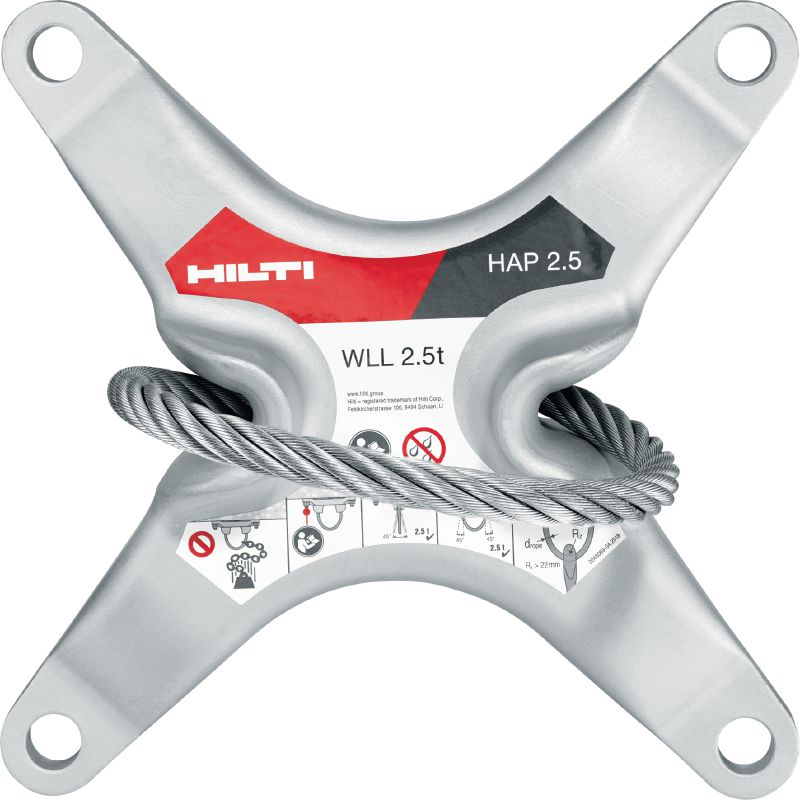

HAP 2.5 Elevator hoist anchor point

Elevator hoist anchor point HAP 2.5 #2247638

Elevator hois anchor point HAP 2,5 with Max WLL of 2.5t for lifting and handling of equipment in the elevator shaft

Elevator hois anchor point HAP 2,5 with Max WLL of 2.5t for lifting and handling of equipment in the elevator shaft

Post-installed hoist point for temporary suspensions during installation and maintenance in elevator shafts

Material, corrosion: Cast-iron, Multilayer coating
Head configuration: N/A
PROFIS Software: No

Choose options

Pack size

2 pc

Product options

Quantity

Packs

Total Pieces

2

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Material, corrosion

Cast-iron, Multilayer coating

Head configuration

N/A

PROFIS Software

No

Documents

Features & Applications

Features

Pre-assembled – delivered ready to install, optionally bundled with compatible anchors

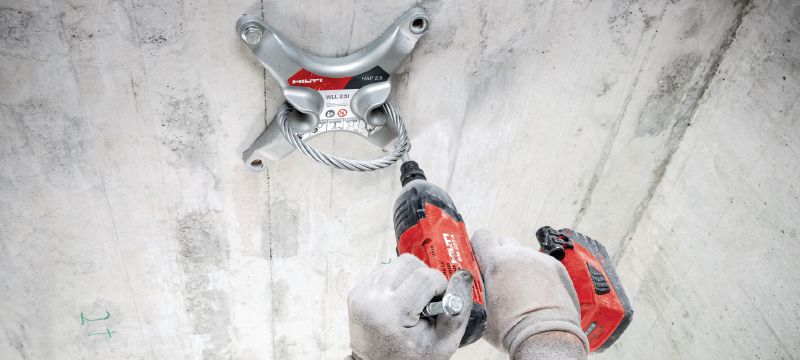

Built for one-person installation – weighing under 3 kg, this hoist point is much faster and easier to install overhead
Compatible with PROFIS Engineering software – giving you a convenient method to design anchorage for the hoist anchor plate according to Eurocode 2 and ETAG
Large, rigid hooking area – hook point designed for easy engagement and to prevent swiveling loads

Applications

Post-installed hoist point

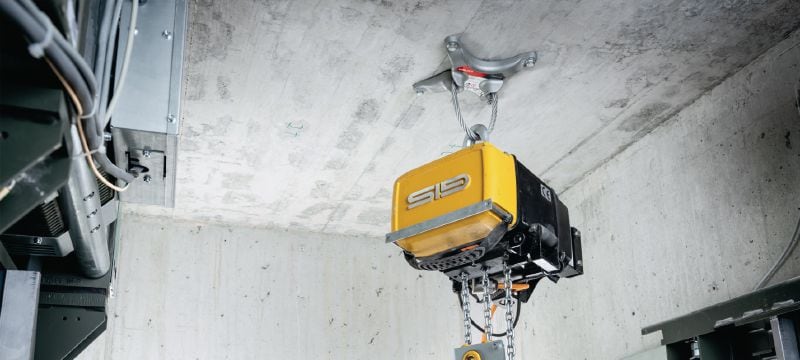

For temporary suspension of elevator cabins or equipment during installation or maintenance work in elevator shafts
