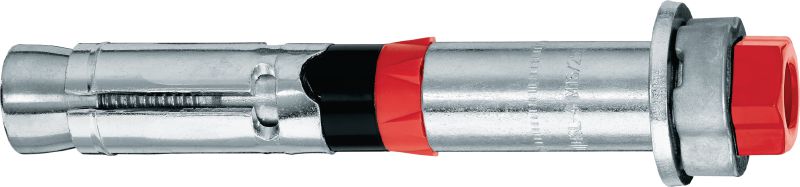

HSL4-B Heavy-duty wedge anchor

Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel)

Material, corrosion: Carbon steel, zinc-plated, Zinc plated (min. 5 microns)

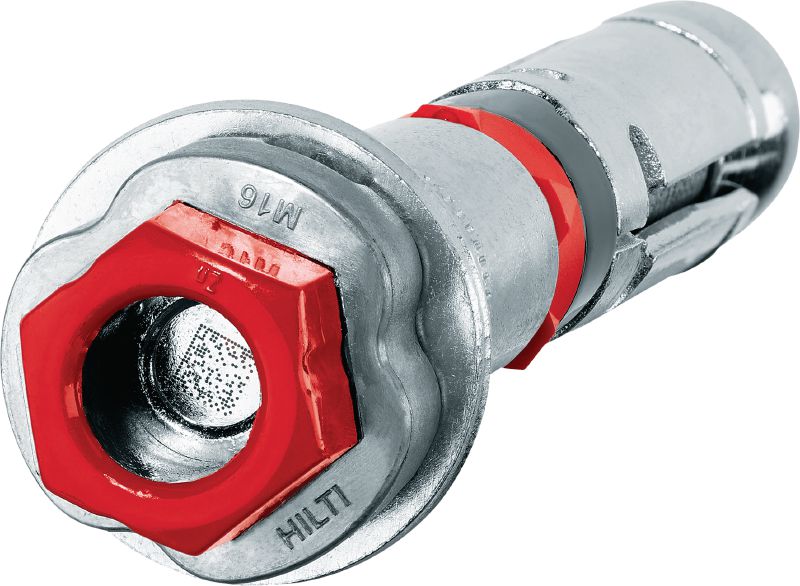

Head configuration: Safety cap (Torque limitation nut)
Approvals / Test reports: ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic

Customers also searched for HSL4, HSL4-B, HSL4B or HSL-4-B.

Anchor size - D

Anchor length - L

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 513.94

Material, corrosion

Carbon steel, zinc-plated, Zinc plated (min. 5 microns)

Head configuration

Safety cap (Torque limitation nut)

Approvals / Test reports

ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic

Base materials

Concrete (cracked), Concrete (uncracked)

PROFIS Software

Yes

High tensile and shear load capacity
Force-controlled expansion which allows follow-up expansion

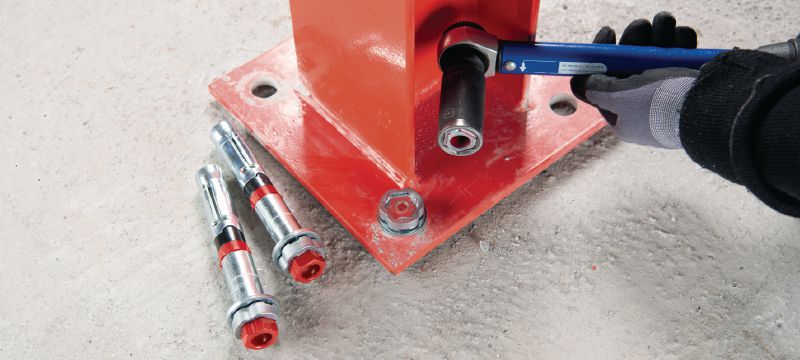

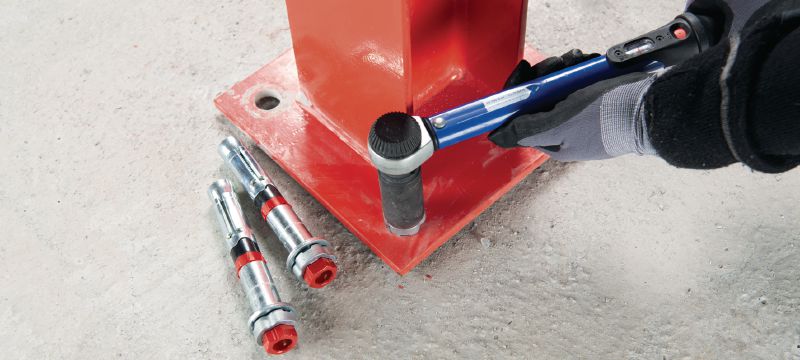

Special safety cap helps ensure proper installation torque is applied even if not using a calibrated torque wrench
ETA Option 1 for cracked and uncracked concrete
ICC-ES/AC 193 for cracked and uncracked concrete and seismic

Heavy-duty fastenings in highly safety-relevant or dynamic applications, including applications in nuclear power plants
Applications where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.

For approval or certificate information, please see individual items.
