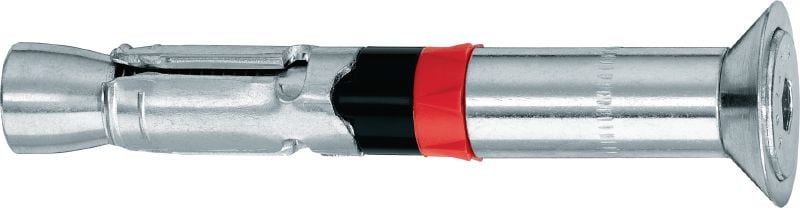

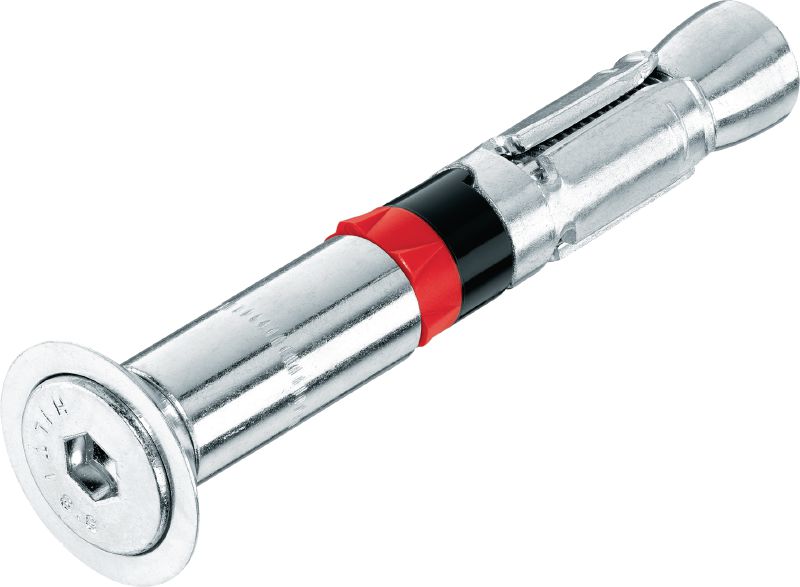

HSL4-SK Heavy-duty wedge anchor

Ultimate-performance heavy-duty wedge anchor with approvals for flush-mount fastenings in concrete (carbon steel, countersunk)

Material, corrosion: Zinc plated (min. 5 microns)
Head configuration: Countersunk
Approvals / Test reports: ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic

Anchor size - D

Anchor length - L

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 1,585.32

Material, corrosion

Zinc plated (min. 5 microns)

Head configuration

Countersunk

Approvals / Test reports

ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic

Base materials

Concrete (cracked), Concrete (uncracked)

PROFIS Software

Yes

Aesthetic appearance and no tripping hazard due to flush installation
High tensile and shear load capacity, force-controlled expansion allows follow-up expansion
ETA Option 1 for cracked and uncracked concrete
ICC-ES/AC 193 for cracked and uncracked concrete and seismic
Suitable for dynamic loading including fatigue, seismic and shock

Fastenings in safety-relevant and/or dynamic applications where a flush installation or aesthetic appearance is required, including applications in nuclear power plants
Applications where extensive approval back-up or technical back-up is required

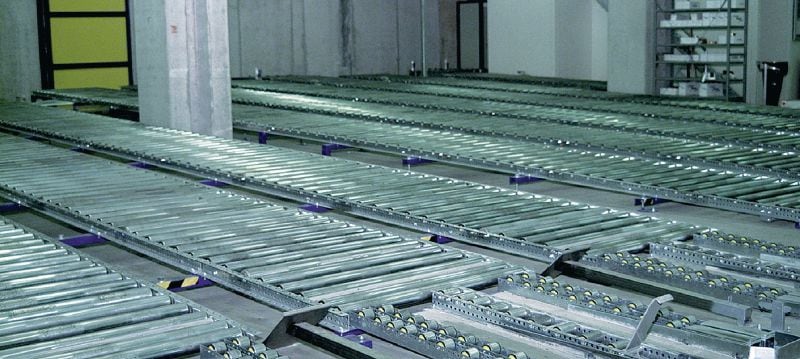

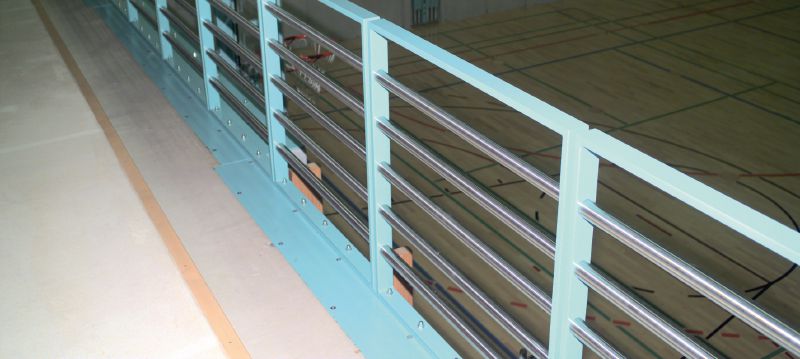

Examples are medical equipment, hand rails, machines, car hoists, safety fences, pumps, etc.
Applications requiring an aesthetic countersunk head finish

For approval or certificate information, please see individual items.
