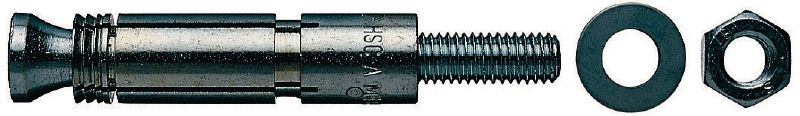

HSC-AR Shallow undercut anchor
Safety anchor HSC-AR M8x40/15 #31148
Ultimate-performance shallow undercut anchor (stainless steel, external thread)
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / Test reports: ETA, Fire
Choose options
Anchor size - D
- M8
Standard embedment depth
- 40 mm
Max. fixture thickness at standard embedment depth
- 15 mm
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted net
BD 160.82
BD 6.43 / 1 each
Technical Data
Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / Test reports
ETA, Fire
Max. fixture thickness at standard embedment depth
15 mm
PROFIS Software
Yes
Documents
Features & Applications
Features
- Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
- Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
- Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
- The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
- Requires a plain cylindrical hole to be drilled, no separate undercutting operation
Applications
- Safety-relevant, medium-duty fastenings in cracked or uncracked concrete and corrosive environments, especially where shallow embedment and/or small edge distance or close spacing is required

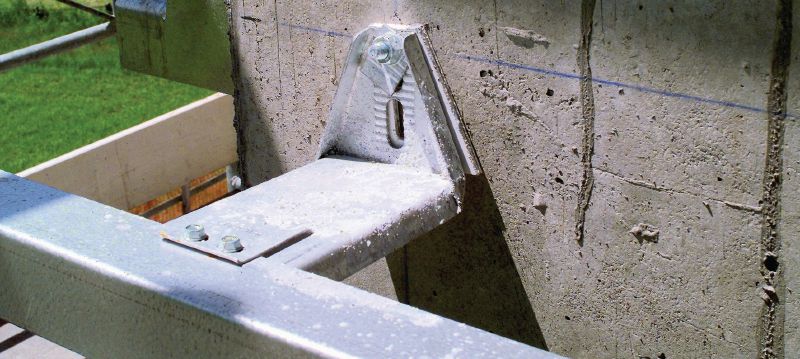

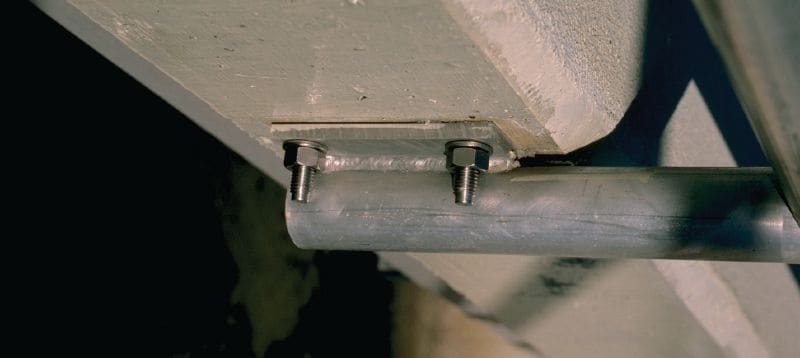

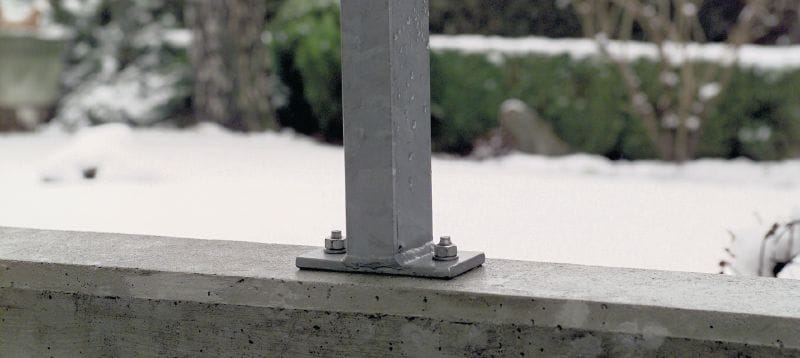

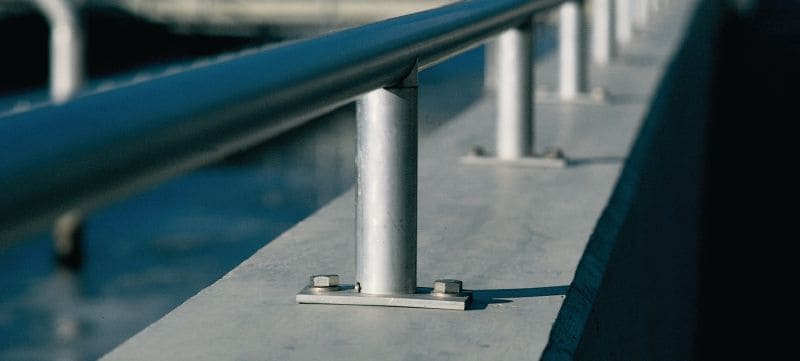

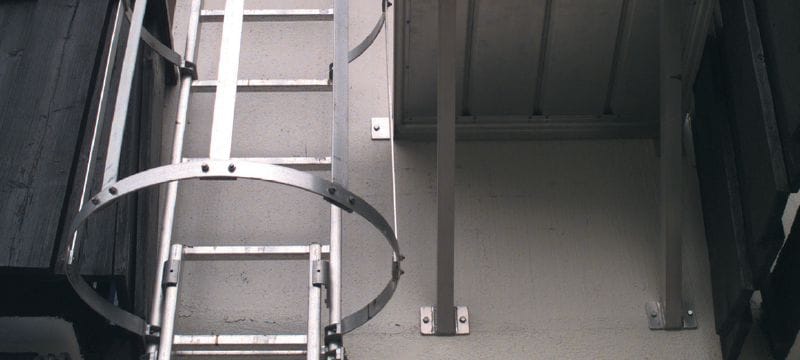

- Examples: stair hand rails, balcony safety railings, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.
