HDA-PF Undercut anchor

Undercut anchor HDA-PF M16x190/60 #339360

Configurator
Technical Data
Documents
Features & Applications
Related Products
9364.tif
HDA-PF, HDA-TF
HDA-PF, HDA-TF
HAD Design anchors

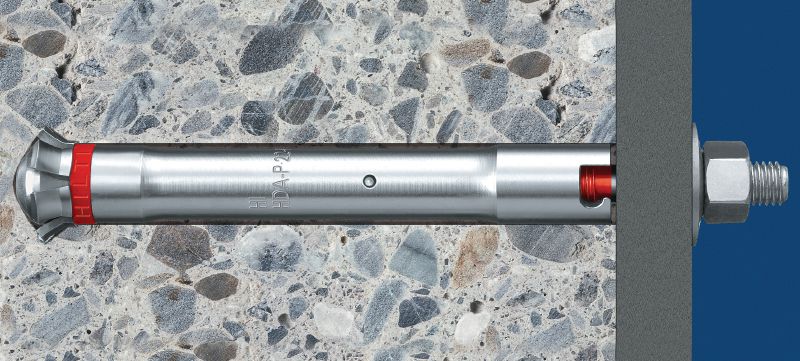

Ultimate-performance pre-set undercut anchor for dynamic loads (sherardized steel)

  • Material, corrosion: Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
  • Head configuration: Externally threaded
  • Max. fixture thickness at standard embedment depth: 60 mm

Choose options

Anchor size - D
  • M16
Standard embedment depth
  • 190 mm
Max. fixture thickness at standard embedment depth
  • 60 mm
Pack size
  • 4 pc
 Product options
Quantity
Packs
Total Pieces
4
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
Head configuration
Externally threaded
Max. fixture thickness at standard embedment depth
60 mm
PROFIS Software
No

Documents

Technical information
Brochure
Sustainability Documentation
pdf Solutions for fastening: Improved design for anchors under shear loading, English [ 1.6 MB ]

Features & Applications

Features

  • Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect helps provides a secure hold even in cracked concrete
  • Manufactured under the NQA-1 nuclear quality assurance program

Applications

  • Safety-relevant, heavy-duty fastenings for dynamic loading in cracked or uncracked concrete, including applications in nuclear power plants
  • Examples: supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.
