HDA-TF Undercut anchor

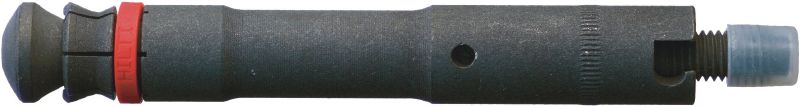

Undercut anchor HDA-TF M16x190/40 #339364

Configurator
Technical Data
Documents
Features & Applications
Related Products
7426.tif
L023465.tif
HDA-PF, HDA-TF
HDA
HDA

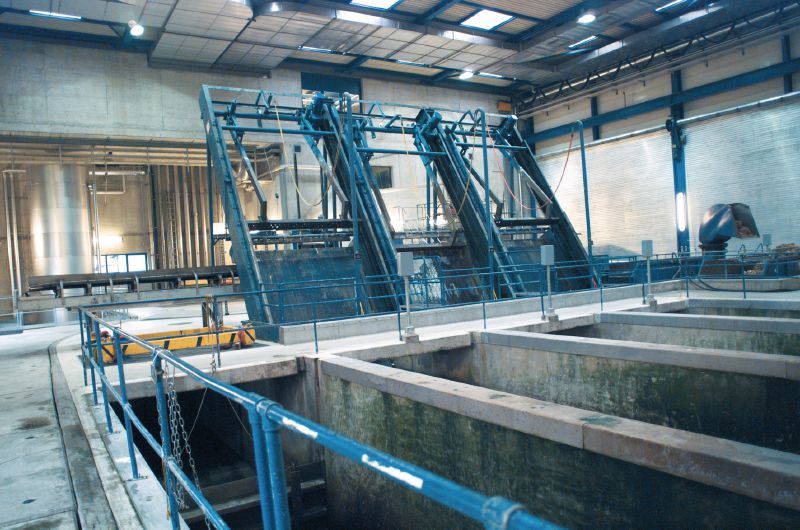

Mechanical treatment: Screening building More waste water treatment. More Hilti quality inside. adapted

Ultimate-performance through-set undercut anchor for dynamic loads (sherardized steel)

  • Material, corrosion: Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
  • Head configuration: Externally threaded
  • Max. fixture thickness at standard embedment depth: 40 mm

Choose options

Anchor size - D
  • M16
Standard embedment depth
  • 190 mm
Max. fixture thickness at standard embedment depth
  • 40 mm
Pack size
  • 4 pc
 Product options
Quantity
Packs
Total Pieces
4
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
BD 301.61
BD 75.40
/
1 each

Technical Data

Material, corrosion
Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
Head configuration
Externally threaded
Max. fixture thickness at standard embedment depth
40 mm
PROFIS Software
No

Documents

Technical information
Brochure
Sustainability Documentation
pdf Technical data sheet for HDA anchor steel to concrete, English [ 1.3 MB ]

Features & Applications

Features

  • Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect helps to provide a secure hold in cracked concrete under dynamic loading
  • Manufactured under the NQA-1 nuclear quality program

Applications

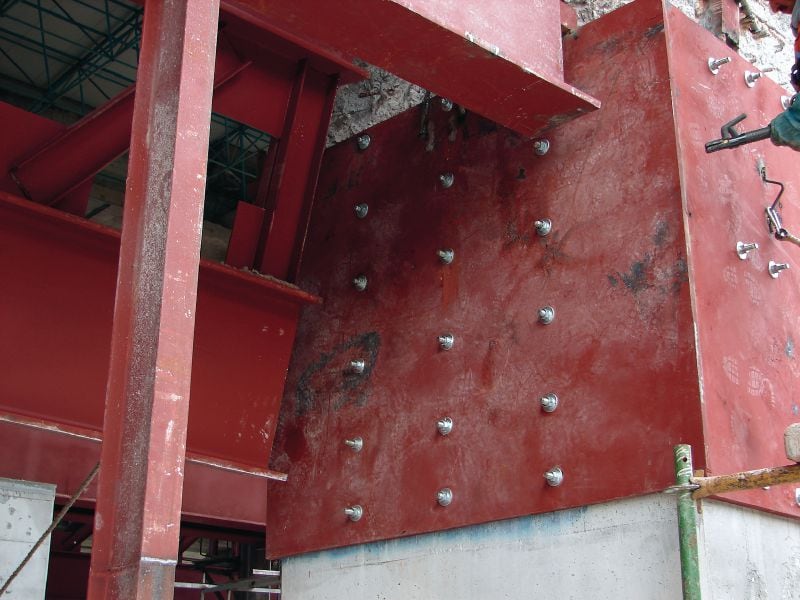

  • Safety-relevant, heavy-duty fastenings for all dynamic loading in cracked or uncracked concrete, including applications in nuclear power plants
  • Examples: supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.
