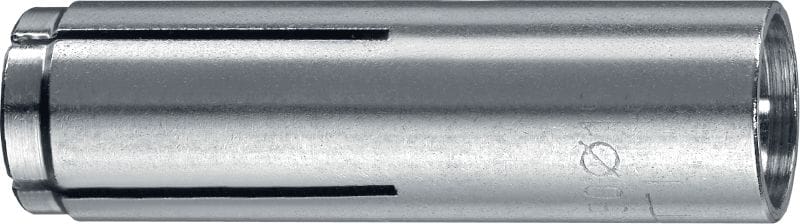

HKD-D Drop-in anchor
Manual-set drop-in anchor for fastening core drilling machines and wall saws to concrete (carbon steel)
- Environmental conditions: Dry indoor
- Approvals / Test reports: N/A
- Material, corrosion: Carbon steel, zinc-plated
Choose options
Internal thread size
- 12 mm
Anchor length - L
- 50 mm
Anchor size - D
- M12
Pack size
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 200.70
Technical Data
Environmental conditions
Dry indoor
Approvals / Test reports
N/A
Material, corrosion
Carbon steel, zinc-plated
Base materials
Concrete (uncracked)
PROFIS Software
No
Installation tools
TE 6-A36 Cordless rotary hammer
Features & Applications
Features

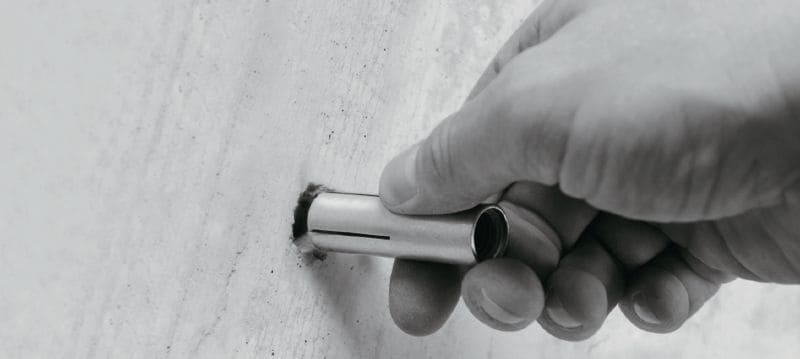

- No collar – drop-in anchor can be set at greater depth
- No damage to the thread when tapping in and expanding
- “Intelligent” stepped expansion piece adapts to suit materials of different hardness
- Visual check for correct setting
Applications

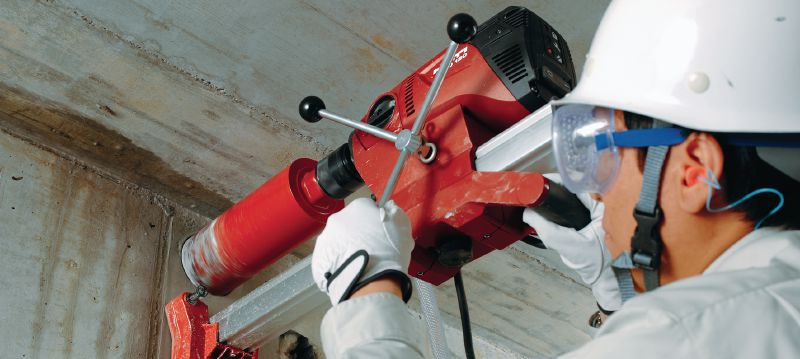

- Fastening diamond core drilling rigs and wall saws
For approval or certificate information, please see individual items.
