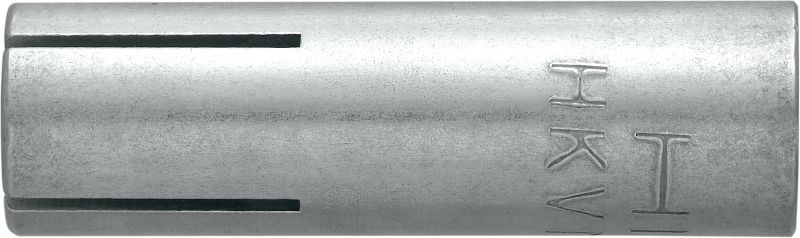

HKV Drop-in anchor
Economical manual-set drop-in anchor without lip (carbon steel)
- Environmental conditions: Dry indoor
- Approvals / Test reports: FM (Factory Mutual)
- Material, corrosion: Carbon steel, zinc-plated
Choose options
Internal thread size
- 10 mm
- 12 mm
- 16 mm
Anchor length - L
- 40 mm
- 50 mm
- 65 mm
Anchor size - D
- M10
- M12
- M16
Pack size
- 25 pc
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 6.85
Technical Data
Environmental conditions
Dry indoor
Approvals / Test reports
FM (Factory Mutual)
Material, corrosion
Carbon steel, zinc-plated
Base materials
Concrete (uncracked)
PROFIS Software
No
Installation tools
TE 6-A36 Cordless rotary hammer
Documents
Features & Applications
Features
- No collar – can be set at greater depth

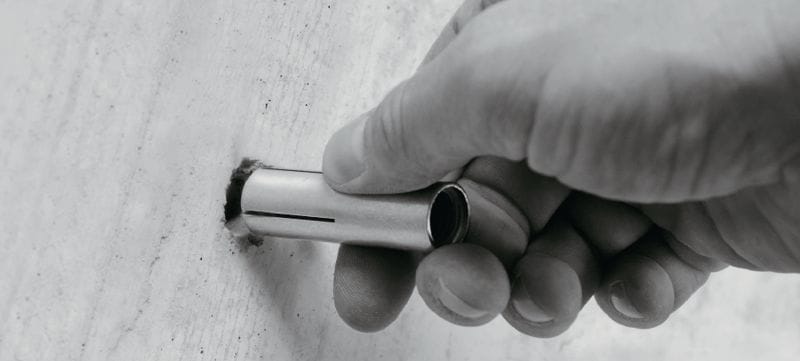

- No damage to the thread when tapping in and expanding
- “Intelligent” stepped expansion piece adapts to suit materials of different hardness
- Visual check for correct setting
Applications

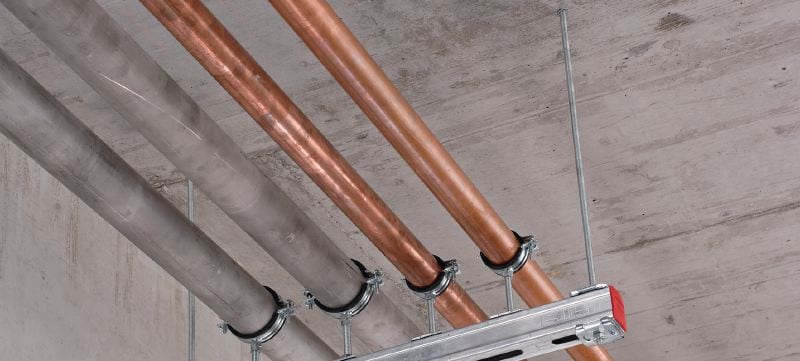

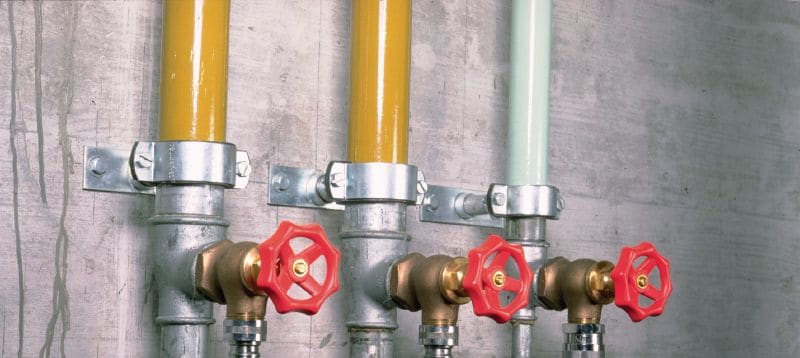

- Medium-duty anchor for use with anchor bolts and threaded rods, e.g. suspension systems for pipes, air ducts and sprinkler systems etc.
For approval or certificate information, please see individual items.
