X-ENP MXR Metal deck nails
Sheet metal nail X-ENP-19 L15MXR #283508

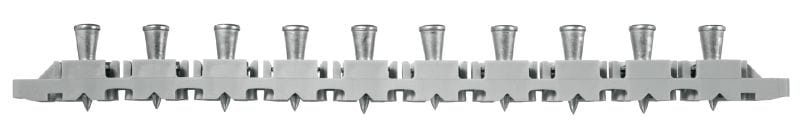

Collated nail for fastening metal decks to steel structures using the DX 9-ENP powder-actuated tool
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Galvanized zinc coated <20 µm
ultimate
Customers also searched for decking nail, decking fastener, metal roof deck nail or powder actuated.
Choose options
Fastener shank length
- 19 mm
Pack size
- 1000 pc
Quantity
Packs
Total Pieces
1000
Discounted net
BD 853.00
BD 0.85
/
1 each
Technical Data
Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
ABS, ETA, FM, IAPMO, ICC-ES, ITB, LR, MLIT, SDI, UL
For use with (tools)
DX 9
Product Class
Ultimate
Features & Applications
Features
- Significantly faster and safer fastening system compared to welding
- Fully knurled tip provides high strength capacity, shear and tension
- Next-generation applications - our first metal deck fastener approved for use on tougher base materials such as thermomechanically rolled steels
- Proven system with several worldwide approvals for siding and decking
- No predrilling required for any approved steel base material regardless of profile thickness and grade
Applications

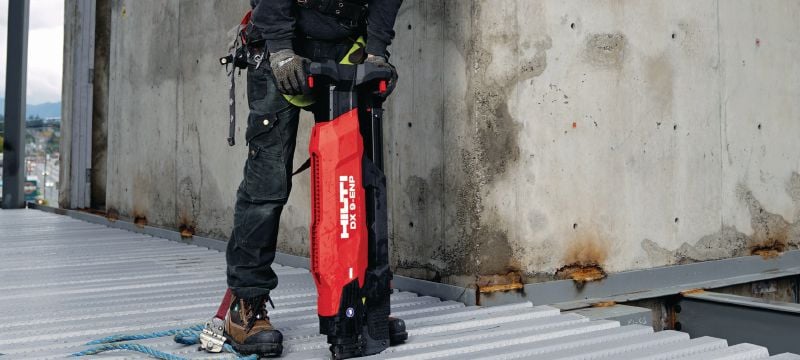

- Fastening composite metal decks to steel structures for composite floor decking
- Fastening metal roof decks to steel structures for roofing
