S-MD 51 Z Self-drilling metal screws

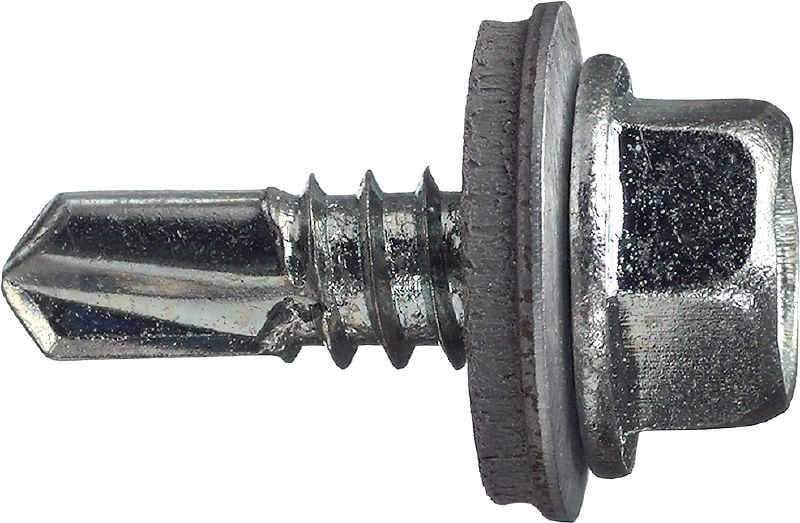

Self-drill screw S-MD51Z 4,8X19 #219032

Self-drilling screw (zinc-plated carbon steel) with 16 mm washer for thin metal-to-metal fastenings (up to 3 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Carbon steel
premium

Choose options

Thickness fastened range MF
  • 1.2 - 8 mm
Length
  • 19 mm
Pack size
  • 500 pc
Product options
Quantity
Packs
Total Pieces
500
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

BD 280.00

BD 0.14 / 1 each

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel
Environmental Conditions
Dry indoor
Screw diameter d
4.8 mm
Length
19 mm
Screw-head diameter
10 mm
Product Class
Premium
Washer type
Bonded EPDM

Documents

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • EPDM rubber washer – creates a more reliable seal against water
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be colored to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanized carbon steel for fastening in dry, indoor environments
  • Thin metal-to-metal connections (up to 3 mm)
  • For applications requiring watertight fastenings with 16 mm washer
  • Fastening sheet metal to sheet metal, fastening steel sheeting to thin steel profiles and liner trays
