S-BT-GF HL Threaded stud
New product UltimateItem #r14655989
Threaded screw-in stud (multilayer coated carbon steel - corrosion protection comparable to HDG) for grating and multi purpose fastenings on steel in mildly corrosive environments. Compatible with Hilti MT installation channels
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Duplex coating equivalent to 45 µm hot dipped galvanized
Features
- The S-BT-GF HL is easier and more reliable to use – requires no electric supply cords or heavy equipment for installation
- Suitable for use in mildly corrosive environments (C3)
- Easy installation in tight spaces
- Eliminates the need for refinishing work
- No propellant required
Applications

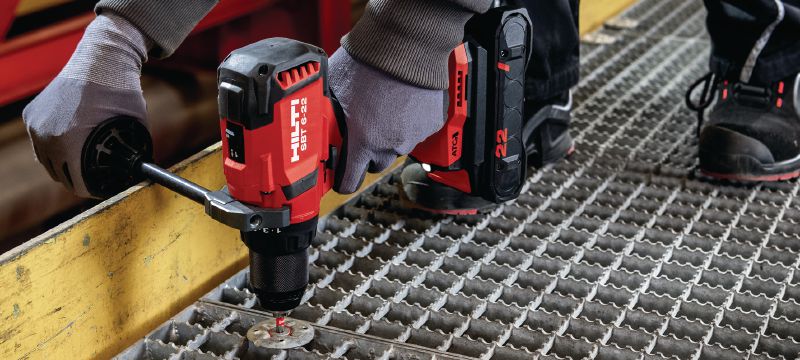

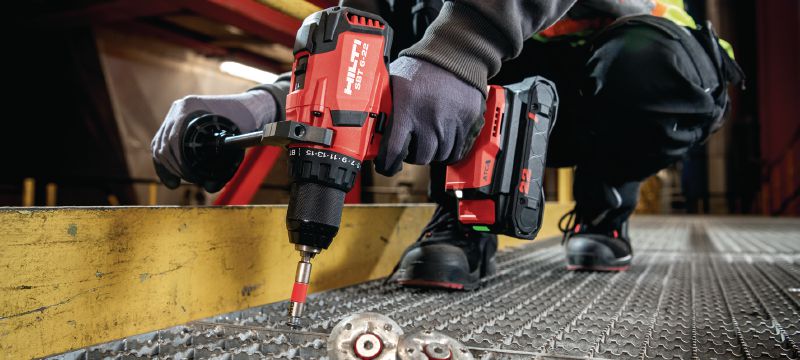

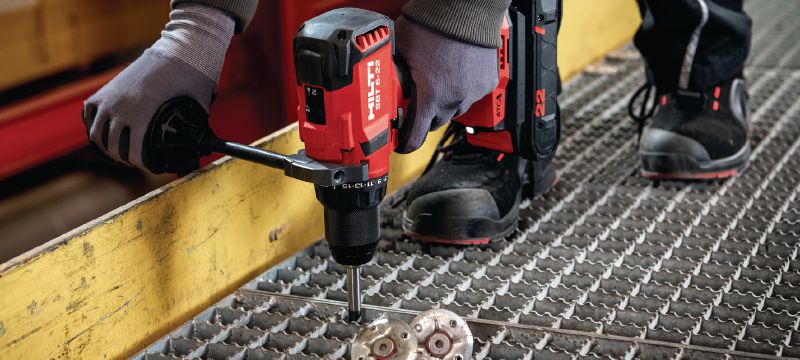

- Fastening gratings to steel structures using the X-FCM-F grating disc
- Fastening gratings to steel structures using the X-FCM-F HL grating disc
For approval or certificate information, please see individual items.
Product Information
Technical Data
Documents
-
- ETA-23/0001 S-BT-HL 2023-02-16, English, German, [ 2.5 MB ]
- BV Type Approval 74271/A0_BV for S-BT-MR / -MF HL, S-BT-GR / -GF HL, S-BT-ER / -EF HL fastening system in off-shore and shipbuilding application., English, [ 530.5 kB ]
- ABS Type Approval 23-2361769-PDA for S-BT HL fastening system in off-shore and shipbuilding application., English, [ 1.8 MB ]
- DNV Type Approval Certificate TAS00003NW for S-BT HL fastening system in off-shore and shipbuilding application., English, [ 488.9 kB ]
- RINA Type Approval FPE035023CS/001 for S-BT-MR / -MF HL, S-BT-GR / -GF HL, S-BT-ER / -EF HL, X-FCM-R (NG), X-FCM-F (NG) and X-FCS-R fastening system in off-shore and shipbuilding application., English, [ 125.1 kB ]
Application videos
-
SBT 6-22 Promo (16:9, EN)
