F-BT-MR SN Threaded studs with sealing washer

Configurator
Technical Data
Documents
Features & Applications
Related Products
CSF stud F-BT-MR M10x25 SN (10)
CSF stud F-BT-MR M8x25 SN (8)

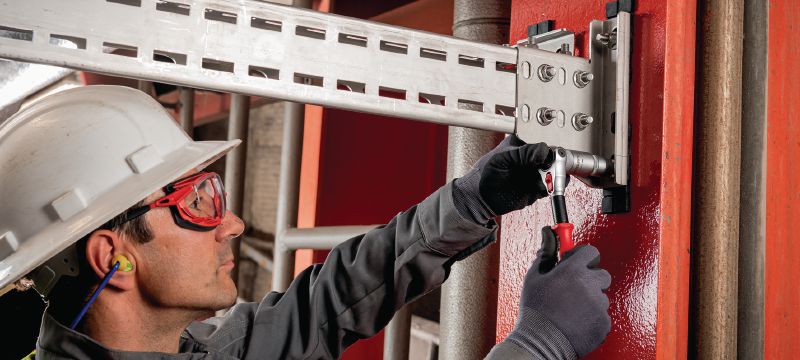

Cropped version of the application image showing the mekano modular support installation with F-BT stud.
F-BT fastener installation on steel with Cordless Stud Fusion operator
Installed F-BT fastener on steel with Cordless Stud Fusion
Installed bracket with F-BT fastener on steel with Cordless Stud Fusion

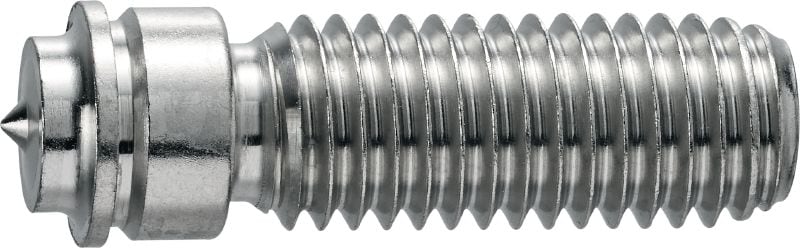

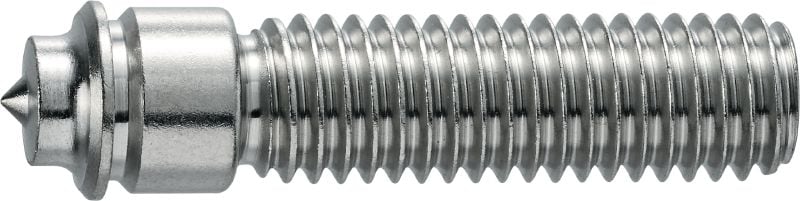

Stainless steel threaded studs for use with Hilti Stud Fusion, including sealing washer and safety flange nut

  • Base materials: Carbon steel
  • Corrosion protection: Stainless steel A5
  • Environmental Conditions: Outdoor, areas with heavy industrial pollution
ultimate

Customers also searched for stainless steel studs, stainless threaded studs, threaded studs in stainless steel or stainless steel studs with sealing washer.

Choose options

Thread size
  • M6
  • M8
  • M10
  • M12
Thread length
  • 25 mm
  • 50 mm
Pack size
  • 1 pc
  • 100 pc
  • 200 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Base materials
Carbon steel
Corrosion protection
Stainless steel A5
Environmental Conditions
Outdoor, areas with heavy industrial pollution
Material
Stainless steel A5
Point type
Blunt tip
Product Class
Ultimate

Documents

Approval document
Technical information
Certificate
Material safety datasheet
pdf ABS Approval 23-2398165-PDA for F-BT welded studs in off-shore and shipbuilding application, English [ 174.6 KB ]
pdf Z-14.4-959 for F-BT Threaded studs, German, English [ 10.5 MB ]
pdf BV Approval 74483-A1 for F-BT welded studs, English [ 1.1 MB ]
pdf DNV Type Approval TAS00003ZE for for F-BT welded studs in off-shore and shipbuilding application, English [ 476 KB ]
pdf LR Type Approval LR2536337TA for for F-BT welded studs in marine, offshore and industrial application, English [ 433.9 KB ]

Features & Applications

Features

  • Complete fastening point solution including sealing washer for corrosion protection and safety flange nut for more reliable threaded connection
  • Corrosion Resistance Class III – high-performance stainless steel welded threaded studs
  • Little-to-no rework necessary on back of coated steel – corrosion protection remains intact
  • Portable, cordless system – eliminates the need for long power supply cords
  • Ultimate productivity – ideal for fastening directly to coated steel

Applications

  • Fastening to coated steel in polluted/corrosive environments (up to C5) for higher tensile loads or thinner base materials. Suitable for Hilti Stud Fusion tooling only
  • Steel fastening in oil and gas offshore installations – cable tray/ladder supports, pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
  • Steel fastening in oil and gas onshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
  • Shipbuilding – block alignment, fastening false ceilings, raised floors, inspection grids and manholes, water spray separators; fastening of internal and external furniture and outfitting (lamps, switches, junction boxes etc.); support for electric/piping/ventilation services

For approval or certificate information, please see individual items.
