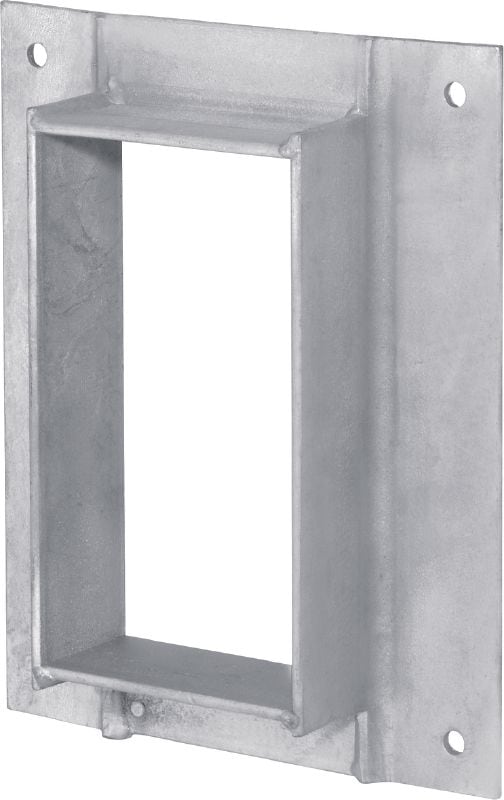

CFS-T SB transit frames
Transit frames for fitting modules to seal cable/pipe penetrations in concrete walls and floors
- Storage and transportation temperature range: 5 - 25 °C
- Application temperature range: 50 - -20 °C
Customers also searched for mass cable transit, cable transit, MCT, multi cable transit system or cable seal.
Choose options
Frame size
- 4
- 6
- 8
Number of frame columns
- 1
- 2
- 3
- 5
- 6
Base materials
- Concrete
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 42.81
Technical Data
Storage and transportation temperature range
5 - 25 °C
Application temperature range
50 - -20 °C
Documents
Features & Applications
Features
- Available in hot-dip galvanized steel (grade S235 JR)

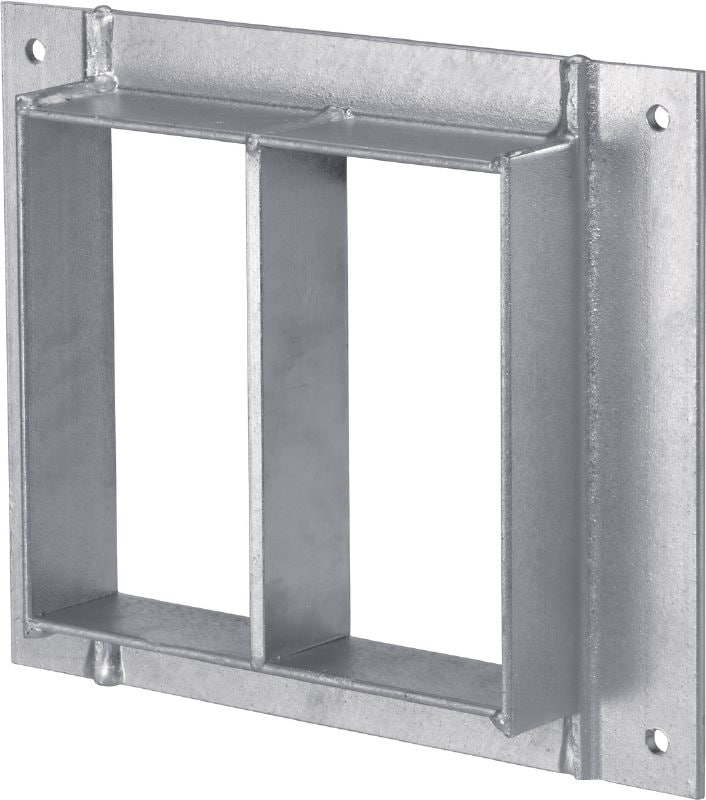

- Available with single- and multiple-frame windows in various sizes within single-row, double-row or triple-row frames
Applications
- Wall and floor penetrations in concrete, masonry and lightweight walls
For approval or certificate information, please see individual items.
