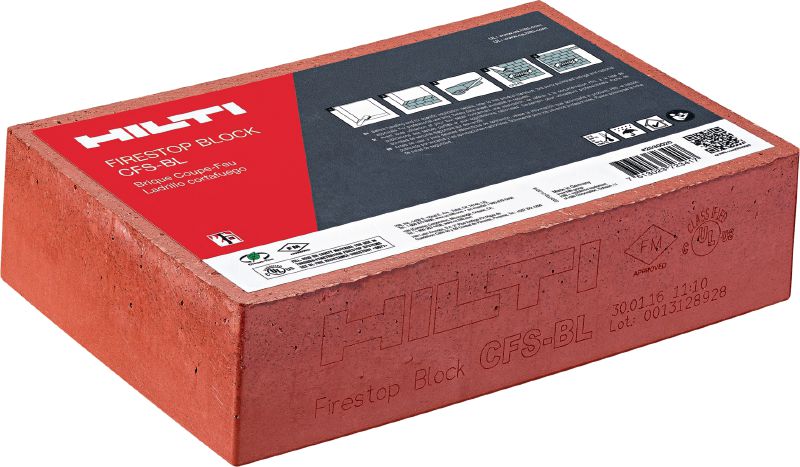

CFS-BL Firestop Block
Preformed firestop blocks for sealing penetrations with cables
- Dimensions (LxWxH): 200 x 130 x 50 mm
- Base materials: Concrete, Masonry, Gypsum board, Sandwich Panel, Multi
- LEED VOC: 5 g/l
ultimate
Customers also searched for firestop brick, block, cable tray, pillow or brick.
Choose options
Dimensions (LxWxH)
- 200 x 130 x 50 mm
Length
- 200 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 218.98
Technical Data
Dimensions (LxWxH)
200 x 130 x 50 mm
Base materials
Concrete, Masonry, Gypsum board, Sandwich Panel, Multi
LEED VOC
5 g/l
Application temperature range
5 - 40 °C
Product Class
Ultimate
Documents
Features & Applications
Features
- Easy to install – no special tools required
- High-productivity, one-sided, one-person installation
- Dust-, fiber-, halogen- and solvent-free
- Integrated grid technology reduces the use of wire mesh/cover plates making installation of the firestop block faster and cleaner
Applications

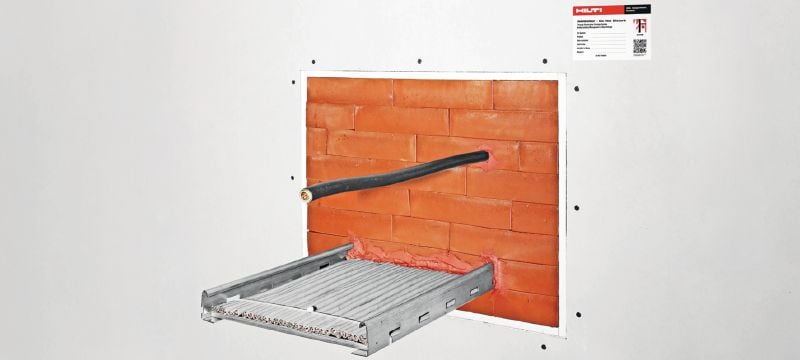

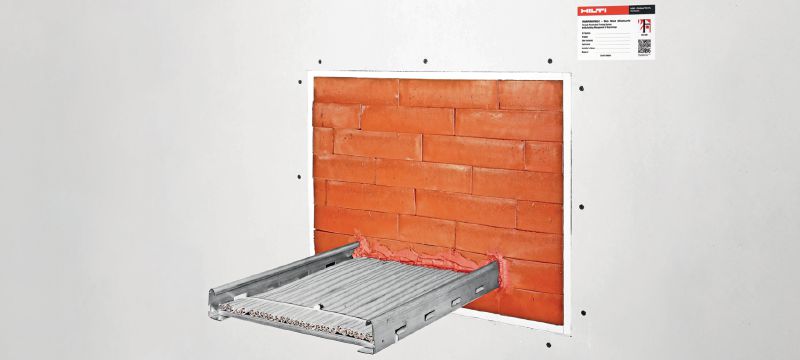

- Temporary or permanent sealing of cables, cable trays and pipes in wall and floor openings
- Cables and cable trays
- Floors and walls
- Concrete, CMU, gypsum
For approval or certificate information, please see individual items.
