CP 617 Firestop Putty Pad

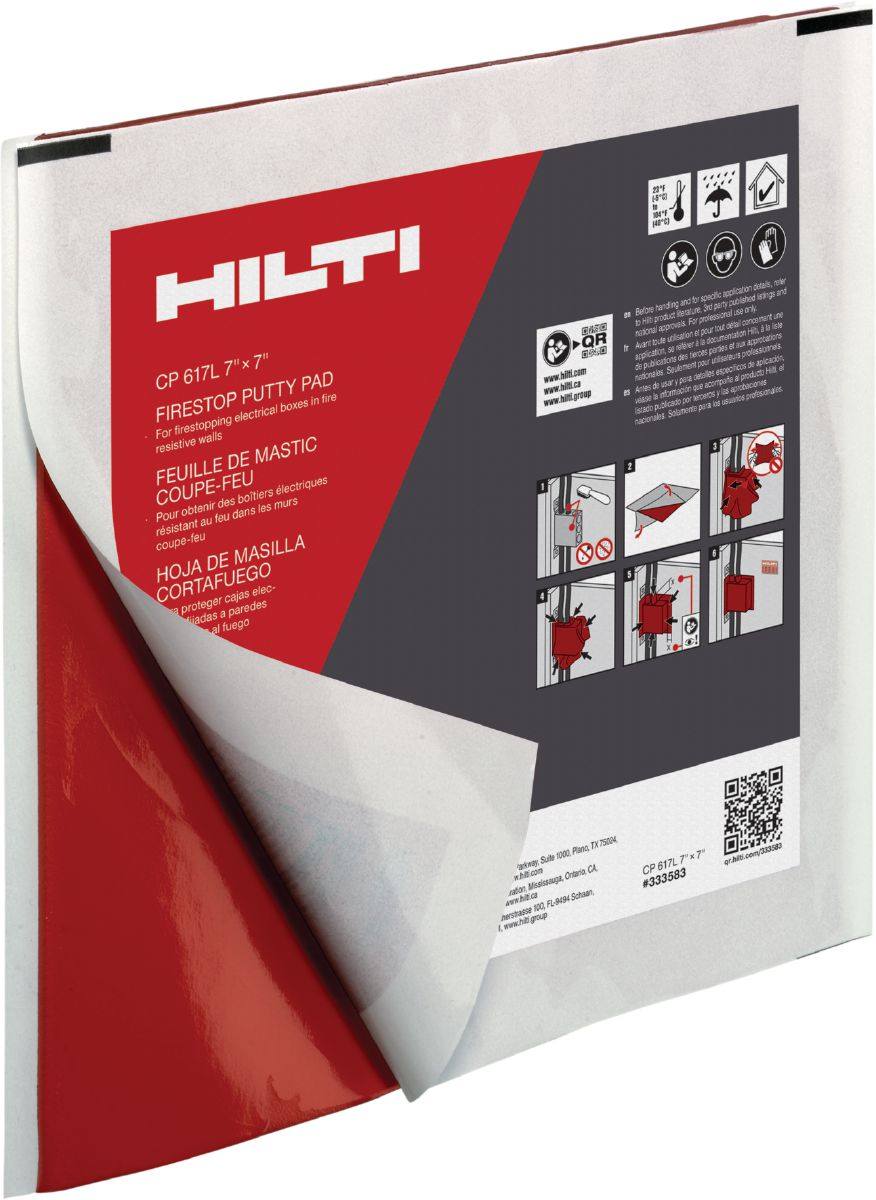

Firestop putty pad CP 617L 7X7 #333583

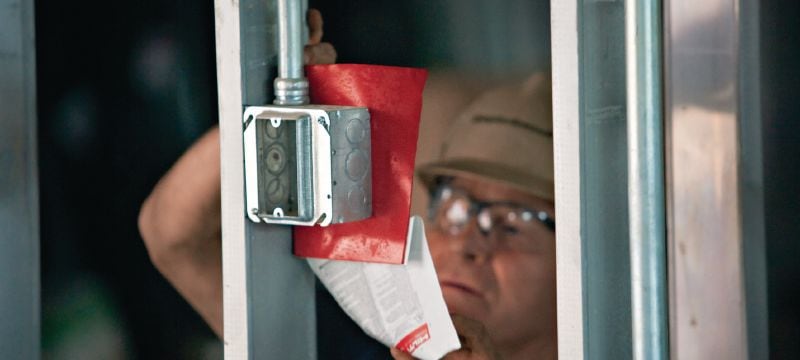

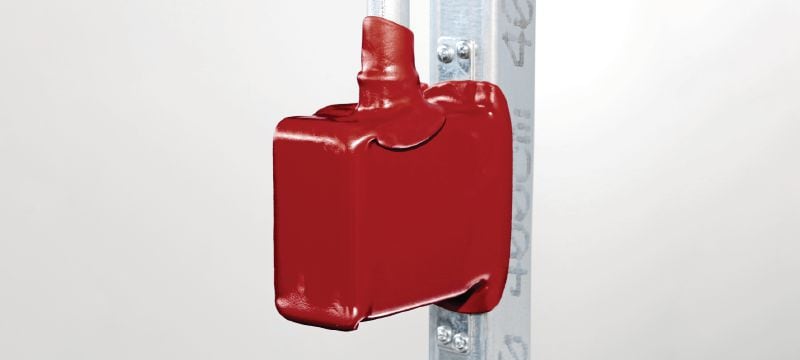

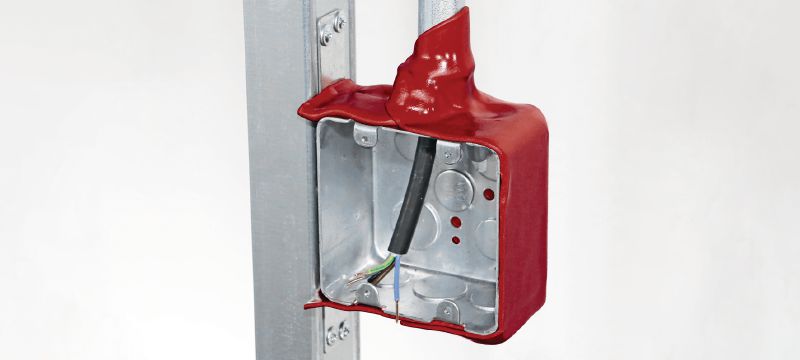

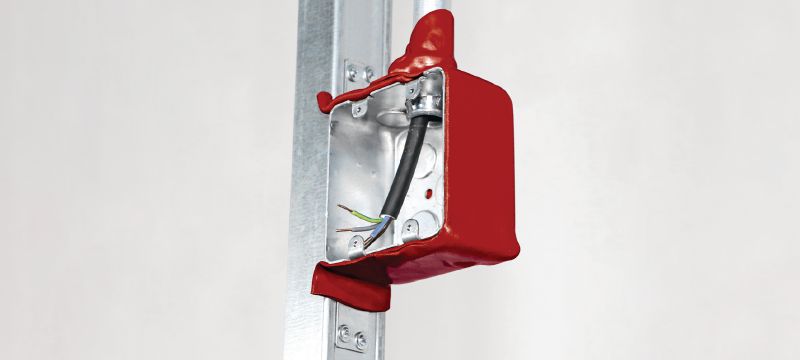

Moldable firestop putty to help protect electrical outlet boxes, junction boxes and metallic washer/dryer boxes
- Base materials: Gypsum, Wood, Metal
- Color: Red
- Surface burning characteristics UL 723 (ASTM E84): Flame spread: 15<BR>Smoke development: 10
ultimate
Customers also searched for outlet, pad, electric, puddy or putty.
Choose options
Dimensions (LxWxH)
- 177.8 x 177.8 x 3 mm
Pack size
- 20 pc
Quantity
Packs
Total Pieces
20
Discounted net
BD 1,135.80
BD 9.46 / 1 each
Technical Data
Base materials
Gypsum, Wood, Metal
Color
Red
Surface burning characteristics UL 723 (ASTM E84)
Flame spread: 15<BR>Smoke development: 10
LEED VOC
2 g/l
Application temperature range
0 - 40 °C
Temperature resistance range
-20 - 60 °C
Product Class
Ultimate
Documents
Features & Applications
Features
- Excellent adhesion to gypsum, metal and plastic
- Putty remains flexible over time
- Pad can be molded by hand without leaving residue on hands
- Quick and simple to install
- Low electrical conductivity
Applications
- Commercial and residential applications
- Acoustically rated drywall - sound transmission classification 59 according to ASTM E90-97 (based on specific construction)
- General gypsum wall assemblies with wood or metal studs
