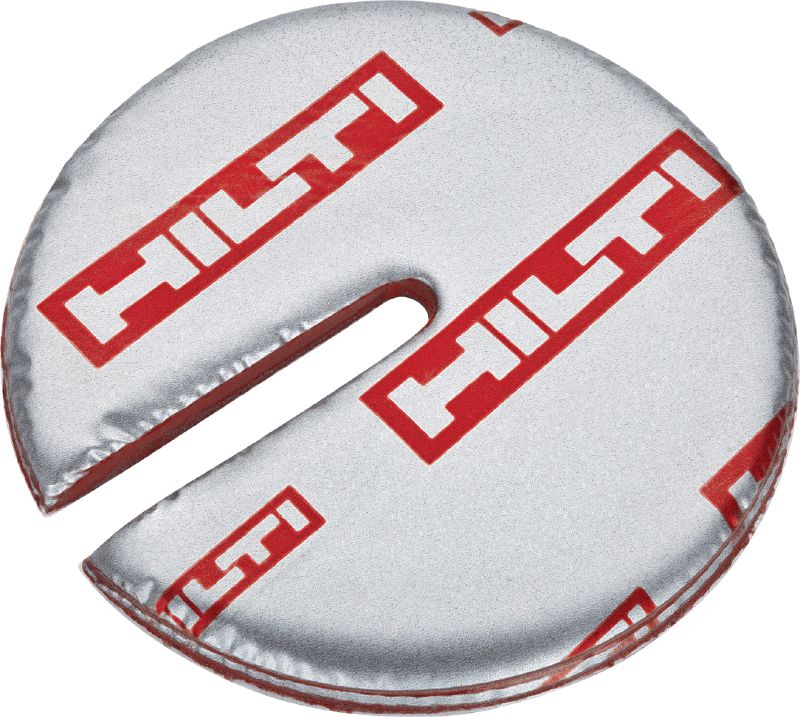

CFS-D 1'' Firestop putty disc
Self-adhesive discs of firestop putty for single cables, conduits and bundles in openings up to 1"
- Base materials: Gypsum, Wood, Metal
- Color: Red
- Surface burning characteristics UL 723 (ASTM E84): Flame spread: 0<BR>Smoke development: 5
ultimate
Customers also searched for putty disc, putty, cable, 1" or disc.
Choose options

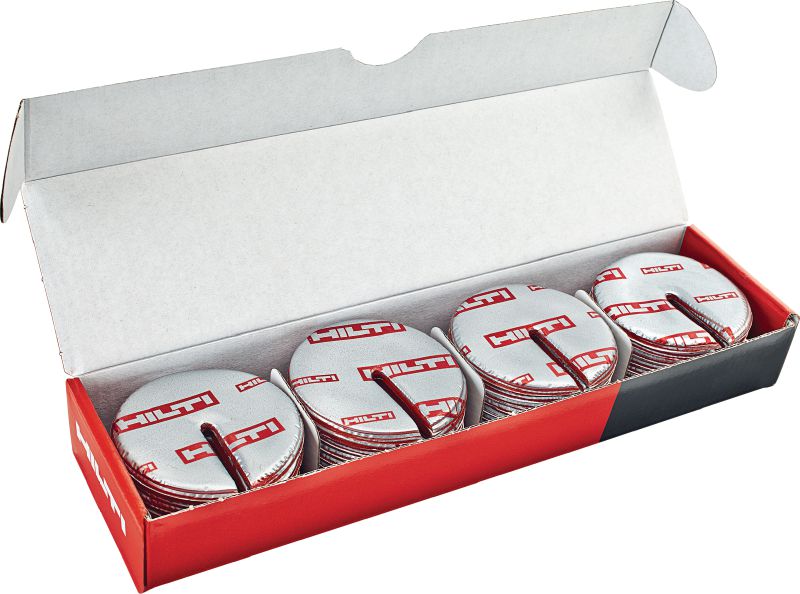

Pack size
- 32 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 53.50
Technical Data
Base materials
Gypsum, Wood, Metal
Color
Red
Surface burning characteristics UL 723 (ASTM E84)
Flame spread: 0<BR>Smoke development: 5
LEED VOC
5 g/l
Application temperature range
-0 - 40 °C
Temperature resistance range
-20 - 40 °C
Product Class
Ultimate
Documents
Features & Applications
Features

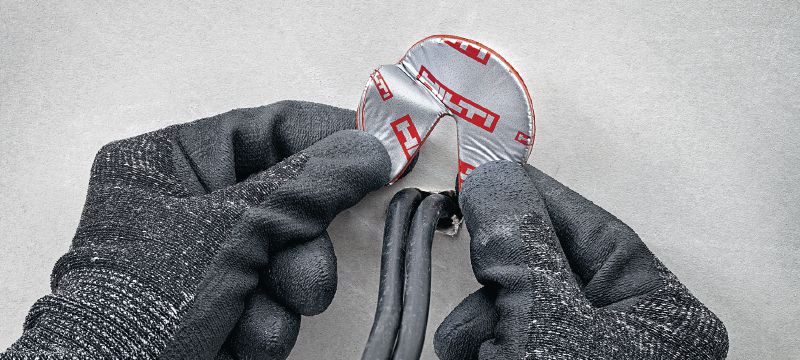

- Faster – putty discs can be installed in 10 seconds: peel, stick, done!
- Simpler – sealant-free and no backfill needed
- Versatile – fire barrier for virtually all applications involving low-voltage and mid-voltage cables, conduits (plastic and metal) and base materials (gypsum, concrete, masonry and wood)
- Suitable for sealing membrane or complete through-penetrations
- Acoustically tested according to ASTM E 90-09
Applications

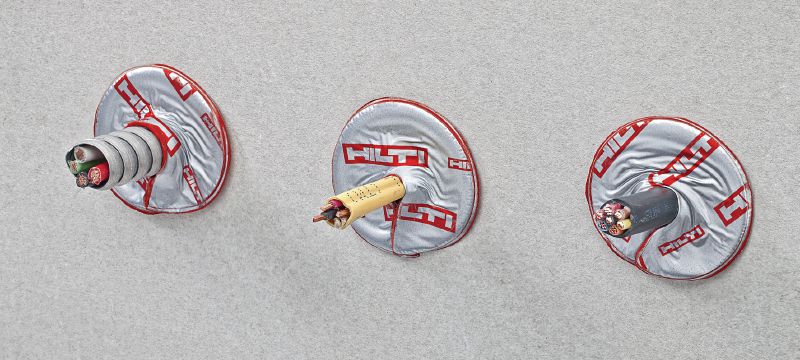

- Pre-formed firestopping solution for single cables and small cable bundles in openings up to max. 1"
- For use on drywall, masonry, concrete and wood floor / ceiling assemblies
- Suitable for a broad range of low-voltage and mid-voltage cables
- Suitable for electrical metal tubing and rigid or flexible steel conduits

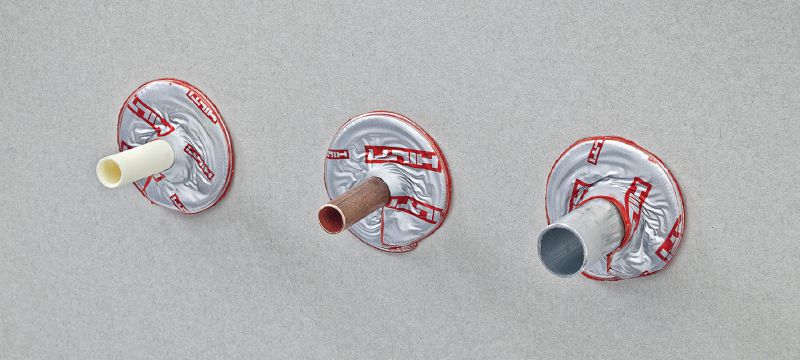

- Small pipe penetrations: PE, copper, steel and cast iron
For approval or certificate information, please see individual items.
