CP 636 Firestop mortar

Configurator
Technical Data
Documents
Features & Applications
Related Products

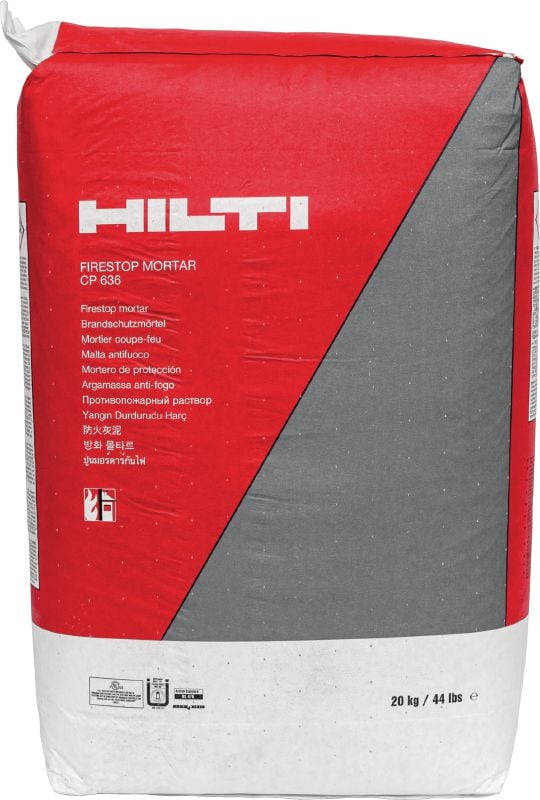

Firestop Mortars CP 636 bag

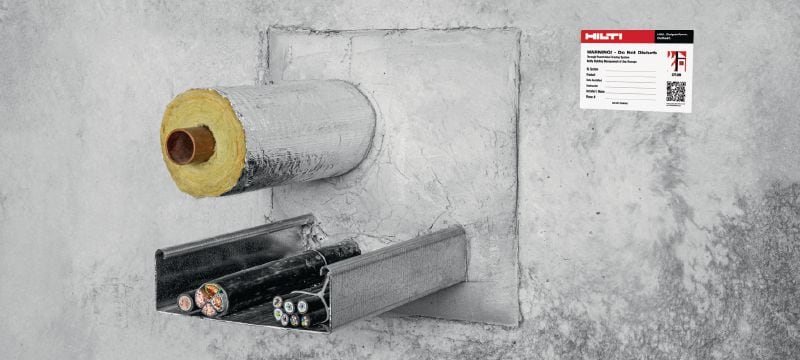

Application picture of firestop mortar

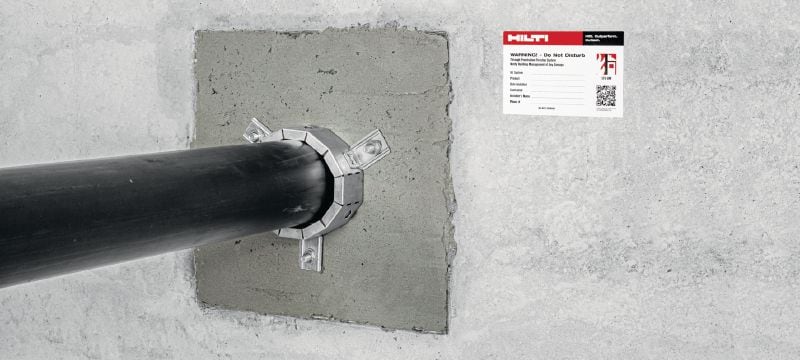

Firestop mortar pipe application with firestop wrap strip

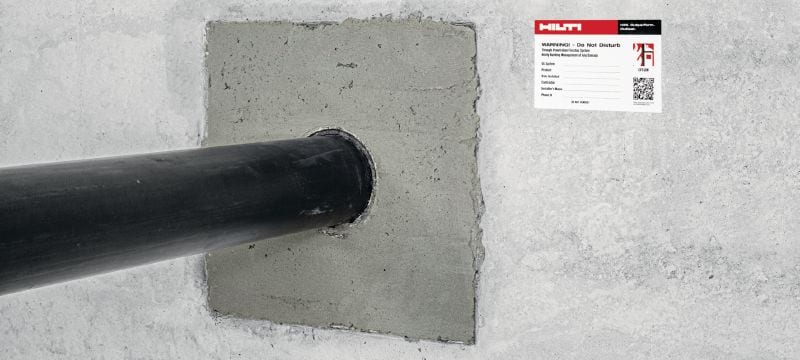

Application image of firestop mortar pipe application with firestop collar
Mortar application wo ID plate, CP_636_M_RG_00018951_15cm.eps

Firestop mortar to help prevent fire and smoke from spreading through large openings with cable, pipe and mixed penetrations

  • Base materials: Concrete, Masonry
  • Color: Grey
  • Approx. mix ratio: 2.5:1 (Mortar to Water by Weight)
ultimate

Choose options

Packaging
  • Bag
Weight
  • 20 kg
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From BD 84.60

Technical Data

Base materials
Concrete, Masonry
Color
Grey
Approx. mix ratio
2.5:1 (Mortar to Water by Weight)
Max. compressive strength after 28 days
2.5 N/mm²
Application temperature range
5 - 30 °C
Product Class
Ultimate

Documents

Brochure
HSE Information
Material safety datasheet
Sustainability Documentation
pdf Brochure_W4580_0523_g_Data_Center_Solutions__en_2023 [ 5.9 MB ]

Features & Applications

Features

  • Easier to install – consistency can be varied for application with a trowel or commercially available pumps
  • Excellent thermal insulating properties
  • Minimal shrinkage during curing and no spalling in event of fire

Applications

  • Permanent firestopping of cables, cable trays, and non-combustible pipes in medium to large wall and floor openings
  • Single, multiple and mixed penetrations
  • Medium to large multiple penetrations in concrete and masonry in combination with other products

For approval or certificate information, please see individual items.
