PS 50 Multidetector
Versatile detector to find rebar, pipes, live wire and wood for safe drilling
- Max. detection depth for object localization: 150 mm
- Accuracy of depth indication: ±3/8 in
- Localization accuracy: ±5 mm
Customers also searched for detection scanner, concrete scanning, scanner or concrete scanner.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 1,473.41
Technical Data
Max. detection depth for object localization
150 mm 1
Accuracy of depth indication
±3/8 in 2
Localization accuracy
±5 mm 3
Minimum distance between two neighbouring objects
40 mm
Operating temperature range
-10 - 50 °C
Maximum operating time
5 h
Working temperature range
-10 - 50 °C
Weight with batteries
1 kg
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
Features & Applications
Features

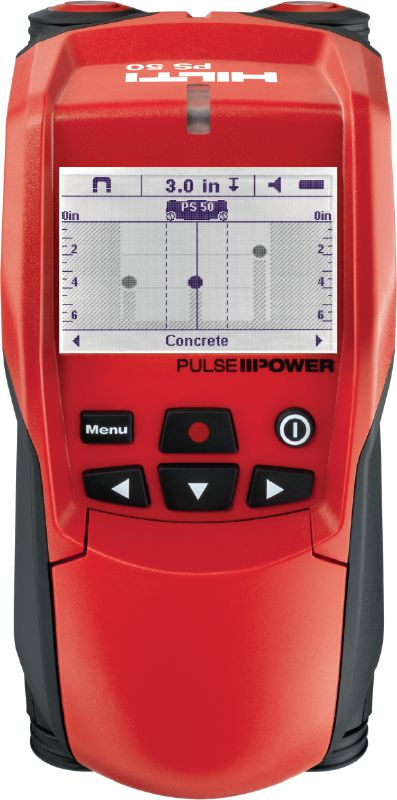

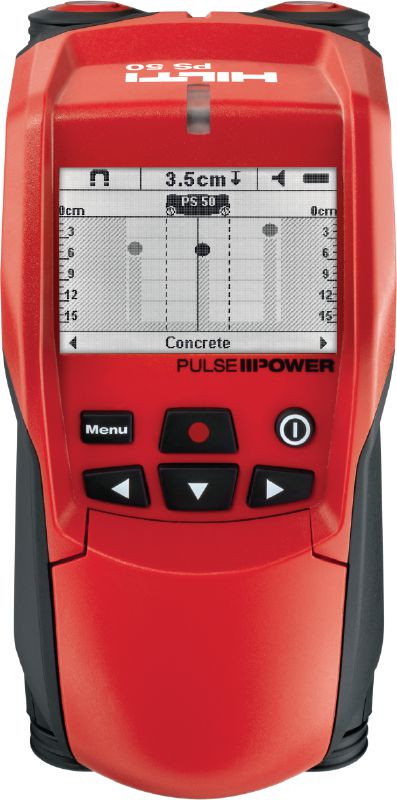

- Built-in display – shows location, embedment depth and type of detected objects at a glance
- Detection of a wide range of objects thanks to the combination of multiple sensor technologies
- User-friendly menu for selection of the appropriate base materials – universal, concrete, wet concrete, underfloor heating, drywall or hollow brick
- Ergonomically designed and ruggedly built – shock, dust and water-resistant
- Helps you drill right the first time – knowing where to drill helps avoid costly repairs, saves time and prevents drill bits from being destroyed by rebar
Applications
- Detecting metal, wood or plastic objects and electrical conduits at depths up to 150 mm
- Quickly and easily locating objects under the surface of structures prior to drilling, coring, sawing or slitting
- Drilling anchor holes or through penetrations for pipe and cable installations with minimized risk of hitting concealed objects

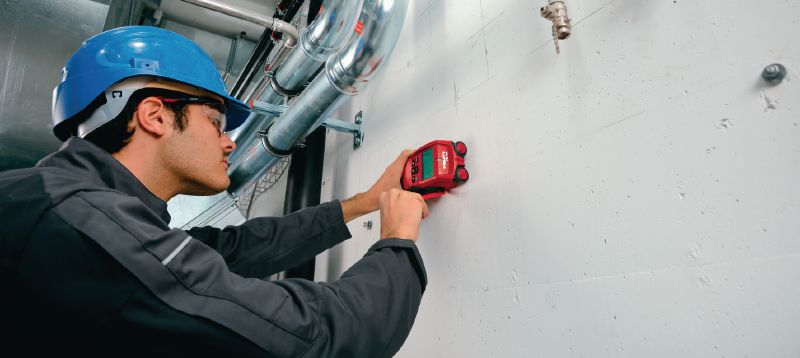

- Locating underfloor heating pipes or other pipe and cable runs
- Setting anchors in hollow or thermally activated slabs
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- After no-cost period repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
- After no-cost period repair costs are capped for as long as we service the tool
- After every paid repair again 3-month no-repair-cost period
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
