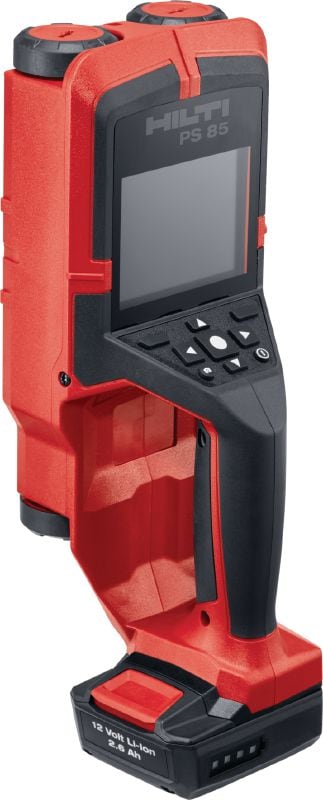

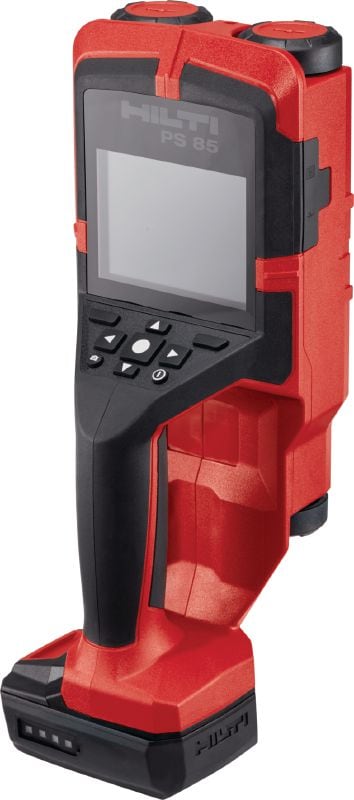

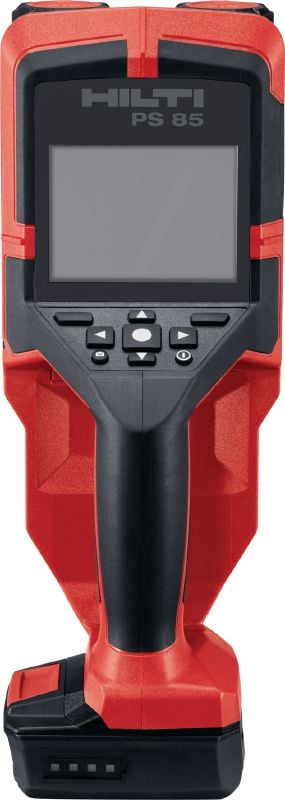

PS 85 Wall scanner
Easy-to-use wall scanner and stud finder for hit prevention when drilling or cutting near embedded objects
- Max. detection depth for object localization: 200 mm
- Accuracy of depth indication: 5 to 10 mm (+/-) mm
- Localization accuracy: 5to 10 mm (+/-) mm
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 688.55
Technical Data
Max. detection depth for object localization
200 mm 1
Accuracy of depth indication
5 to 10 mm (+/-) mm 2
Localization accuracy
5to 10 mm (+/-) mm 3
Minimum distance between two neighbouring objects
40 mm
Data memory (scanner)
Approx. 200 scans (SD) approx. 10 scans (internal flash memory)
Maximum operating time
8 h
Working temperature range
-10 - 50 °C
Dimensions (LxWxH)
264 x 115 x 100 mm
Weight with batteries
1 kg
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
Features & Applications
Features
- Versatile and user-friendly wall scanner to help you avoid damage caused by drilling in the wrong place
- Easier to use – large display, efficient menus and the option to export scan data via SD card
- Upgraded ergonomics – light with large handle to keep the tool firmly in your grip
- Built to last – shock- and dust- resistant to better withstand construction site conditions
- Hilti battery platform – power this wall scanner using the same Li-ion batteries (2.6 and 4.0 Ah) as all your other Hilti 12V cordless tools
Applications
- Locating embedded objects for hit prevention when drilling, coring, cutting or slitting (up to 85 mm depth, depending on material) on the wall
- Estimating the material and size of hidden objects – multiple sensors for rebar, live wires, wooden substructures, metal and plastic pipes
- Equipped to scan through concrete (wet and dry), brick, drywall and tiles
- Locating embedded objects for hit prevention when drilling, coring, cutting or slitting (up to 3-3/8” depth, depending on material) on the wall
For approval or certificate information, please see individual items.
