PS 300 Ferroscan system

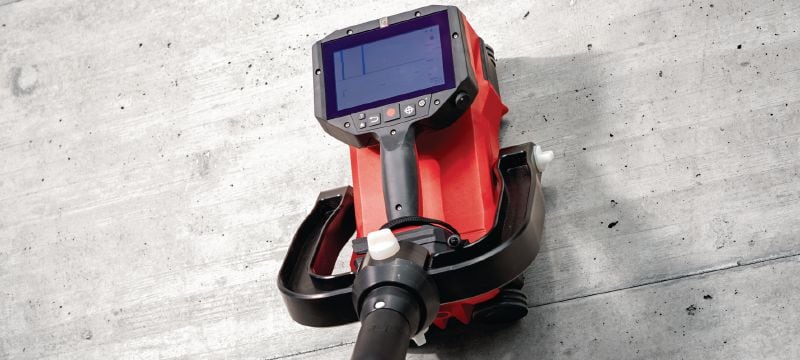

Ferroscan PS 300 with quick scan, 2D

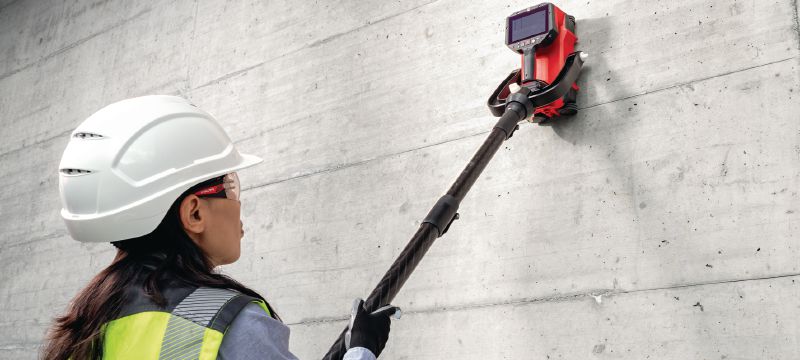

Ferroscan PS 300 with extension at bridge

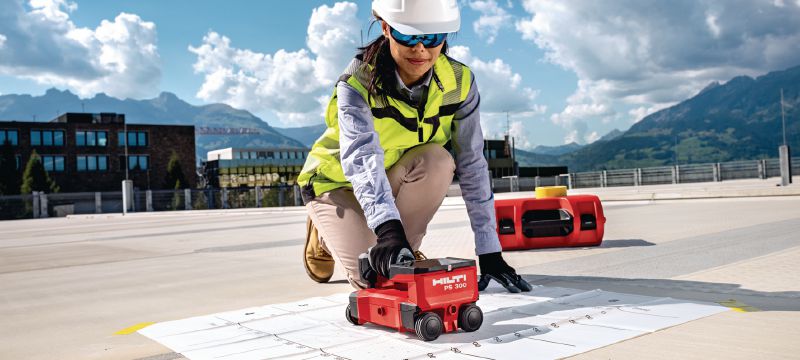

Ferroscan PS 300 with extension at parking garage

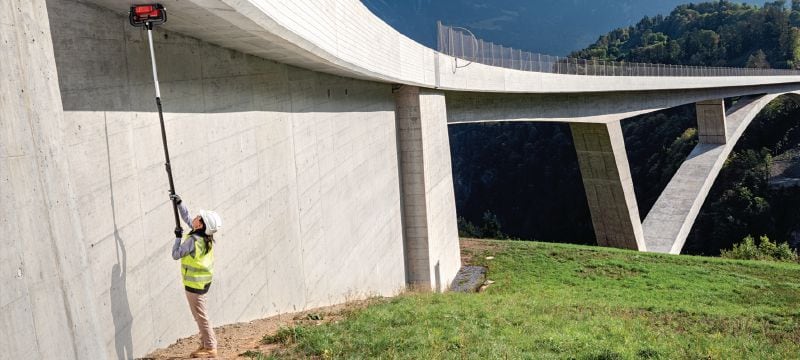

Ferroscan PS 300 with extension at bridge
Ferroscan PS 300 with extension at bridge

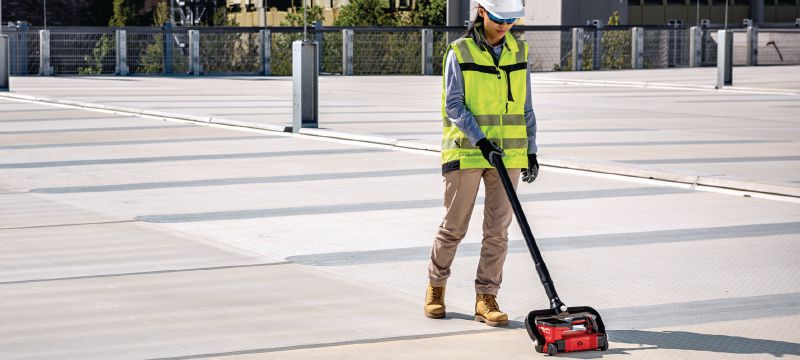

Ferroscan PS 300 with image scan at parking garage

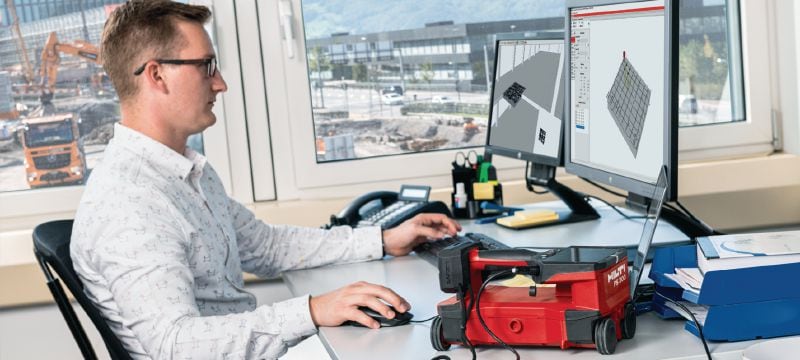

Ferroscan PS 300 with profis Detection in office

Concrete detector for rebar localization, depth measurement and size estimation in structural analysis

  • Max. detection depth for object localization: 200 mm
  • Accuracy of depth indication: 1% +/-3mm
  • Localization accuracy: 1% +/-3mm mm

Customers also searched for rebar scanner, concrete scanner, scanner or concrete scanning.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Max. detection depth for object localization
200 mm 1
Accuracy of depth indication
1% +/-3mm 2
Localization accuracy
1% +/-3mm mm 3
Minimum distance between two neighbouring objects
30 mm
Data memory (scanner)
200 scans
Working temperature range
-10 - 50 °C
Weight with batteries
2 kg
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  3. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

pdf White paper post installed rebar in Tunneling, English [ 1.6 MB ]

Features & Applications

Features

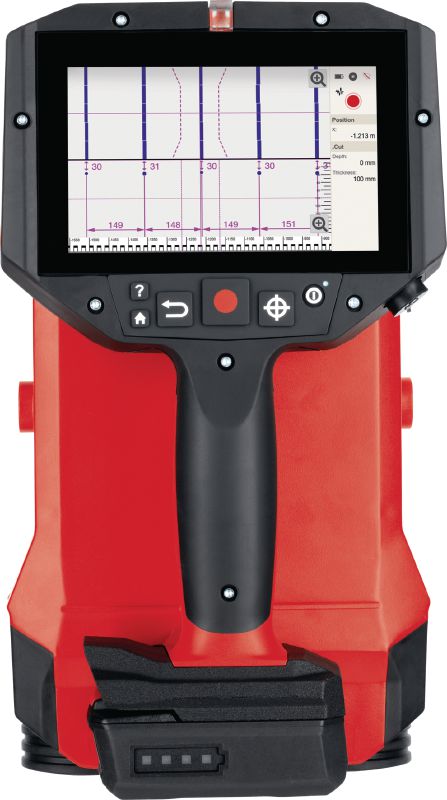

  • Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot structural analysis
  • Smart algorithm helps accurate depth measurements for rebar
  • Wide sensor area enables quick and easy scan over large areas
  • Record scan data for documentation and structural analysis

Applications

  • Verification and analysis for 1st layer rebar
  • Checking concrete cover over large areas for structural repair work
  • Building acceptance inspections and quality control
  • Generation of structural assessment reports including statistics and visual presentation in 2D/3D views of areas

For approval or certificate information, please see individual items.

Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency.
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
