PD-E Laser meter
Outdoor laser meter with integrated viewfinder for measurements up to 200 m / 650 ft
- Measuring range: 0 m - 200 m
- Measurement accuracy: 1.0 mm
- Measuring functions: Single and continuous measurement, Outdoor mode, Digital water level
Customers also searched for laser distance meter, laser meter, laser tape measure, laser measure or laser distance measurer.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 763.54
Technical Data
Measuring range
0 m - 200 m
Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Outdoor mode, Digital water level
Calculation functions
Addition, Subtraction, Area, Volume, Painters area, Setting out, Min/max, Timer, Offset, Memory (30x), Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x)
Data memory
30 last measurements, Calculation results with graphics
Battery type
2 x 1.5 V (AAA)
Laser class
< 1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 65 (EN 60529)
Interface
None
Documents
Features & Applications
Features
- High-quality laser module enables long-range measurements even under the toughest outdoor conditions
- Purpose-built outdoor display can be read even in very bright sunlight
- Built-in optical viewfinder for outdoor measurements
- Rugged and durable to resist hard jobsite environments
- Built-in 360° tilt sensor and smart estimation functions support measurements in challenging situations
Applications

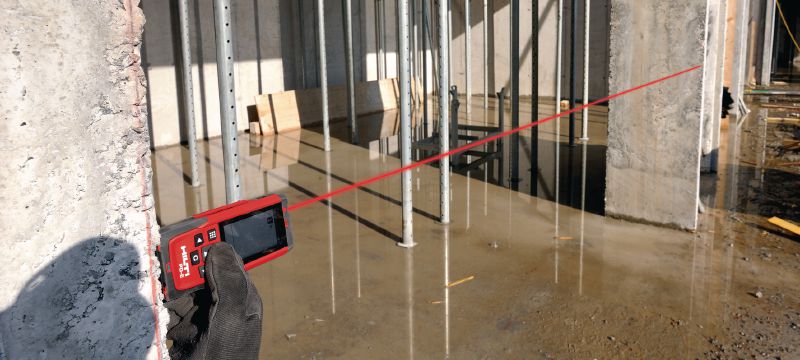

- Measuring quickly and safely in places where access is difficult
- Measuring surface areas for quotations in renovation work
- Determining the length or height of objects that cannot be directly accessed (remote measurement)
- Measuring long distances using outdoor mode
- Easy measurement of roof lengths using the trapezoid function
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- After no-cost period repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
LifeTime Services
- 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
- After no-cost period repair costs are capped for as long as we service the tool
- After every paid repair again 3-month no-repair-cost period
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
