Nuron

PM 50MG-22 multi-line laser

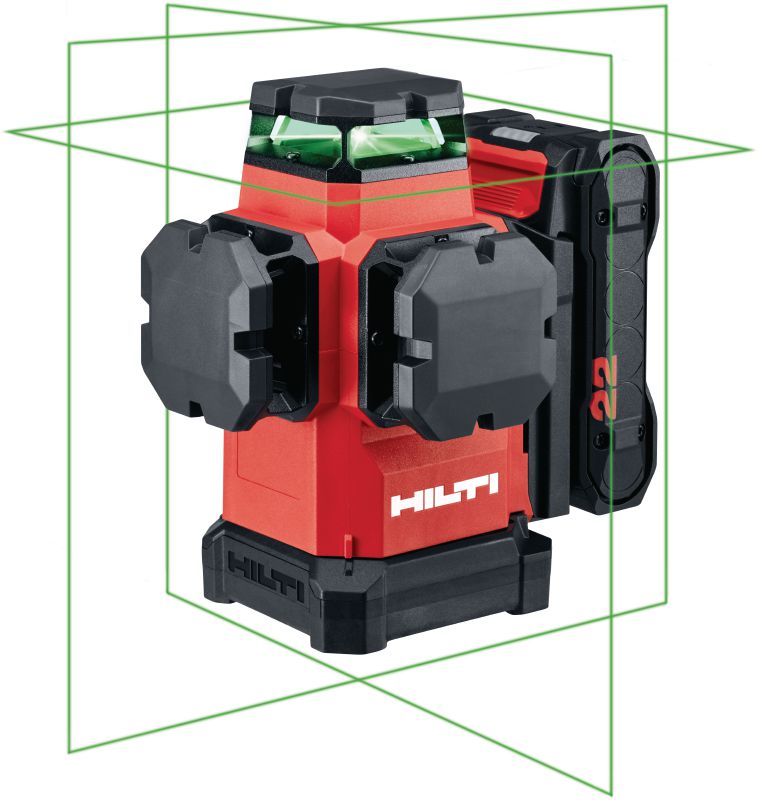

3D Still life picture of the multi line laser PM 50MG-22 with 3 * 360 degree lines and B22-55 battery

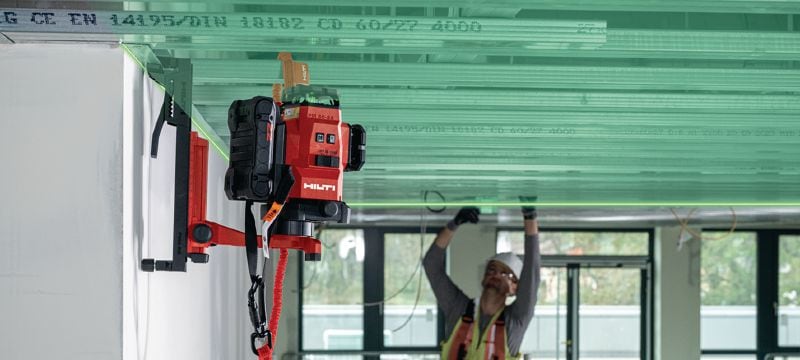

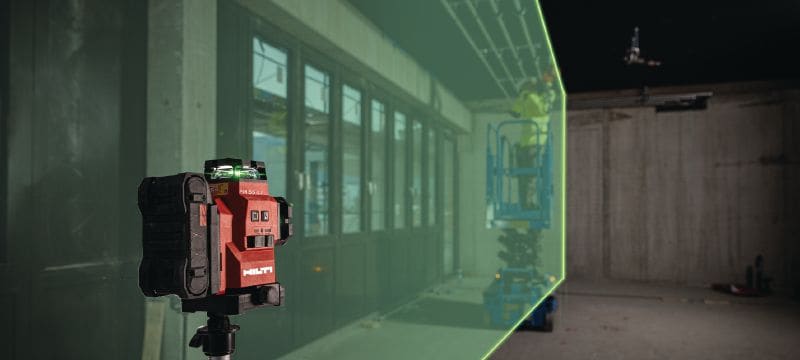

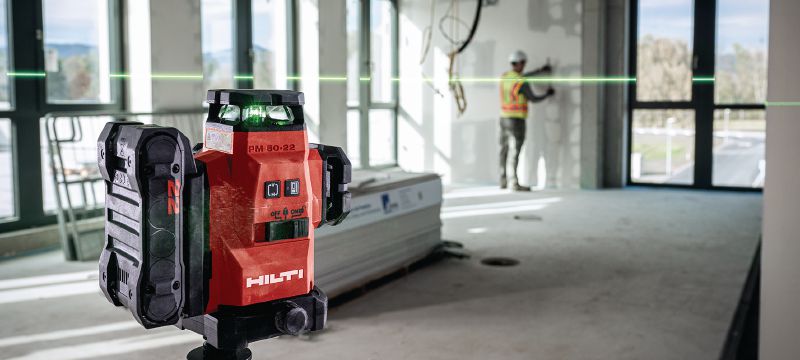

Cropped application picture of the multi line laser PM 50MG-22. For leveling, aligning, squaring and plumbing with a single setup point
Cropped application picture of the multi line laser PM 50MG-22. For leveling, aligning, squaring and plumbing with a single setup point
Cropped application picture of the multi line laser PM 50MG-22. For leveling, aligning, squaring and plumbing with a single setup point

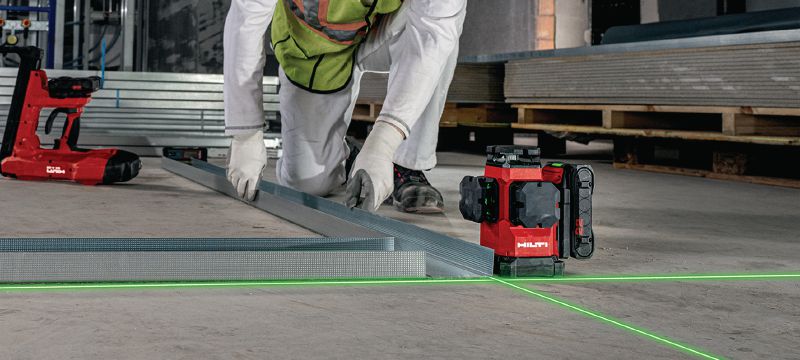

Cropped application picture of the multi line laser PM 50MG-22. Drywall application.

High visibility self-levelling laser with 3 green 360° queues and 15+ hours of run time for leveling, aligning, squaring and plumbing (Nuron battery platform)

  • Accuracy: ±3 mm at 10 m
  • Max. operating distance (diameter): 80 m (lines), 130 m (lines, with receiver)
  • Battery type: 22 V

Customers also searched for Nuron laser, green laser level, multiline laser, green laser or laser level.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From BD 978.08

Technical Data

Accuracy
±3 mm at 10 m
Max. operating distance (diameter)
80 m (lines), 130 m (lines, with receiver) 1
Battery type
22 V
Self leveling range at room temperature
-4.250/ +4.250° °
Self leveling time
3 s
Horizontal fan angle
360 °
Vertical fan angle
360 °
IP protection class
IP 54 (EN 60529)
Laser type
Line
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

pdf Material safety datasheet LI-ION-BATTERIES <100Wh (AR) [ 254.5 KB ]
pdf Material safety datasheet LI-ION-BATTERIES <100Wh (EN) [ 182.8 KB ]

Features & Applications

Features

  • Our highest visibility laser – new powerful laser diodes produce brighter and sharper queues even at long-range, helping you align with fewer setups and work easier in daylight conditions
  • Our longest lasting run time – 22V Nuron platform delivers between 15 hours (B22-55) and 24 hours (with B22-85) of continuous use so that you can work longer per charge and reduce downtime
  • Robust design – improved drop-resistant industrial housing with rubber dampers and temperature and humidity protection helps PM 50MG-22 to last longer and stay accurate throughout its lifetime
  • Smarter features with Nuron – smart asset tracking, battery life indication and Nuron battery platform compatibility to help reduce complexity and keep your tool park cost-efficient
  • Compatible safety accessories – optional tool tether helps prevent drops and improve user safety during overhead applications

Applications

  • Three 360° laser planes (one horizontal and two vertical) for leveling, aligning, squaring and plumbing with a single setup point
  • Aligning plasterboard profiles on floors, walls and ceilings and vertically aligning pipes and cables
  • Leveling suspended ceilings
  • Transferring metre marks (reference heights)
  • Leveling and aligning sockets, cable routes, radiators and pipes

For approval or certificate information, please see individual items.
