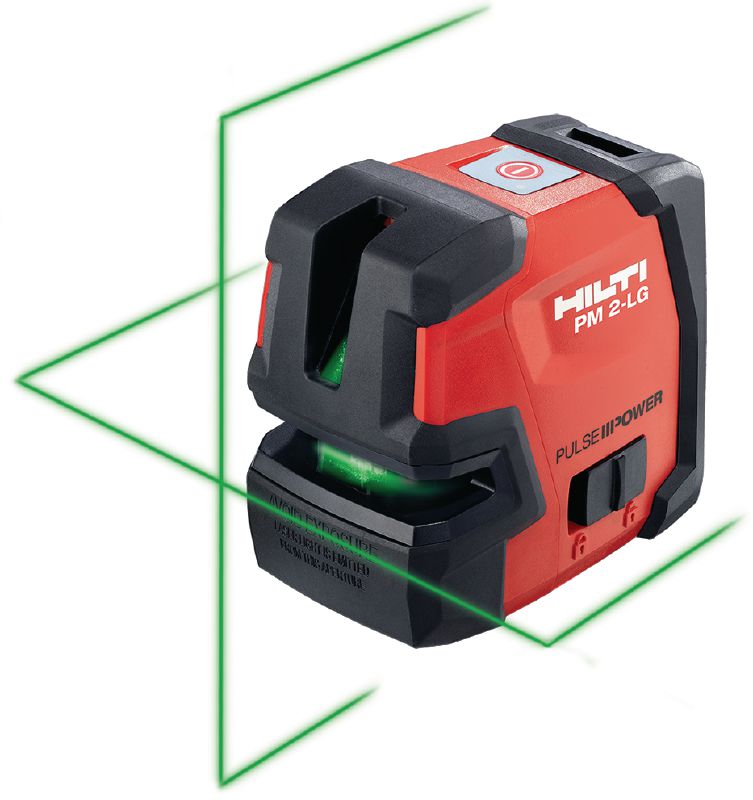

PM 2-LG Line laser level
Line laser with 2 lines for leveling, aligning and squaring with green beam
- Accuracy: ±3 mm at 10 m
- Max. operating distance (diameter): 40 m (lines), 100 m (lines, with receiver)
- Maximum operating time: 14 h
Customers also searched for laser line, laser line level, laser straight line, layout laser or self leveling laser.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Accuracy
±3 mm at 10 m
Max. operating distance (diameter)
40 m (lines), 100 m (lines, with receiver) 1
Maximum operating time
14 h
Battery type
4 x 1.5 V (AA)
Self leveling range at room temperature
±4 °
Self leveling time
3 s
Horizontal fan angle
180 °
Vertical fan angle
135 °
IP protection class
IP 54 (EN 60529)
Laser type
Line
- Operating distance can be significantly affected by site conditions. See operating instructions.
Features & Applications
Features
- Green beam for best visibility up to 20 m/66 ft in vertical and horizontal layout tasks
- Compact size allows high-speed layout
- Rubber-coated housing and pendulum lock for higher robustness
- Out-of-level and low-battery alerts – help prevent mistakes and unexpected downtime
- Laser class 2 – no special precautionary measures needed
Applications
- Transferring reference heights
- Leveling suspended ceilings
- Leveling electric sockets, cable trays, radiators and pipe installations
- Leveling and aligning doors and windows
- Aligning pipes vertically
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- After no-cost period repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
- After no-cost period repair costs are capped for as long as we service the tool
- After every paid repair again 3-month no-repair-cost period
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
