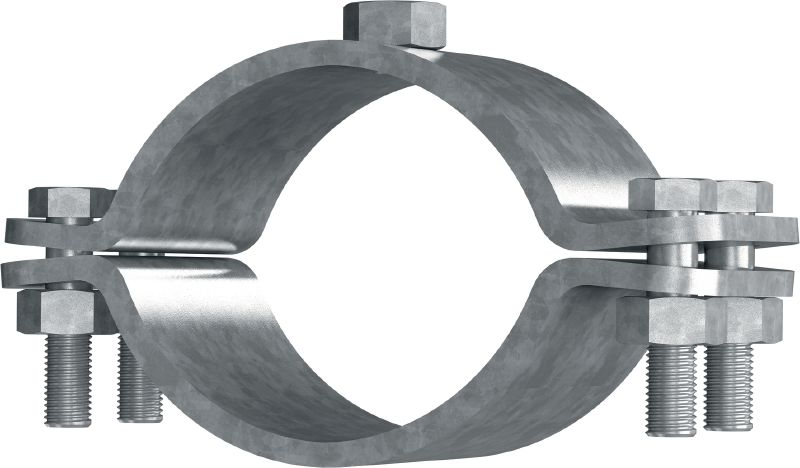

MFP-F Fixed point pipe clamp
Fixed point pipe ring MFP-193/200 M20-F #304247
Hot-dip galvanized (HDG) fixed point pipe clamp for maximum performance in heavy-duty applications
- Clamping Range - D: 193 - 200 mm
- Thread connection - M: M20
- Material composition: S235JR - DIN EN 10025
premium
Choose options
Clamping Range - D
- 193 - 200 mm
Thread connection - M
- M20
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
BD 660.98
BD 110.16 / 1 each
Technical Data
Clamping Range - D
193 - 200 mm
Thread connection - M
M20
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Clamping screw
M16
Cross Section Thickness - s
8 mm
Cross section width - b
90 mm
Width - B
322 mm
Distance between holes - A
299 mm
Product Class
Premium
Distance center pipe to top - h
114 mm
Documents
Features & Applications
Features
- Facilitates quicker and easier installation together with MFP fixed point sets
- Versatile – modular assembly can be matched to specific technical requirements
- Tested and verified loads – technical data available
Applications

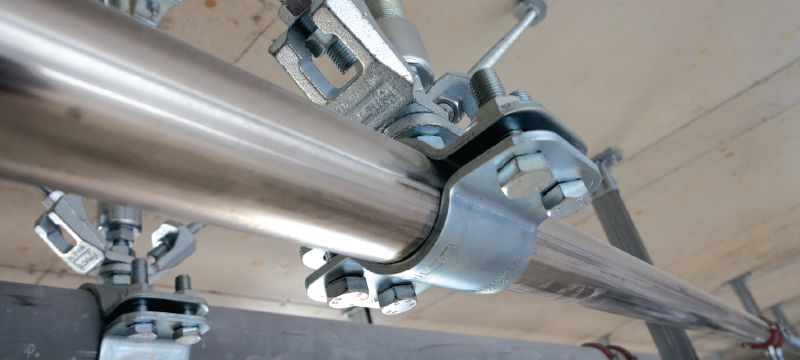

- Installing pipes up to 273 mm diameter exposed to temperature changes in moderately corrosive environments
- Installing fixed points in combination with the different MFP fixed point sets
