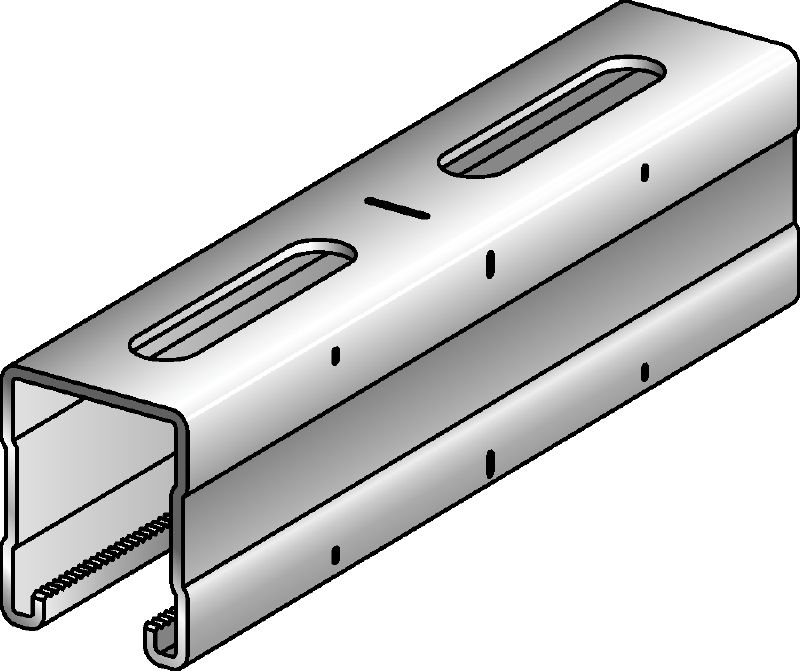

MQ-52 C-Channel profile

Install. channel MQ-52 6M #369598

Galvanized C-Channel profile for medium-duty applications

  • Height: 52 mm
  • Material thickness: 2.5 mm
  • Material composition: S250GD - DIN EN 10346

Choose options

Length
  • 6 m
Pack size
  • 6 m
Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

50 Packs (Total pieces 300)

Discounted net

BD 3,856.80

BD 12.86 / 1 m

Technical Data

Height
52 mm
Material thickness
2.5 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
17652 g

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Optimized hole pattern – for more flexible attachment options
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system

Applications

  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
