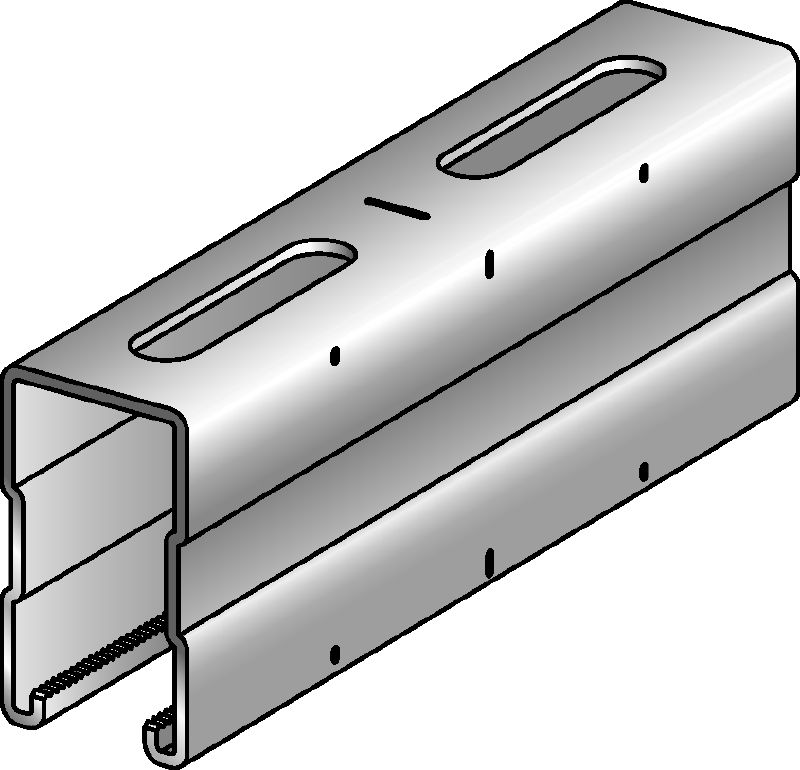

MQ-72-F C-Channel profile

Install. channel MQ-72-F 6m #304105

Hot-dip galvanized (HDG) C-Channel profile for medium-duty applications

Height: 72 mm
Material thickness: 2.75 mm
Material composition: S235JR - DIN EN 10025

Choose options

Length

6 m

Pack size

6 m

Product options

Quantity

Packs

Total m

6

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

BD 165.49

BD 27.58 / 1 m

Technical Data

Height

72 mm

Material thickness

2.75 mm

Material composition

S235JR - DIN EN 10025

Surface finish

Outdoor Coated - HDG

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Weight

25200 g

Documents

Features & Applications

Features

C-profile with serrated edges – for higher pull-out and shear capacity
Optimized hole pattern – for more flexible attachment options
Pre-marked dimensions – for rapid installation, assembly and cutting
Versatile and flexible due to modular channel system
Sound insulation elements available for all MQ installation channels

Applications

Modular support systems for piping
Modular support systems for air ducts and cable trays
Modular support systems for 3D structures
Wall-mounted installation
Recommended for use in moderately corrosive outdoor and indoor environments
