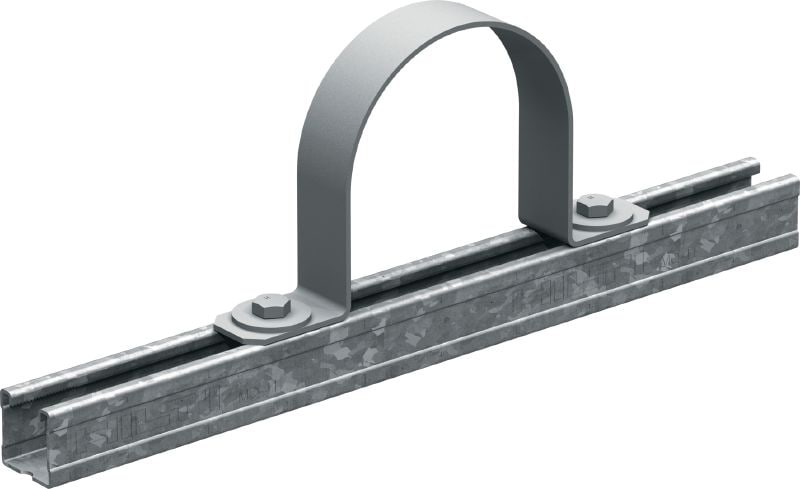

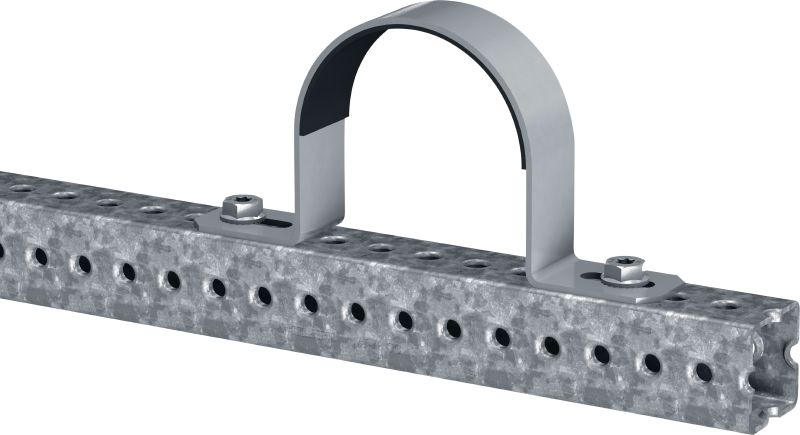

MP-US OC Pipe strap
Outdoor coated (OC) pipe strap for universal piping applications
- Material composition: DX51D-ZM300 - EN 10346:2015
- Surface finish: Outdoor Coated - ZM
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
premium
Choose options
Diameter - D
- 19.6 mm
- 23.7 mm
- 29.3 mm
- 36.1 mm
- 44.8 mm
- 51.1 mm
- 63.1 mm
- 78.9 mm
- 91.7 mm
- 104.4 mm
- 110.8 mm
- 117.9 mm
- 136.6 mm
- 143.4 mm
- 162.6 mm
- 171.9 mm
- 223.5 mm
- 277.4 mm
- 328.3 mm
Nominal pipe size (imperial)
- 3/8 in
- 1/2 in
- 3/4 in
- 1 in
- 1-1/4 in
- 1-1/2 in
- 2 in
- 2-1/2 in
- 3 in
- 3-1/2 in
- 4 in
- 5 in
- 6 in
- 8 in
- 10 in
- 12 in
Nominal pipe size
- 10 mm
- 15 mm
- 20 mm
- 25 mm
- 32 mm
- 40 mm
- 50 mm
- 65 mm
- 80 mm
- 100 mm
- 125 mm
- 150 mm
- 200 mm
- 250 mm
- 300 mm
Pack size
- 2 pc
- 10 pc
- 20 pc
- 40 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 24.30
Technical Data
Material composition
DX51D-ZM300 - EN 10346:2015
Surface finish
Outdoor Coated - ZM
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Product Class
Premium
Documents
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Designed for use with open channel profiles, closed girders and bracket arms
- Approved for sprinkler applications under VdS
- Approved for sprinkler applications under UL / NFPA
Applications

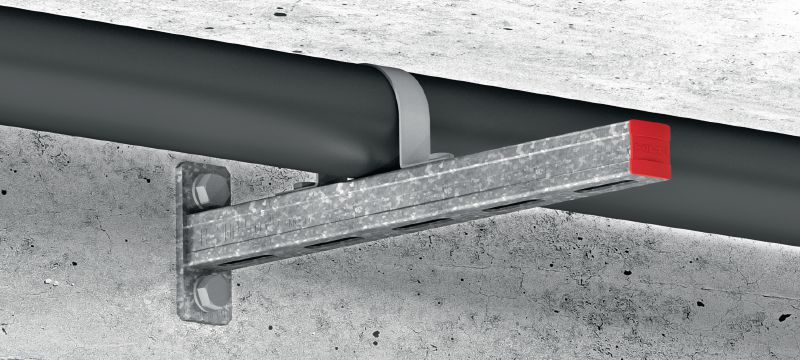

- Universal pipe fixation up to 12"
- Single-point fastening for sprinkler applications
- Installation of non-insulated pipes in industrial environment
For approval or certificate information, please see individual items.
