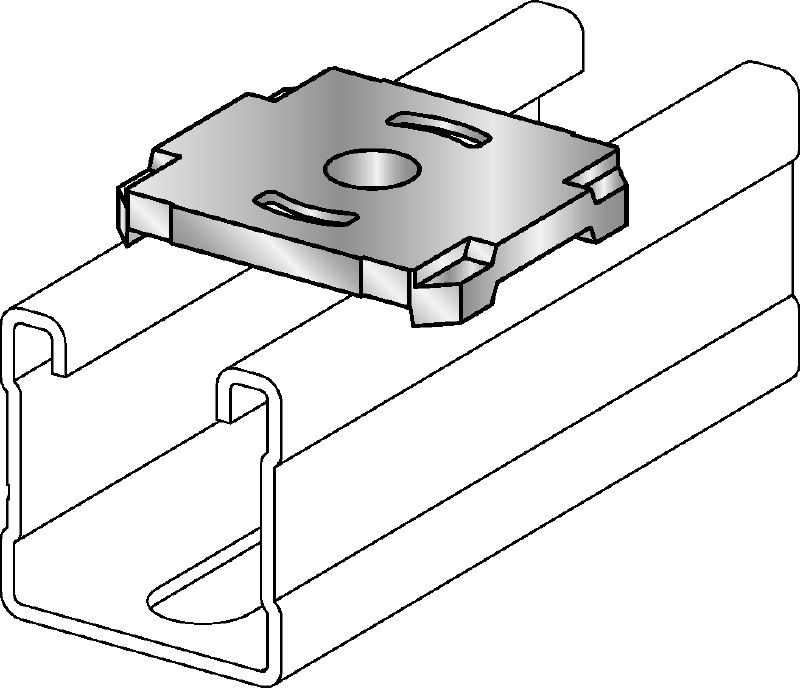

MQZ-L-F Bored plate

Bored plate MQZ-L9-F #304196

Hot-dip galvanized (HDG) bored plate for trapeze assembly and anchoring

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Hole diameter - D
  • 9.5 mm
  • 11.5 mm
  • 13.5 mm
Pack size
  • 20 pc
Product options
Quantity
Packs
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

BD 333.84

BD 1.39 / 1 each

Technical Data

Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Weight
92 g

Features & Applications

Features

  • Suitable for MQ strut channels and brackets
  • Easy-to-use single part

Applications

  • Attaching strut channels and brackets to walls, ceilings or floors

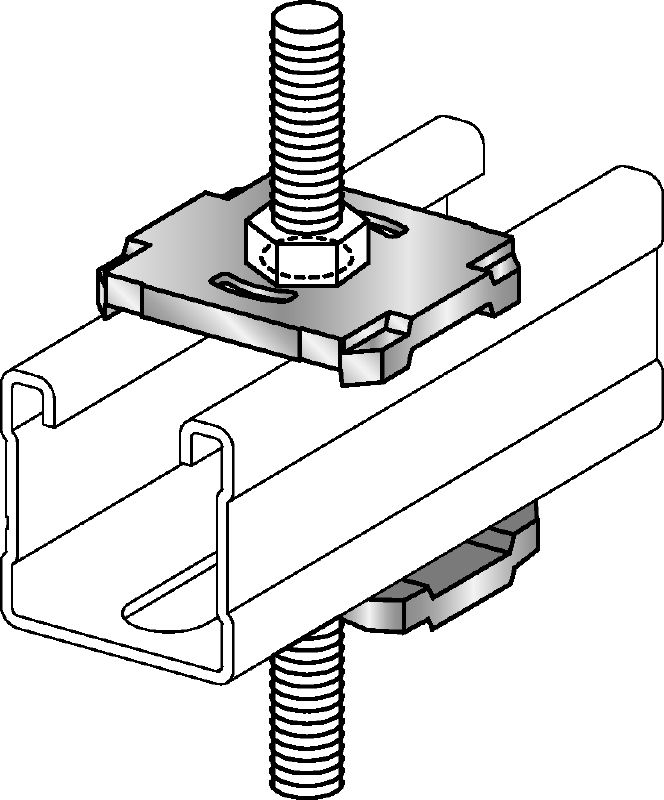

  • Wing nut or spring nut applications with channels or brackets
  • Anchor fastening of installation channels
