MQP-21-72 Channel foot

Rail support MQP-21-72 #369651

Configurator
Technical Data
Documents
Features & Applications
Related Products

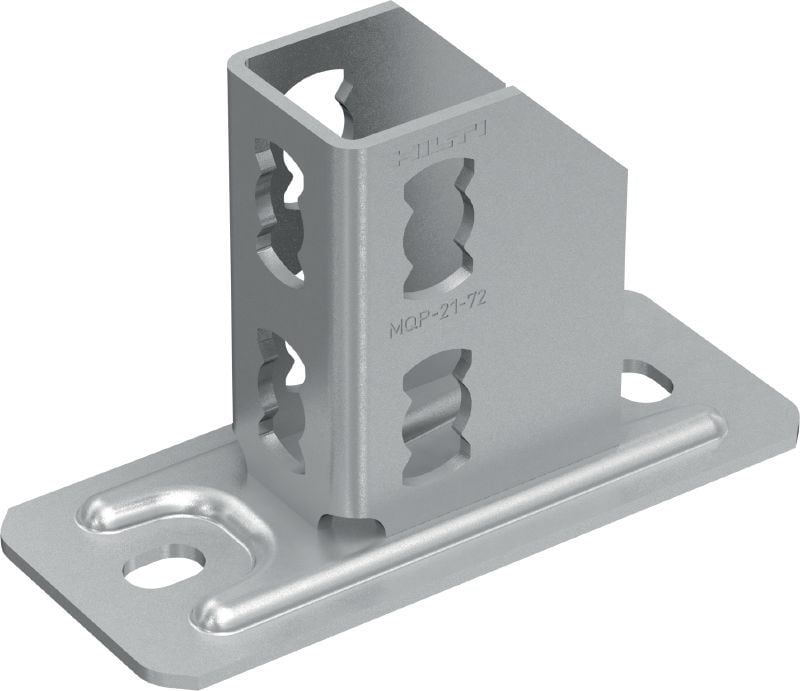

Rail support MQP-21-72
IS_ME_234.eps

Galvanized channel foot for fastening MQ channels to concrete

  • Approvals: ETA
  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanized

Choose options

Pack size
  • 12 pc
 Product options
Quantity
Packs
Total Pieces
12
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
BD 195.46
BD 16.29
/
1 each

Technical Data

Details
Technical illustrations
Approvals
ETA
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanized
Material thickness
Channel connector: 4 mm, baseplate: 4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
1231 g

Documents

Approval document
Documentation
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]

Features & Applications

Features

  • Flexibility – complete many different applications using few parts
  • Compatible with push button channel connectors – for much faster, adaptable assembly
  • Acoustic insulation – when used with the MVI-P insulation plate for MQP-21-72 rail supports

Applications

  • Connecting strut channels to concrete and steel
  • Recommended for use in dry, interior environments
