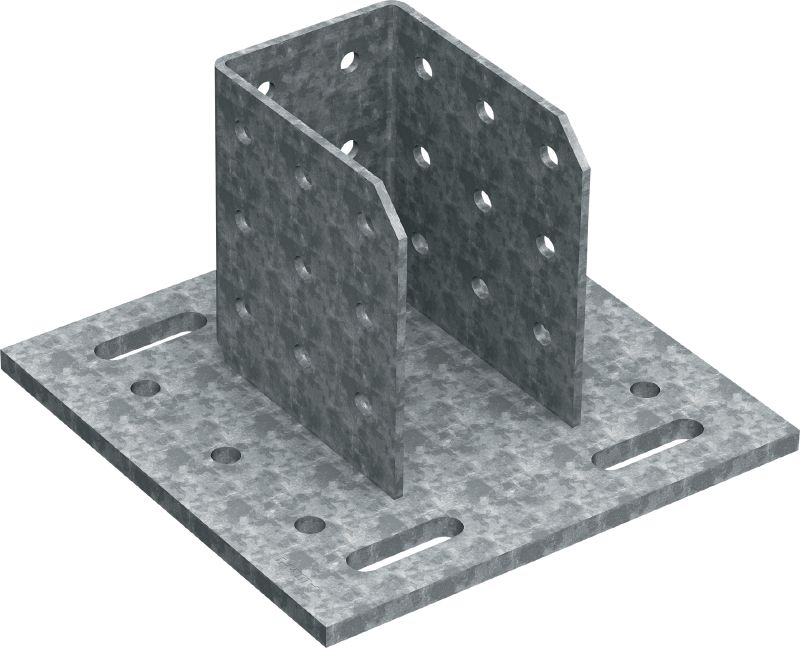

MT-B-GXL S1 OC Light-duty baseplate
Baseplate MT-B-GXL S1 OC #2272106
Base connector for fixation of MT-90 and MT-100 girder structures to steel, for outdoor use with low pollution
- Material composition: Q355 or better steel
- Surface finish: Hot-dip galvanized - for outdoor use
- Material thickness: 12 mm
Choose options
Pack size
- 2 pc
Quantity
Packs
Total Pieces
2
Discounted net
Technical Data
Material composition
Q355 or better steel
Surface finish
Hot-dip galvanized - for outdoor use
Material thickness
12 mm
Weight
9.4 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
- Adjustable – four slotted anchor holes to simplify baseplate positioning and fastening
- Adaptable – unlike welding, modular post bases allow you to modify metal framing for future MEP requirements
- Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions
Applications

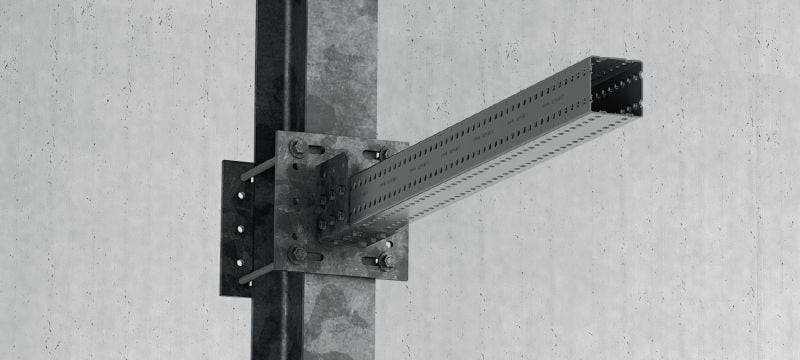

- Fastening MT-90 and MT-100 girders to structural steel
- Anchoring metal framing and MEP support structures with light loads to a base material
- Suitable for use in moderately corrosive environments
