MT-P-GXL S1 OC Sandwich plate

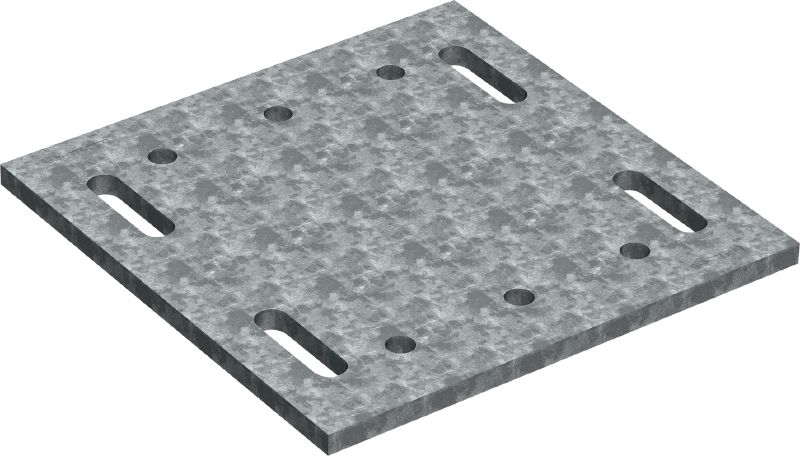

Plate MT-P-GXL S1 OC #2272110
Heavy-duty sandwich plate for fastening girder structures to steel beams, for outdoor use with low pollution
- Material composition: Q355 or better steel
- Surface finish: Hot-dip galvanized - for outdoor use
- Material thickness: 12 mm
Choose options
Pack size
- 2 pc
Quantity
Packs
Total Pieces
2
Discounted net
Technical Data
Material composition
Q355 or better steel
Surface finish
Hot-dip galvanized - for outdoor use
Material thickness
12 mm
Weight
6.9 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Easy to install – four slotted anchor holes to simplify positioning
- No drilling, welding or anchoring required – clamp modular baseplates around a steel beam without fastening directly to it
- Engineering and calculation service available – your local Hilti Engineers can provide advice and calculation services on more complex projects
- Corrosion resistance – hot-dip galvanized to help protect against moisture and chemical corrosion
Applications
- Assembling a sandwich clamp around structural steel for fastening MT baseplates (threaded rod required)
- Suitable for use in moderately corrosive environments
