MT-B-G WS NC Starter bracket

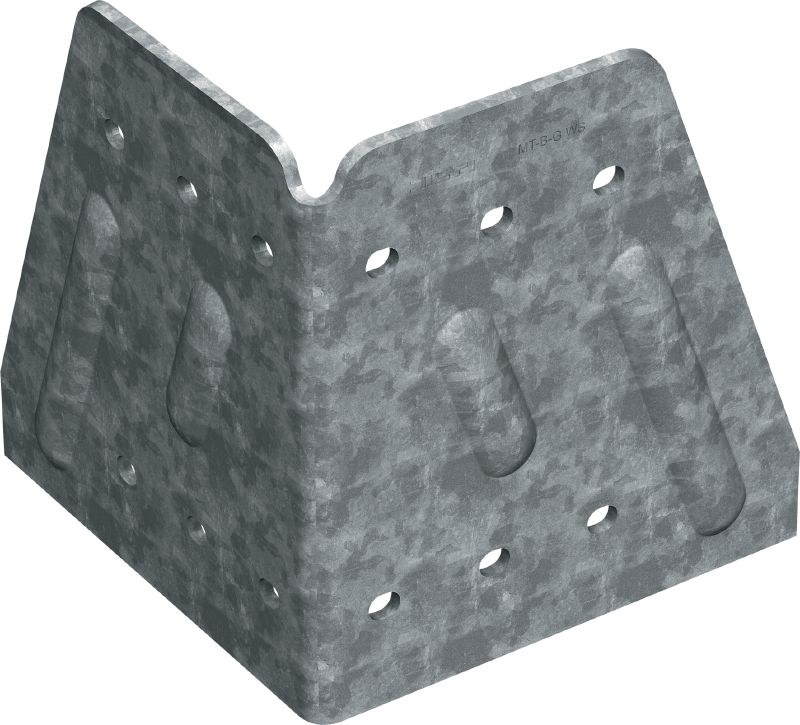

Starter bracket MT-B-G WS OC #2272109
Weldable starter bracket for fastening MT girders to steel, coated with zinc (ethyl) silicate primer
- Material composition: Q355 or better steel
- Surface finish: Zinc ethyl silicate coated
- Material thickness: 6 mm
Choose options
Pack size
- 4 pc
Quantity
Packs
Total Pieces
4
Discounted net
Technical Data
Material composition
Q355 or better steel
Surface finish
Zinc ethyl silicate coated
Material thickness
6 mm
Weight
4.34 kg
Documents
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Versatile – creates a post base connection at any location on structural steel
- Simplicity – one WS bracket can be used for all MT Box Profiles: MT-70, 80, 90 and 100
- Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and Smart 3D® are all available to streamline design and ordering
- Engineering and calculation service available – your local Hilti Engineers can provide advice and calculation services on more complex projects
Applications
- Creating base connectors for MT-70, MT-80, MT-90 and MT-100 girders on structural steel
