MGS 2 Baseplate (metric)

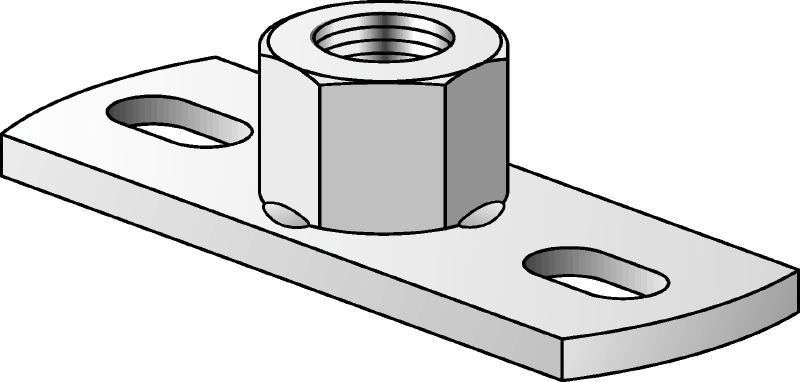

2-hole baseplate MGS 2-M10 #246913
Galvanized medium-duty baseplate to fasten metric threaded rods with two anchor points
- Thread connection - M: M10
- Height - H: 14 mm
- Maximum tensile load - F: 2.5 kN
Choose options
Thread connection - M
- M10
Height - H
- 14 mm
Maximum tensile load - F
- 2.5 kN
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
BD 20.51
BD 2.05 / 1 each
Technical Data
Thread connection - M
M10
Height - H
14 mm
Maximum tensile load - F
2.5 kN
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Number of holes
2
Weight
0.14 kg
Features & Applications
Features
- Supports the stable installation of threaded rod
- Quicker, easier installation with fewer parts
- Can be used in combination with metric threaded pipes
Applications
- Fastening medium-duty pipes to concrete with two fastening points
- Recommended for use in dry, interior environments
