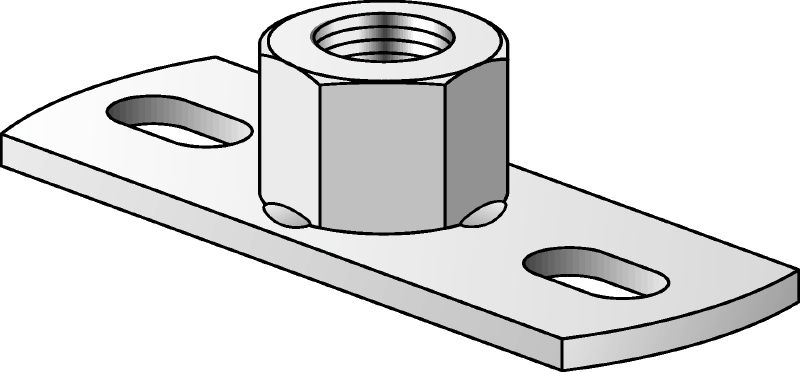

MGL 2 light-duty base plate
Galvanized light-duty base plate to fasten metric threaded rods with two anchor points
- Material composition: DD11 - DIN EN 10111
- Surface finish: Indoor Coated - Electro galvanized
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread connection - M
- M10
Height - H
- 13 mm
Maximum tensile load - F
- 2.2 kN
Pack size
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 10.25
Technical Data
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Number of holes
2
Features & Applications
Features
- Easy to install
- Secure fastening with 2 anchor points
Applications
- Fastening light-duty pipes to concrete with two fastening points
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
