Kit MW-EB L Cable lock with wire rope, eyebolt ending

Configurator
Technical Data
Documents
Features & Applications
Related Products
Kit MW-EB L Lock + wire rope eyebolt ending
Hilti_Still_Rendering_01 (211278)
MW L-hanger trapeze threaded end
MW busbar threaded end
MW busbar threaded end
MW ceiling panel threaded end
MW lighting threaded end

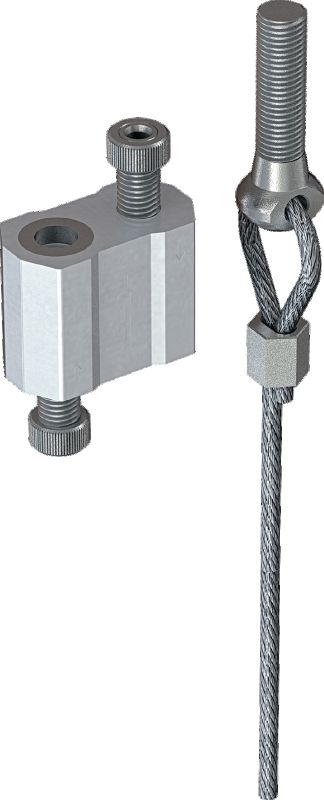

Wire rope with pre-mounted threaded eyebolt and adjustable lock for suspending fixtures from concrete and steel

  • Material composition: Wire: steel, Lock: aluminium, Stud: steel
  • Surface finish: Indoor Coated - Electro galvanized
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Diameter - D
  • 1.5 mm
  • 2 mm
  • 3 mm
  • 5 mm
Length - L
  • 1 m
  • 2 m
  • 3 m
  • 5 m
  • 10 m
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material composition
Wire: steel, Lock: aluminium, Stud: steel
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf Brochure_en_W4536Wire_Suspension_System_MW_en_2023 [ 2.5 MB ]

Features & Applications

Features

  • Shorter installation time – wire suspension kits give you a much faster alternative to threaded rod
  • Easier to adjust – self-closing wire lock can be adjusted tool-free, making levelling, retrofitting and long drop lengths much simpler
  • Aesthetic – wire rope suspension is a discreet installation method for exposed building services and open soffits
  • Versatile – you can use the same wire suspension kit for a wide range of fixtures and base materials, simplifying inventory management
  • Compatible with Hilti strut channels and MVA ventilation hardware – you can get solutions for virtually every MEP installation from one supplier

Applications

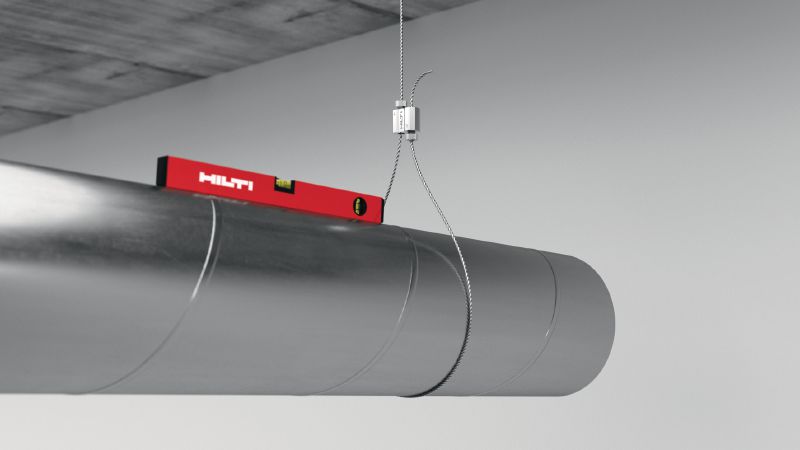

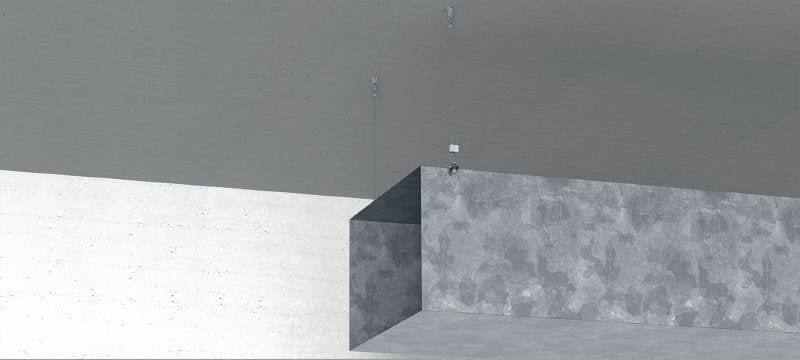

  • Suspending HVAC fixtures, including spiral and rectangular ductwork, air conditioning and plenum boxes from concrete or steel
  • Lateral bracing

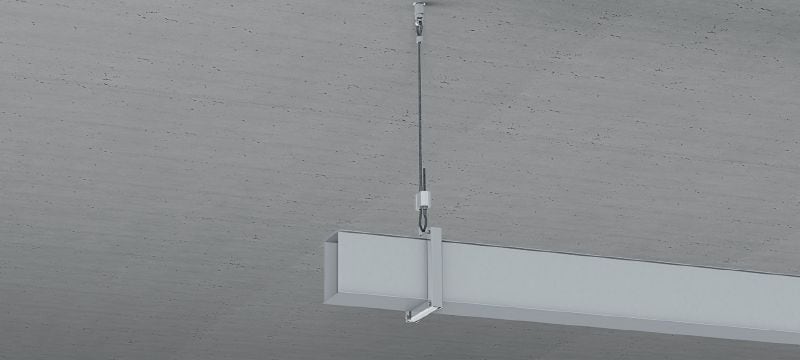

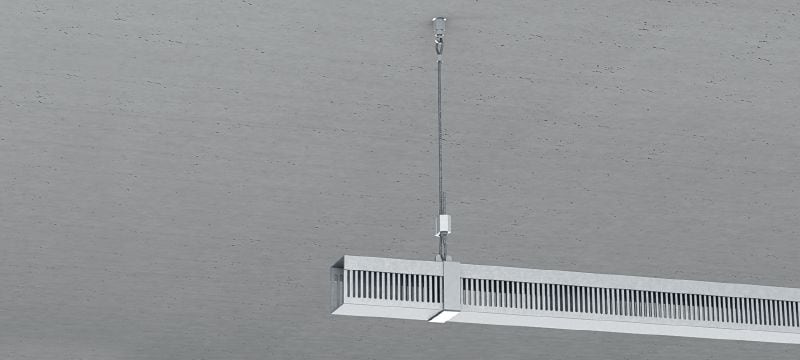

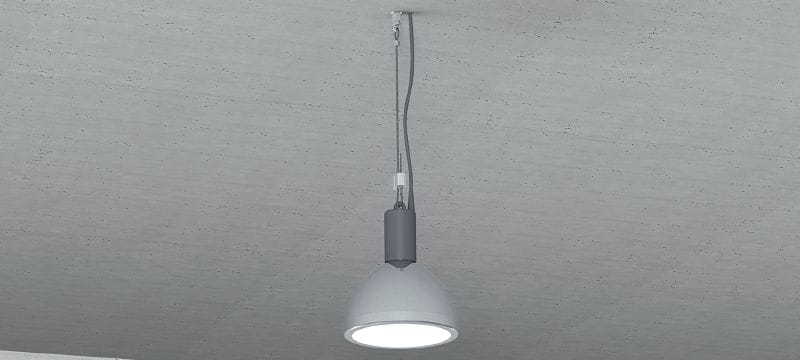

  • Suspending electrical fixtures from concrete or steel – including cable trays, cable baskets, busbars or lighting

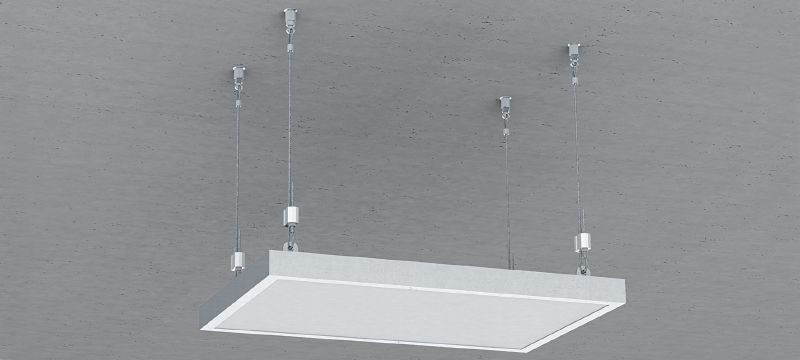

  • Suspending architectural elements from concrete or steel – including acoustic, heating and cooling panels, as well as overhead grids
  • Suitable for use in dry, indoor environments only

For approval or certificate information, please see individual items.
