DSH 600-X Gas cut-off saw (300mm)

Hand-held gas saw DSH 600-X #2275172

Configurator
Technical Data
Features & Applications
Related Products

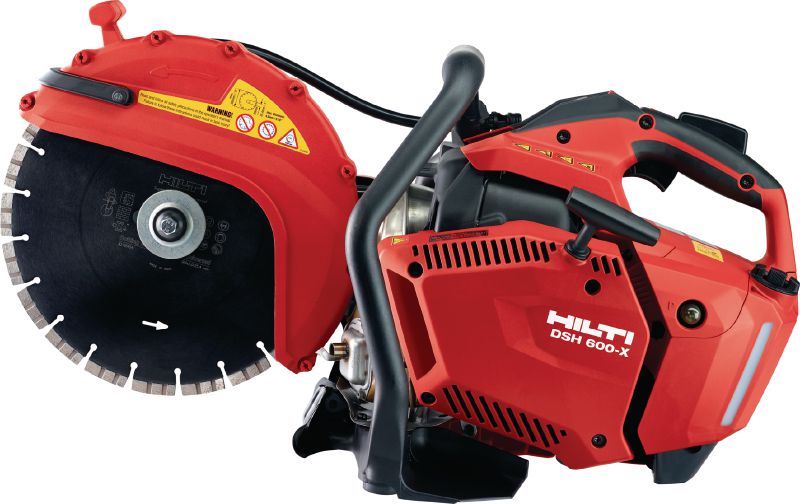

DSH 600-X, r5470074, r9529168

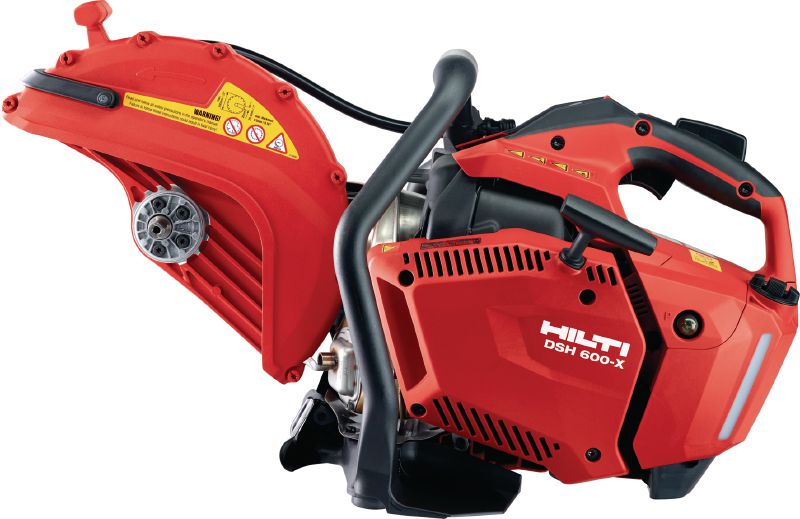

DSH 600-X

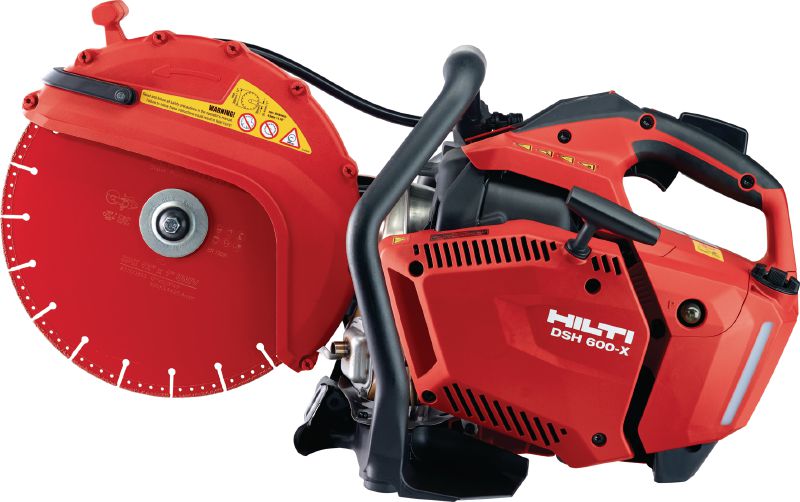

DSH 600-X

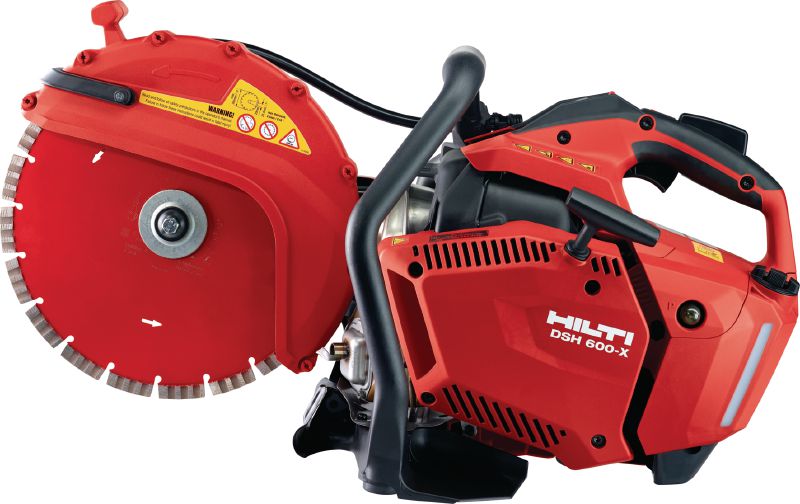

DSH 600-X

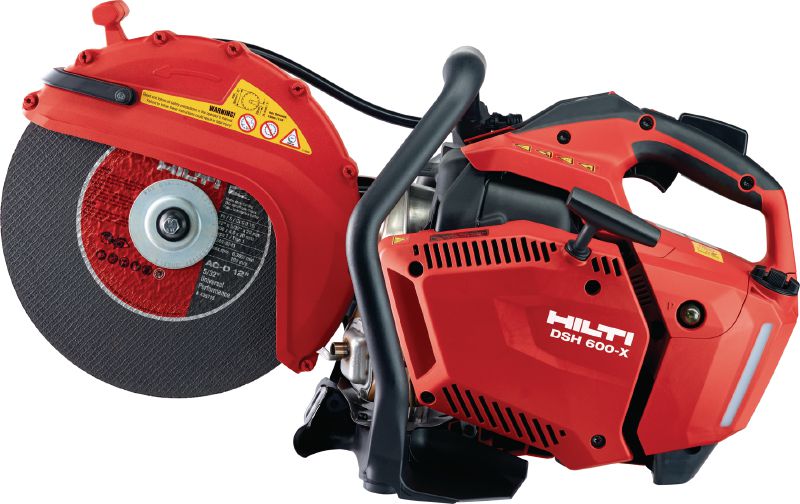

DSH 600-X
DSH 600-X

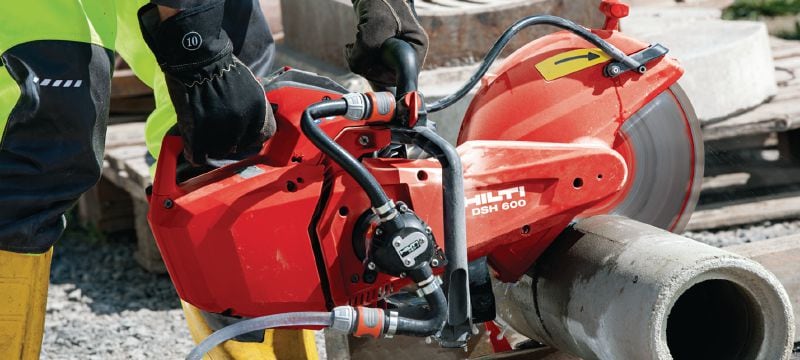

Cutting concrete pipes with water pump

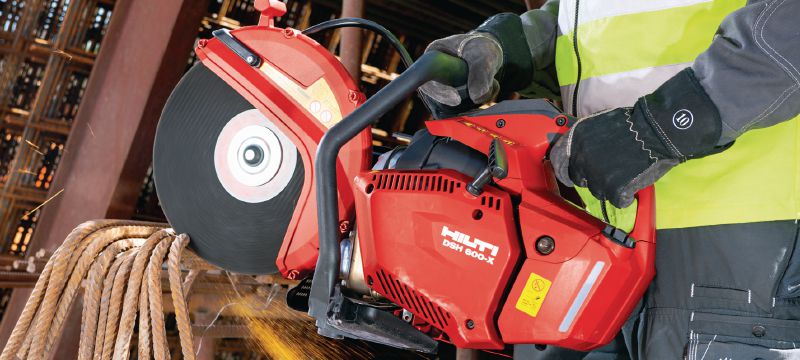

Cutting rebar

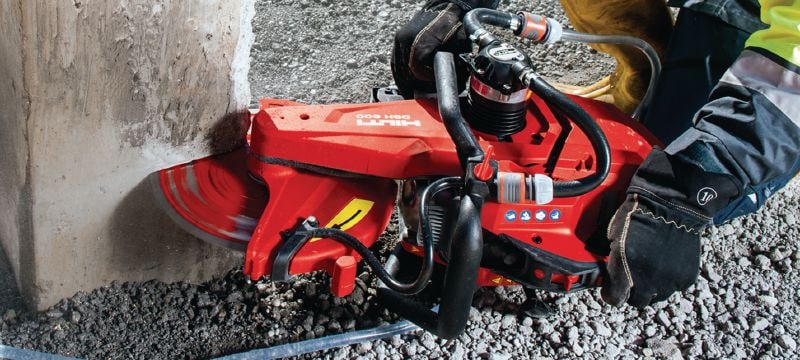

Cutting concrete piles with water pump

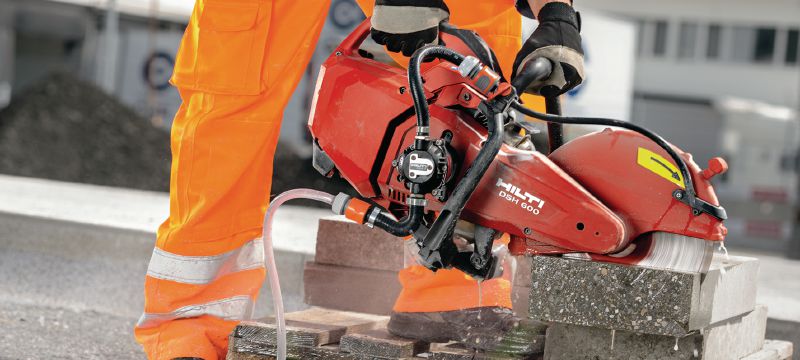

Cutting kerb stones wet with water pump DSH-P

Compact top-handle gas saw (63cc) with blade brake, for cutting up to 120 mm with 300 mm blades in concrete, masonry, and metal

  • Rated power: 3.2 kW
  • Wet or dry operation: Wet and Dry
  • Dimensions (LxWxH): 558 x 326 x 370 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Rated power
3.2 kW
Wet or dry operation
Wet and Dry
Dimensions (LxWxH)
558 x 326 x 370 mm
Fuel mixture
50:1 (2% oil)
A-weighted emission sound pressure level
102 dB (A) 1
Disc diameter
300 mm
Cutting depth
120 mm
Triaxial vibration value for cutting concrete slab (ah)
2.5 m/s² 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Top-handle design for even more compactness and light weight
  • Fast blade stop – the blade stops in less than 10 seconds
  • Cutting depth up to 120 mm with 300 mm blades
  • Achieve even higher cutting speeds by using with customized Hilti blades
  • Pre-tensioned belt – no belt maintenance required by the user

Applications

  • Laying paving – cutting curbstones and paving slabs to size
  • Masonry work – cutting bricks and blocks to size
  • Metalwork – cutting steel profiles, pipes and steel sheets
  • Construction work – cutting out openings in brick or concrete walls
  • Sewage work – cutting where working space is limited
