DC-SE 20 Wall chaser

5524.tif
12392.tif
5525.tif

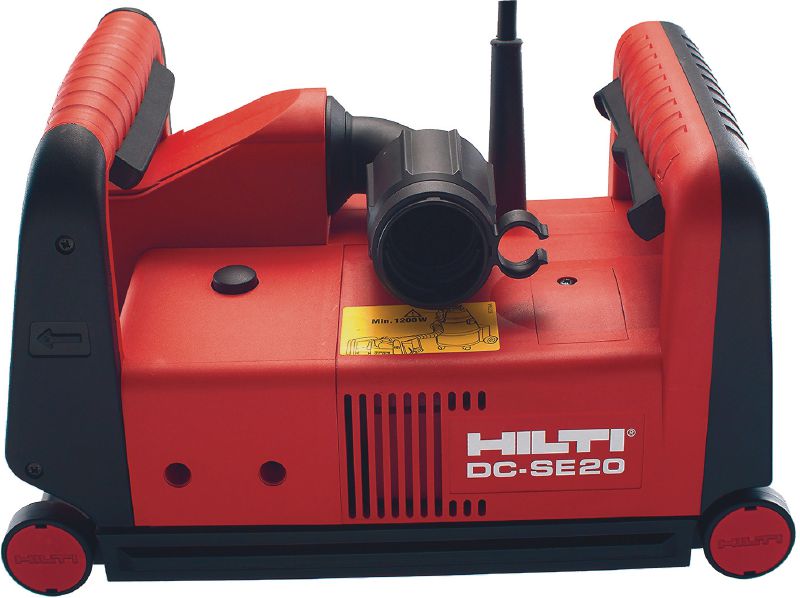

DC-SE 20

Diamond slitting machine for chasing cable, conduit and pipe installations into walls

  • Max. cutting width: 46 mm
  • Disc diameter: 125 mm
  • Weight according to EPTA-Procedure 01/2003 without battery: 6.9 kg

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
BD 2,816.15
BD 2,816.15
/
1 each

Technical Data

Max. cutting width
46 mm
Disc diameter
125 mm
Weight according to EPTA-Procedure 01/2003 without battery
6.9 kg
No load RPM
gear 1: 7500 rpm
Arbor size
22.2 mm
A-weighted emission sound pressure level
104 dB (A) 1
Triaxial vibration value for cutting concrete slab (ah)
5.8 m/s² 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Dedicated slitting system – purpose-built wall chaser for fast slitting and high productivity
  • Achieve slitting depths up to 40 mm and groove widths up to 46 mm with 125 mm slitting discs
  • Robust design and motor for long lifetime
  • Ergonomic handle design – for a more secure, comfortable grip when working in any position
  • Virtually dust-free when used with a compatible Hilti vacuum cleaner

Applications

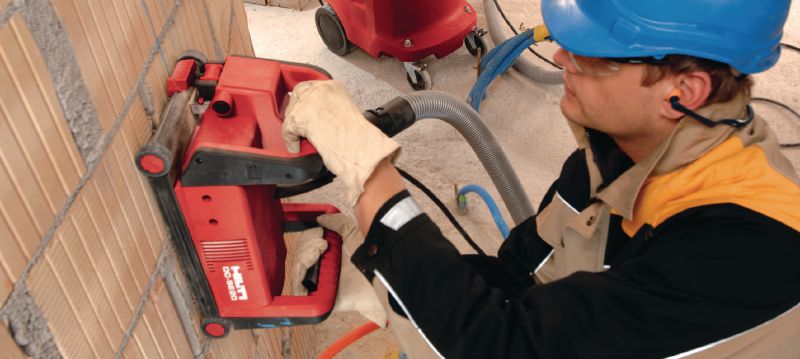

  • Equipped with Ø 125 mm discs, the wall chaser can slit up to 40 mm depths and 46 mm widths in all widely used construction materials, such as concrete, flint, hard stone, etc.
  • In-wall installation of pipes and tubes

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • After no-cost period repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
  • After no-cost period repair costs are capped for as long as we service the tool
  • After every repair again 3-month no-repair-cost period
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
