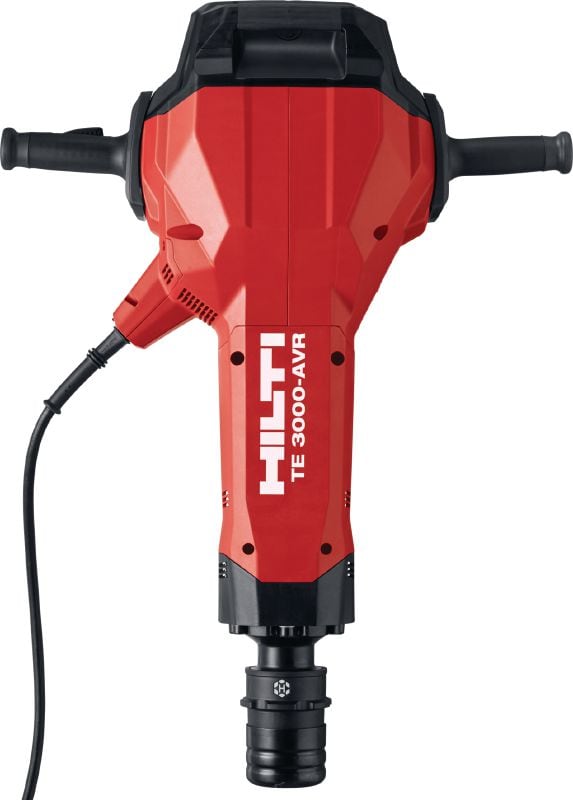

TE 3000-AVR TE-H heavy-duty electric jackhammer

Name: TE 3000-AVR TE-H heavy-duty electric jackhammer
Brand: Hilti
SKU: r11668382

Breaker TE 3000-AVR 230V #2229064

Exceptionally powerful breaker for heavy-duty concrete demolition, asphalt cutting, earthwork and driving ground rods

Customers also searched for demolition hammer, concrete hammer, concrete breaker, jackhammer or electric jackhammer.

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Working direction

Floor

Tool chuck type

TE-H (Hilti HEX 28)

Weight according to EPTA-Procedure 01/2003 without battery

27.1 kg

Single impact energy

85 J

Full hammering frequency

858 impacts/minute

Max. chiseling performance

60000 cm³/min

Dimensions (LxWxH)

820 x 588 x 218 mm

Triaxial vibration for chiseling into concrete

6.3 m/s² ¹

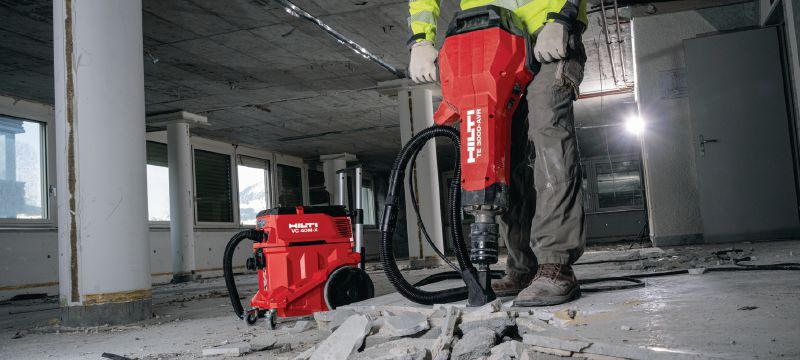

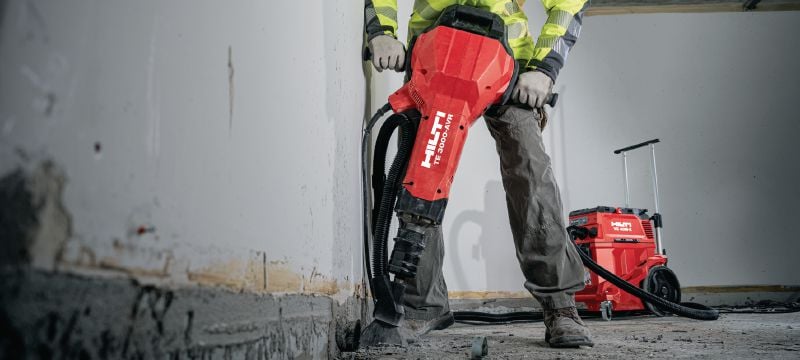

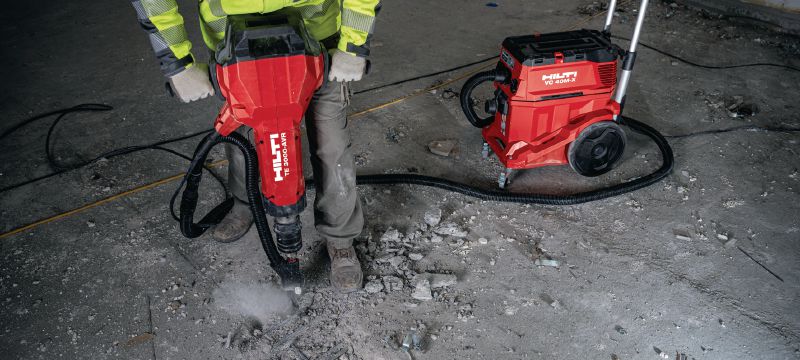

Dust removal system available

TE DRS-H

A-weighted emission sound pressure level

98 dB (A) ²

Rated input power

2100 W

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Upgraded performance – the TE 3000 now delivers demolition power comparable to 45 kg air-powered breakers
Improved handling – 10% weight reduction and new top handle make the jackhammer easier to control and transport
Active Vibration Reduction (AVR) – vibration-damped jackhammer with two fully decoupled handles and -10% lower vibration than previous TE 3000 models
Redesigned quick change chuck – takes new Hilti TE-H chisels
Virtually maintenance-free brushless motor and triple-chamber lubrication systems for less downtime and longer lifetime

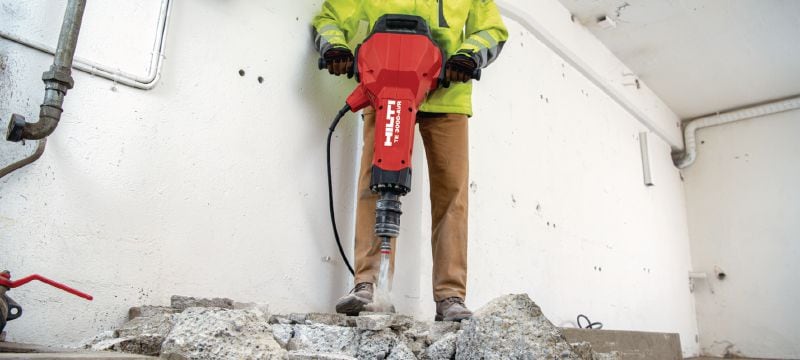

Demolishing reinforced concrete slabs and foundations
Breaking/cutting asphalt in civil road construction, pipe laying and pavement repair
Removing concrete for structural restoration, slab extensions, rebar reinforcement and repair
Digging, trenching and tamping in rocky, hard clay and other dense earthwork
Setting ground rods in hard soils for a safer, ladder-free installation of earthing rods (optional TE-H PD Power Driver required)
