TE 700-AVR SDS-Max demolition hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
48739.tif
48742.tif

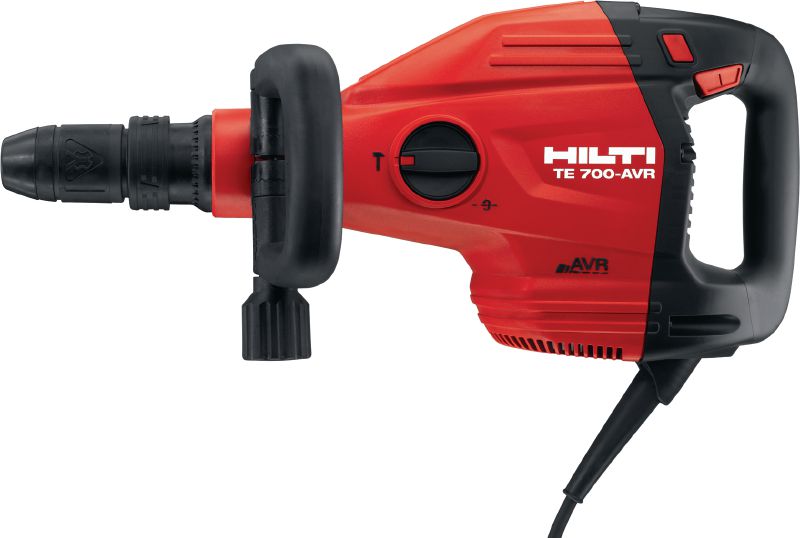

TE 700
48743.tif

Powerful SDS Max (TE-Y) demolition hammer for heavy-duty chiseling in concrete and masonry, with Active Vibration Reduction (AVR)

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS Max)
  • Weight according to EPTA-Procedure 01/2003 without battery: 7.9 kg

Customers also searched for chipper , chipping hammer , hilti chipping hammer , chipping hammer concrete or chipping tool .

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From BD 620.01

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS Max)
Weight according to EPTA-Procedure 01/2003 without battery
7.9 kg
Single impact energy
11.5 J
Full hammering frequency
2760 impacts/minute
Max. chiseling performance
1200 cm³/min
Dimensions (LxWxH)
564 x 125 x 248 mm
Triaxial vibration for chiseling into concrete
6.9 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
89 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (AR) [ 926.7 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 735.1 KB ]

Features & Applications

Features

  • Optimized performance to weight ratio for high productivity during wall demolition applications
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • The innovative brushless SR motor eliminates the need to change carbon brushes and extends the period between repairs
  • Power reduction button for improved performance on brittle materials

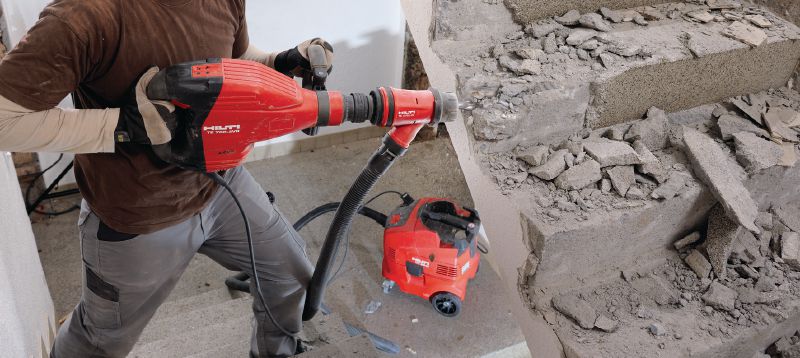

  • The optional DRS-B dust removal system collects up to 95% of dust

Applications

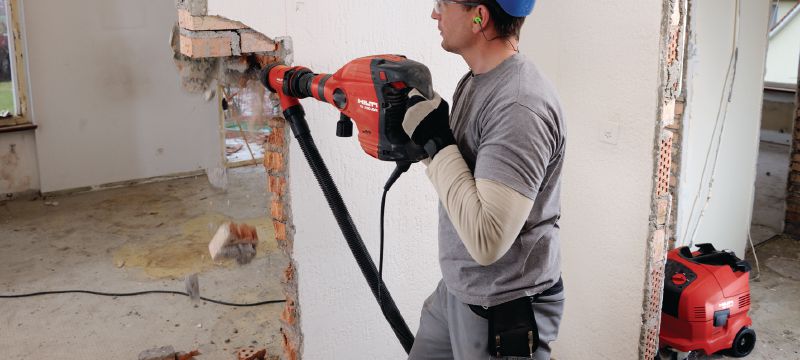

  • Heavy demolition on masonry and brick walls
  • Removing plaster
  • Removing tiles on walls and floors

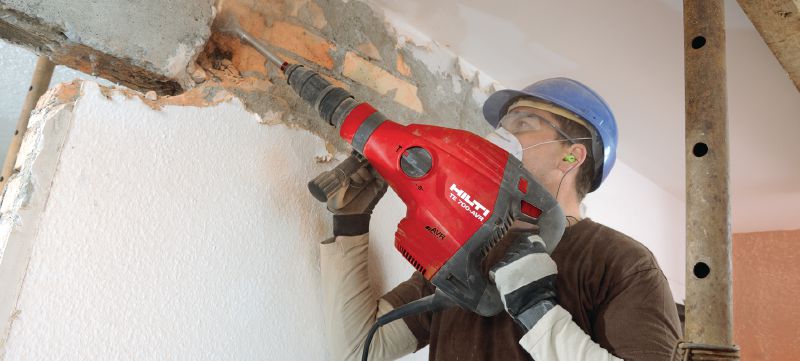

  • Breaking out window and door openings
  • Bushing applications (i.e. roughening surfaces)

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • After no-cost period repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
More information about Tool Services

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
  • After no-cost period repair costs are capped for as long as we service the tool
  • After every paid repair again 3-month no-repair-cost period
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
