TE 500 SDS-Max chipping hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
TE 500 (Gen 03)

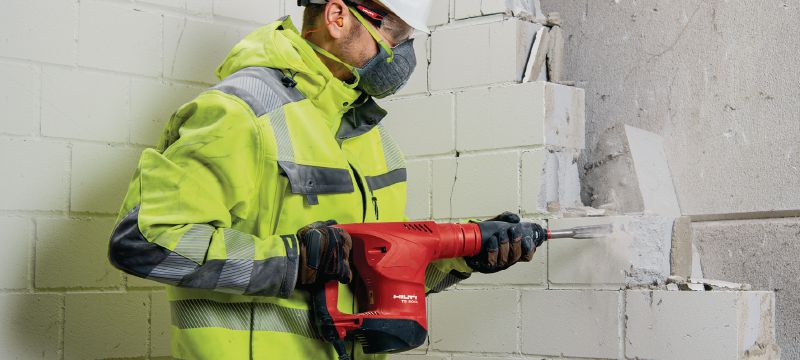

TE 500 (03) chiseling on soft-brick wall
TE 500 (03) chiseling on soft-brick wall

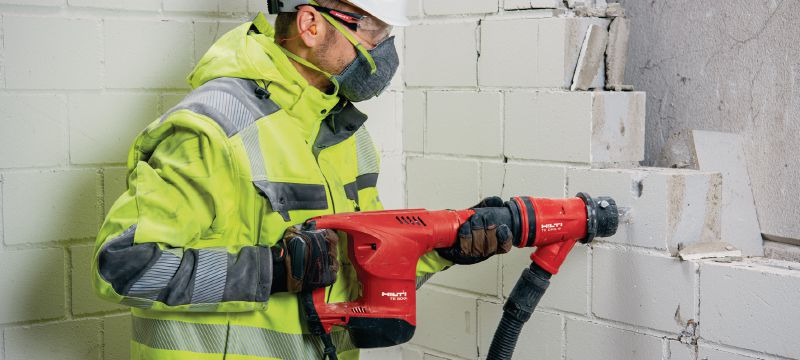

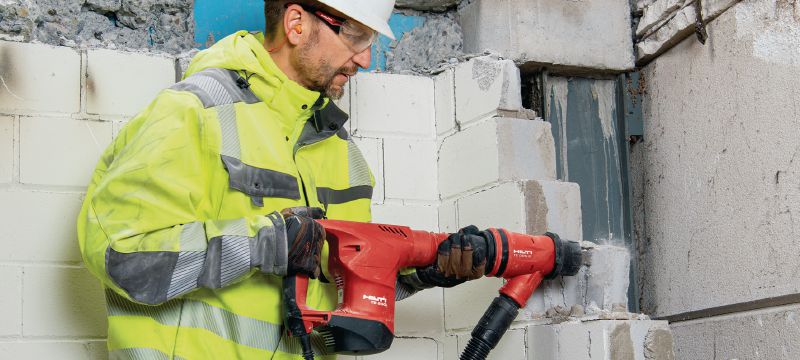

TE 500 (03) chiseling on soft-brick wall using TE DRS-B
TE 500 (03) chiseling on soft-brick wall using TE DRS-B

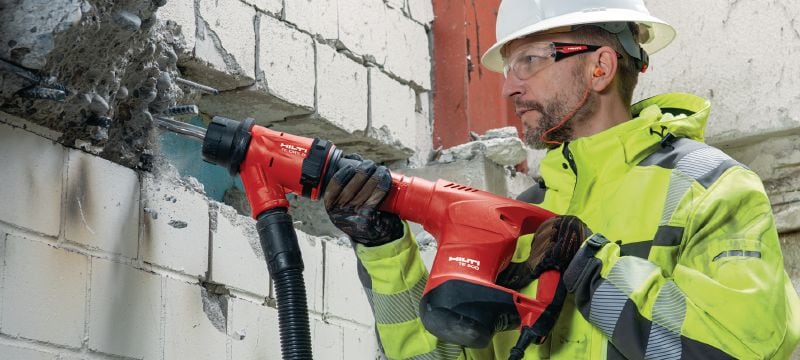

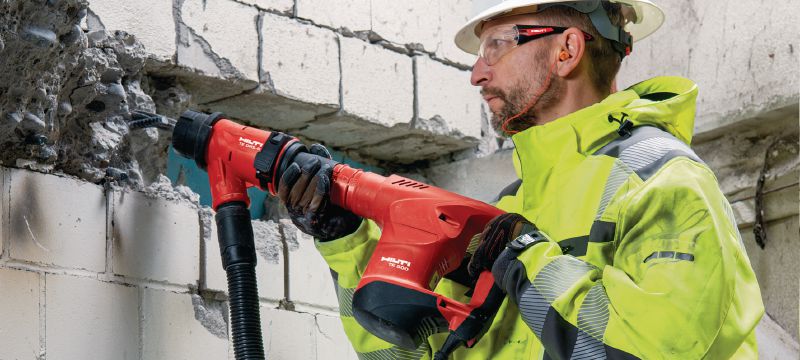

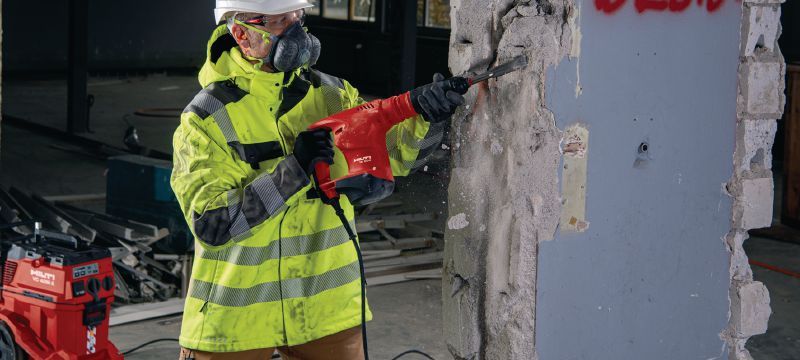

TE 500 (03) chipping out concrete-layer from a wall

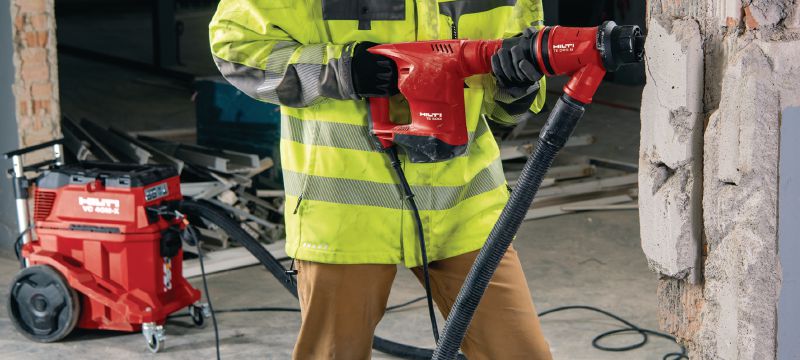

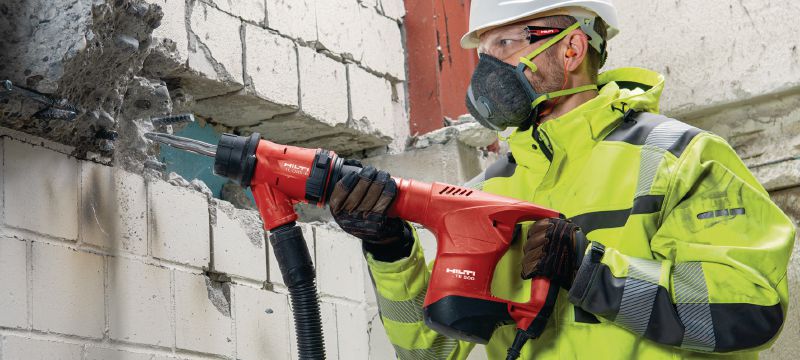

TE 500 (03) chipping out concrete-layer from a wall using TE DRS-B
TE 500 (03) chipping out concrete-layer from a wall using TE DRS-B
TE 500 (03) chipping out concrete-layer from a wall using TE DRS-B
TE 500 (03) removing plaster from brickwall using TE DRS-B
TE 500 (03) removing plaster from brickwall

Robust SDS Max (TE-Y) demolition hammer for light-duty chiseling in concrete and masonry

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS Max)
  • Weight according to EPTA-Procedure 01/2003 without battery: 4.9 kg

Customers also searched for demolition hammer, SDS-Max demolition hammer, demo hammer or concrete breaker.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From BD 877.10

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS Max)
Weight according to EPTA-Procedure 01/2003 without battery
4.9 kg
Single impact energy
7.1 J
Full hammering frequency
3228 impacts/minute
Max. chiseling performance
850 cm³/min
Dimensions (LxWxH)
419 x 105 x 240 mm
Triaxial vibration for chiseling into concrete
13.5 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
92 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (AR) [ 926.7 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 735.1 KB ]

Features & Applications

Features

  • Robust tool with extra protection against heat and dust – prolonging the lifetime and lowering repair costs
  • Low weight and compact design for easy handling
  • Great performance to weight ratio – so you get a powerful breaker which is much less tiring to use
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite
  • Optional DRS-B dust removal system collects up to 95% of dust

Applications

  • Chiseling on concrete and masonry walls
  • Creating channels in concrete and masonry to install pipes and cables
  • Light chipping and tile removal
  • Enlarging breaches
  • Light-duty wall demolition

For approval or certificate information, please see individual items.
